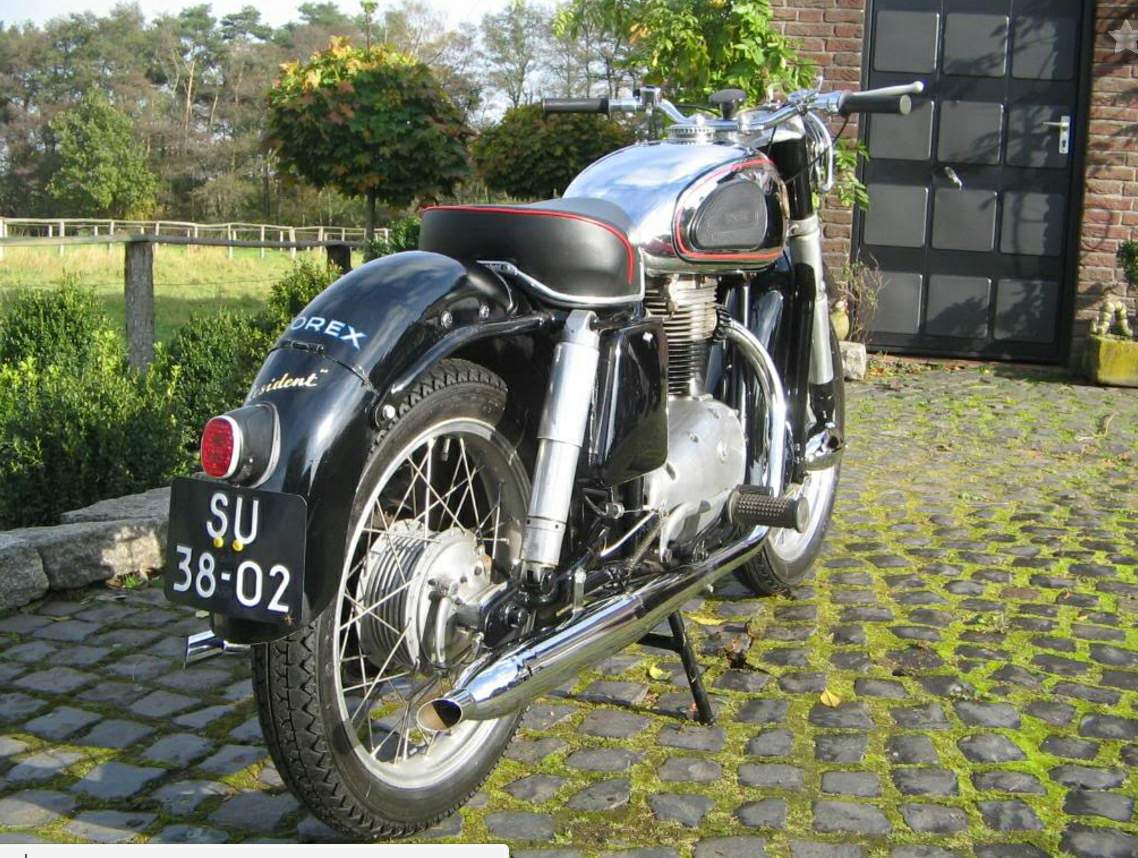

1956 Horex Resident 350 technical specifications

Horex Resident 350 technical specifications

Technical specifications

Model: Resident 350
Years: 1956 - 58
Engine: Four stroke, single cylinder.
Capacity: 350 cc / 20.8 cu-in
Bore x Stroke: 77 x 75 mm
Cooling System: Air cooled
Compression Ratio: 7.1;1
Induction: Carburetor
Ignition : 6 Volt
Starting: Kick
Max Power: 17,5 kW / 24 hp @ 6250 rpm
Transmission : 4 Speed
Final Drive: Chain
Front Suspension: Hydraulic telescopic forks
Rear Suspension: Dual shocks
Front Brakes: 150mm Drum
Rear Brakes: 150mm Drum
Front Tyre: 3.50 -18
Rear Tyre: 3.50 -18
Seat Height: 760 mm / 29.9 in
Dry Weight: 145 Kg / 319.7 lbs
Fuel Capacity : 16 Litres / 4.2 US gal
