Ducati Panigale V4 R (2026) technical specifications

Ducati Panigale V4 R is produced in 2026. Engine is Four stroke, Desmosedici Stradale 90? V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 160.4 kW / 218 hp @ 15750 rpm and 114.5 Nm / 84 lb-ft @ 12000 rpm. Ducati Panigale V4 R wet weight is 186.5 kg / 411.2 lbs. Ducati Panigale V4 R has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Panigale V4 R
Years:	2026
Engine:	Four stroke, Desmosedici Stradale 90? V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder
Capacity:	998 cc / 60.9 cu-in
Bore x Stroke:	81 x 48.4 mm
Compression Ratio:	14.0:1
Cooling System:	Liquid cooled
Induction:	Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies with aerodynamic valves. Variable length intake system
Emission:	Euro 5
Exhaust:	4-2-1-2 system, with 2 catalytic converters and 4 lambda probes
Starting:	Electric
Max Power:	160.4 kW / 218 hp @ 15750 rpm
Max Power with Akrapovič:	175 kW / 235 hp @ 15750 rpm
Max Power with Akrapovič and Shell Advance oil:	178 kW / 239 hp @ 15750 rpm
Max Torque:	114.5 Nm / 84 lb-ft @ 12000 rpm
Max Torque with Akrapovič:	118 Nm / 87 lb-ft @ 12250 rpm
Clutch:	Hydraulically controlled slipper dry clutch. Self bleeding master cylinder.
Transmission:	Six-speed with Ducati Quick Shift (DQS) up/down EVO 2
Primary Drive:	Straight cut gears; Ratio 1.80:1
Final drive:	Chain 520; Front sprocket 16; Rear sprocket 43
Gear Ratio:	1st = 36/15, 2nd = 34/17, 3rd = 33/19, 4th = 32/21, 5th = 30/22, 6th = 27/22
Frame:	Aluminum alloy ?Front Frame? with optimized stiffnesses
Front Suspension:	43 mm Fully adjustable ?hlins NPX pressurized fork with TiN treatment
Front Wheel Travel:	125 mm / 4.9 in
Rear Suspension:	Fully adjustable ?hlins TTX 36 unit with hydraulic spring preload adjuster
Rear Wheel travel:	130 mm / 5.1 in

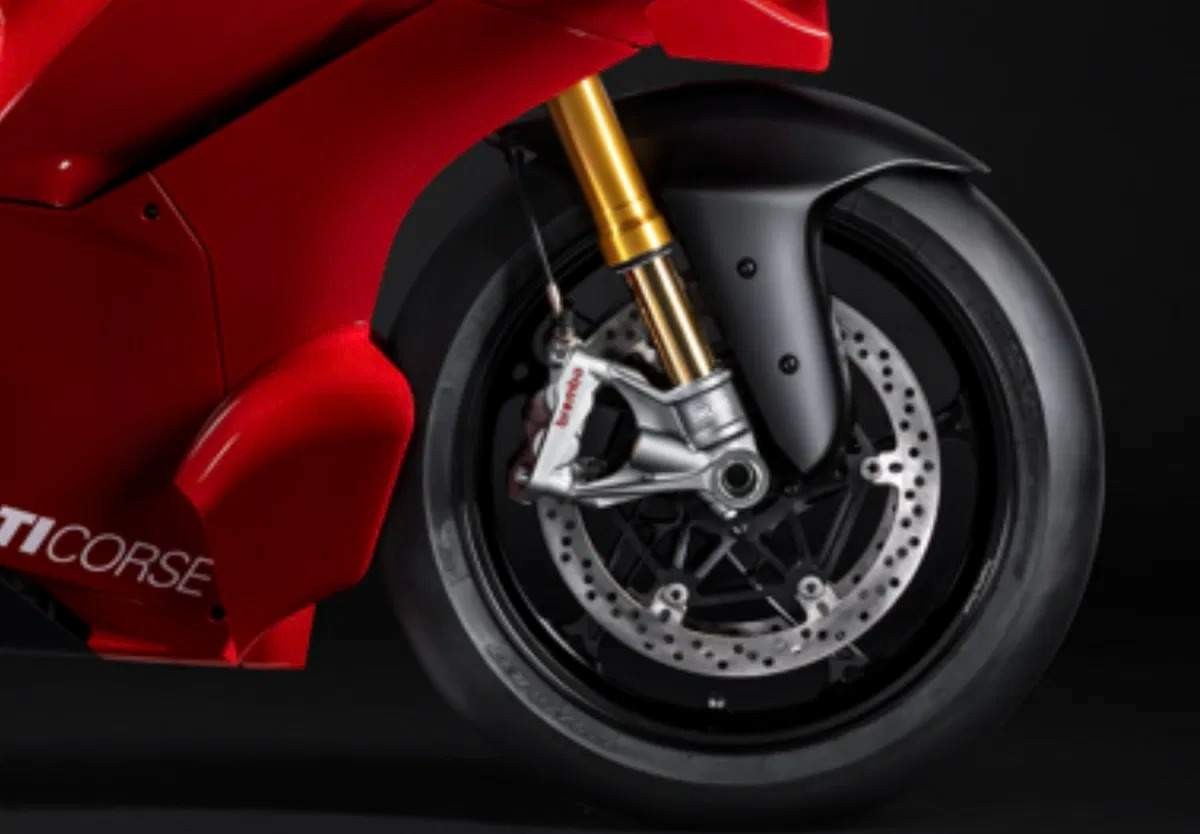

Front Brakes:	2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Hypure, 4-piston calipers. Self bleeding master cylinder
Rear Brakes:	Single 245 mm disc, 2-piston caliper
ABS:	Cornering ABS with eCBS
Front Wheel:	3.50 x 17 in, 5-spoke aluminium alloy
Rear Wheel:	6.00 x 17 in, 5-spoke aluminium alloy
Front Tyre:	120/70 ZR17, Pirelli Diablo Supercorsa SP-V4
Rear Tyre:	200/60 ZR17, Pirelli Diablo Supercorsa SP-V4
Rake:	24,5?
Trail:	100 mm / 3.9 in
Wheelbase:	1471 mm / 57.9 in
Seat Height:	850 mm / 33.4 Single seat
Wet Weight:	186.5 kg / 411.2 lbs
Fuel Capacity:	17 Litres / 4.49 US gal
Instruments:	Last generation digital unit with 5in TFT colour display
Seats:	Single seat
Safety Equipment:	Riding Modes, Power Modes, Bosch Cornering ABS, Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) DVO, Auto tyre calibration, Race brake control, Road eCBS

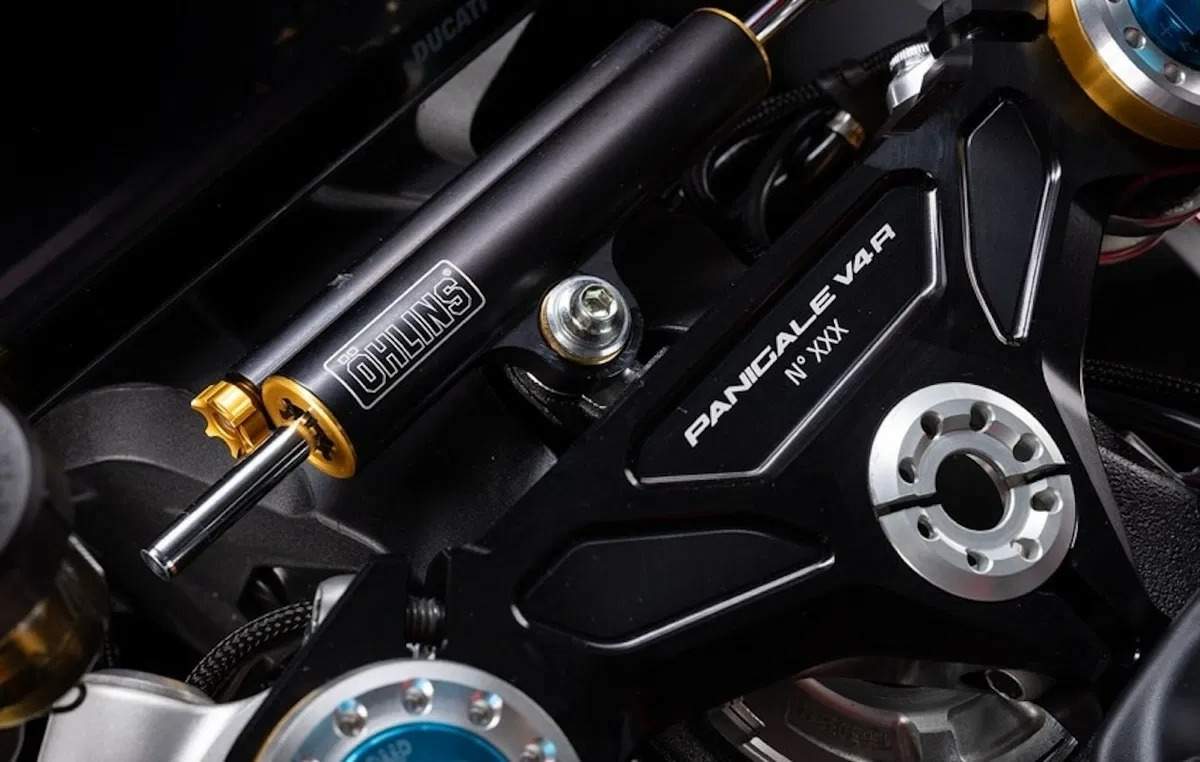

Standard Equipment:	?hlins suspension, Lithium-ion battery, Quick adjustment buttons, Forged aluminium wheels, Coming home, Single seat configuration, Ducati Power Launch (DPL DVO, TFT colour display, Full LED lighting system,Full LED headlight, Daytime Running Light (DRL), Self cancelling turning indicators, Lap Timer, Pit Limiter, Rear suspension rod with adjustable length, Ducati Racing Gearbox (DRG) with Ducati Neutral Lock (DNL), Ducati Quick Shift (DQS) up/down 2.0, Billet aluminium steering stem with bike number, ?hlins SD20 steering damper.
