Bimota DB5S (2011) technical specifications

Bimota DB5S technical specifications

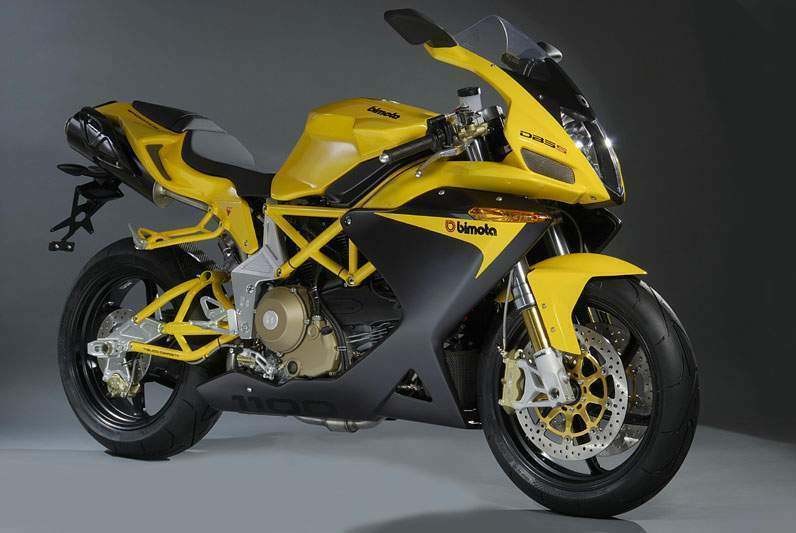

Bimota DB5S is produced in 2011. Engine is Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 2 valves per cylinder, displacement 1078 cc / 65.8 in. , produces power 69.3 kW / 95 hp @ 7050 rpm and 103 Nm / 10.5 kgf-m / 76 lb-ft. @ 5500 rpm. Bimota DB5S has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: DB5S
Years: 2011
Engine: Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 2 valves per cylinder
Capacity: 1078 cc / 65.8 in.
Bore x Stroke: 98 x 71.5 mm
Compression Ratio: 10.5:1
Cooling System: Air / oil cooled
Induction: Electronic fuel injection - 45 mm throttle body
Ignition: Magneti Marelli electronic
Starting: Electric
Max Power: 69.3 kW / 95 hp @ 7050 rpm
Max Torque: 103 Nm / 10.5 kgf-m / 76 lb-ft. @ 5500 rpm
Transmission: 6 Speed
Final Drive: Chain
Lubrication: Wet sump
Exhaust: 2 in 1 in 2
Frame: 25/20mm tubular chrome molybdenum steel trellis with lateral plates in aircraft alloy. 35/25/15mm tubular chrome molybdenum steel trellis with lateral plates in aircraft alloy rear.
Front Suspension: 43mm UD Öhlins TIN Coated Fork, fully adjustable Pre-load, Compression, Rebound, 120mm wheel travel.
Rear Suspension: Öhlins Monoshock, fully adjustable Pre-load - External Hydraulic Device, Compression, Rebound
Front Brakes: 2x 298mm discs 4 piston calipers
Rear Brakes: Single 220mm disc 2 piston caliper
Front Tyre: 120/90ZR -17
Rear Tyre: 180/55ZR -17
Dimensions: Length 2045 mm / 80.5 in. Width 750 mm / 29.5 in. Height 1230 mm / 48.4 in.
Seat height: 810 mm / 31.9 in.
Wheelbase: 1425 mm / 56.1 in.
Weight: 189 kg / 416.7 lbs
Fuel Capacity: 17 Litres / 4.5 US gal.
