Yamaha YZF1000 R1 (2004) technical specifications

Yamaha YZF1000 R1 technical specifications

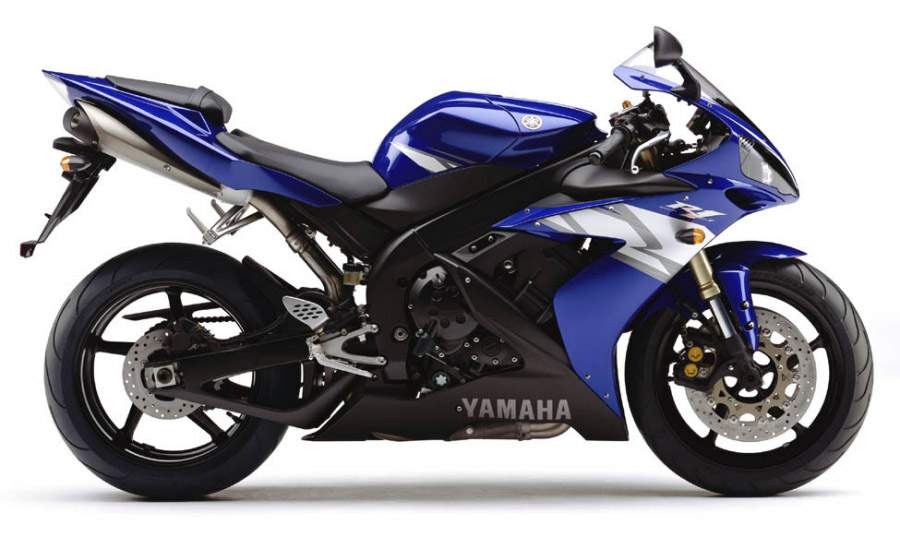

Yamaha YZF1000 R1 is produced in 2004. Engine is Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder., displacement 998 cc / 60.9 cu-in , produces power 171.3 hp / 126 kW @ 12500 rpm and 107 Nm / 10.91 kg-m @ 10500 rpm. Yamaha YZF1000 R1 top speed is 296.1 km/h / 184 mph. Yamaha YZF1000 R1 weighs 172 kg / 379 lbs. Yamaha YZF1000 R1 has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: YZF1000 R1
Years: 2004
Engine: Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder.
Capacity: 998 cc / 60.9 cu-in
Bore x Stroke: 77 X 53.6 mm
Compression Ratio: 12.1:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Engine Oil: Synthetic, 10W/40
Exhaust: Alloy muffler
Induction: Fuel injection, dual-valve throttle bodies with motor-driven secondary valves, 45 mm throttle body
Ignition: TCI (Transistor Controlled Ignition)
Spark Plug: NGK, CR9EK
Starting: Electric
Max Power: 171.3 hp / 126 kW @ 12500 rpm
Max Torque: 107 Nm / 10.91 kg-m @ 10500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: #530 O-ring chain
Frame: Deltabox V aluminium aluminium, twin spar
Front Suspension: 43mm Kayaba inverted telescopic forks, preload, compression and rebound damping adjustable.
Rear Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Truss-type Aluminium swinging arm Monocross, preload, compression and rebound damping adjustable.
Front Brakes: 2 x 320mm discs 4 piston calipers
Rear Brakes: Single 220mm disc 4 piston caliper
Rim Front: 3.50-17
Rim Rear: 6.00-17
Front Tyre: 120/70 ZR17
Rear Tyre: 190/50 ZR17
Rake: 24°
Trail: 91 mm / 3.8 in
Dimensions: Length 2050 mm / 80.8 in Width 720 mm / 28.3 in Height 1105 mm / 43.5 in
Wheelbase: 1395 mm / 54.9 in
Ground Clearance: 135 mm / 5.3 in
Seat Height: 833 mm / 32.3 in
Dry Weight: 172 kg / 379 lbs
Wet Weight: 185 kg / 407.8 lbs
Fuel Capacity: 18 Litres / 4.7 gal
Consumption Average: 17.8 km/lit
Standing ¼ Mile: 10.7 sec / 145..3 mph
Standing 0-60 mph / 0-100 mph: 3.1 sec /5.6 sec
Top Speed: 296.1 km/h / 184 mph
