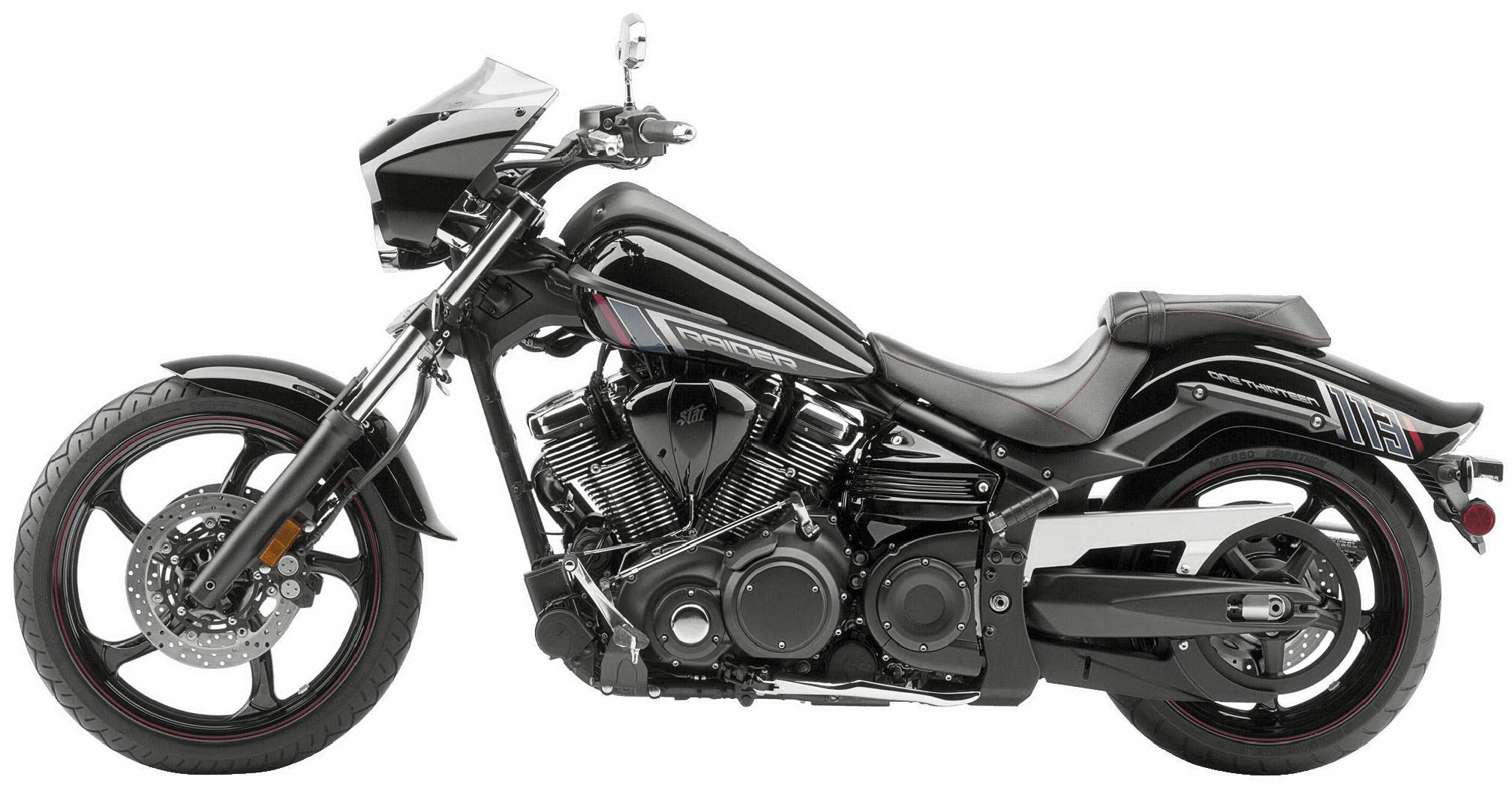

Yamaha XV 1900 Raider SE (2015) technical specifications

Yamaha XV 1900 Raider SE technical specifications

Yamaha XV 1900 Raider SE is produced in 2015. Engine is Four stroke, 48° V-Twin cylinder, SOHC, 4 valves per cylinder., displacement 1854 cc / 113 cu-in , produces power 73,6 kW / 100 hp @ 4.250 rpm and 167,8 Nm / 17,1 kgf-m @ 2.500 rpm. Yamaha XV 1900 Raider SE weighs 332 kg / 732 lbs. Yamaha XV 1900 Raider SE has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XV 1900 Raider SE
Years: 2015
Engine: Four stroke, 48° V-Twin cylinder, SOHC, 4 valves per cylinder.
Capacity: 1854 cc / 113 cu-in
Bore x Stroke: 100 x 118 mm
Cooling System: Air cooled
Compression Ratio: 9.5;1
Lubrication: Dry sump
Induction: Dual 43mm cross bore downdraft throttle body FI
Ignition: Electronic control unit (ECU)
Starting: Electric
Max Power: 73,6 kW / 100 hp @ 4.250 rpm
Max Torque: 167,8 Nm / 17,1 kgf-m @ 2.500 rpm
Transmission: 5 Speed
Final Drive: Belt
Frame: Double cradle
Front Suspension: 46 mm Telescopic fork
Front Wheel Travel: 320 mm / 5.1 in
Rear Suspension: Adjustable link Monocross
Rear Wheel Travel: 88.9 mm / 3.5 in
Front Brakes: 2x 298 mm discs
Rear Brakes: Single 310 mm disc
Front Tyre: 120/70-21
Rear Tyre: 210/40R18
Dimensions: Length 2570mm / 101.2 in Width 925 mm / 36.4 in Height 1165 mm / 45.9 in
Wheelbase: 1800 mm / 70.9 in
Seat Height: 695 mm / 27.4 in
Ground Clearance: 145 mm / 5.7 in
Dry Weight: 332 kg / 732 lbs
Fuel Capacity: 15.9 Litres / 4.2 US gal
