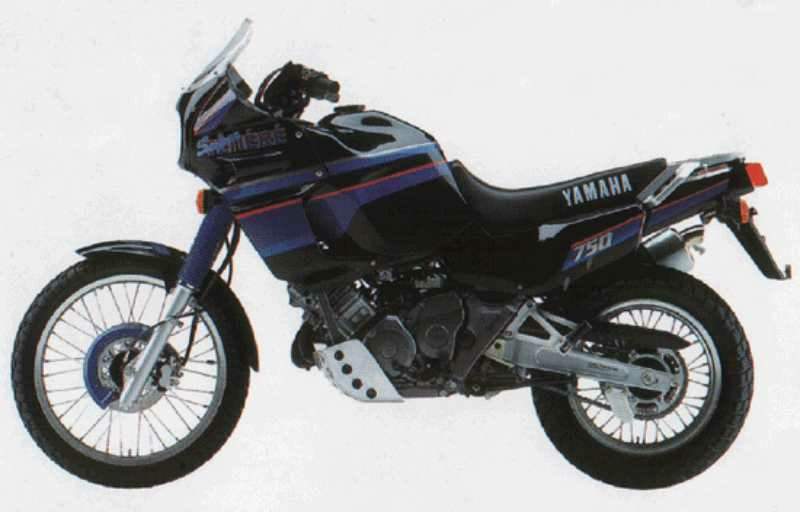

Yamaha XTZ 750 Super Ténéré (1992) technical specifications

Yamaha XTZ 750 Super Ténéré technical specifications

Yamaha XTZ 750 Super Ténéré is produced in 1992. Engine is Four -stroke, parallel twin cylinder, DOHC, 5 valves per cylinder, displacement 749 cc / 45.7 cu-in , produces power 69.3 hp / 54 kW @ 7500 rpm and 68 Nm / 50.2 lb-fts @ 6750 rpm. Yamaha XTZ 750 Super Ténéré top speed is 192.0 km/h / 119.3 mph. Yamaha XTZ 750 Super Ténéré weighs 203 kg / 447.5 lbs. Yamaha XTZ 750 Super Ténéré has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: XTZ 750 Super Ténéré
Years: 1992
Engine: Four -stroke, parallel twin cylinder, DOHC, 5 valves per cylinder
Capacity: 749 cc / 45.7 cu-in
Bore x Stroke: 87 x 63 mm
Cooling System: Liquid cooled,
Compression Ratio: 9.5:1
Lubrication: Wet sump
Engine Oil: 20W/40
Exhaust: Single stainless steel pipe
Induction: 2x 38mm Mikuni BDST38 CV carburetors
Ignition: TCI (Transistor Controlled Ignition)
Spark Plug: NGK, DPR8EA-9
Starting: Electric
Max Power: 69.3 hp / 54 kW @ 7500 rpm
Max Torque: 68 Nm / 50.2 lb-fts @ 6750 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 5 Speed
Final Drive: Chain
Frame: Steel, Single cradle frame
Front Suspension: Telescopic forks.
Front Wheel Travel: 235 mm / 9.2 in
Rear Suspension: Monoshock, adjustable preload compression damping adjustment
Rear Wheel Travel: 215 mm / 8.4 in
Front Brakes: 2x 245mm discs
Rear Brakes: Single 236mm disc
Front Tyre: 90/90-21
Rear Tyre: 140/80-17
Dimensions: Length 2285 mm / 90 in Width 815 mm / 32.1 in
Wheelbase: 1505 mm / 59.3 in
Seat Height: 865 mm / 34.1 in
Dry Weight: 203 kg / 447.5 lbs
Wet Weight: 236 kg / 520.3 lbs
Fuel Capacity: 26 Litres / 6.6 gal
Consumption Average: 16.5 km/lit
Braking 60 - 0 / 100 - 0: 14.25 m / 42.06 m
Standing ¼ Mile: 12.8 sec / 162.1 km/h
Top Speed: 192.0 km/h / 119.3 mph
Road Test: Bike Magazine Group Test 1992
