Yamaha XTZ 660 Ténéré (1997) technical specifications

Yamaha XTZ 660 Ténéré technical specifications

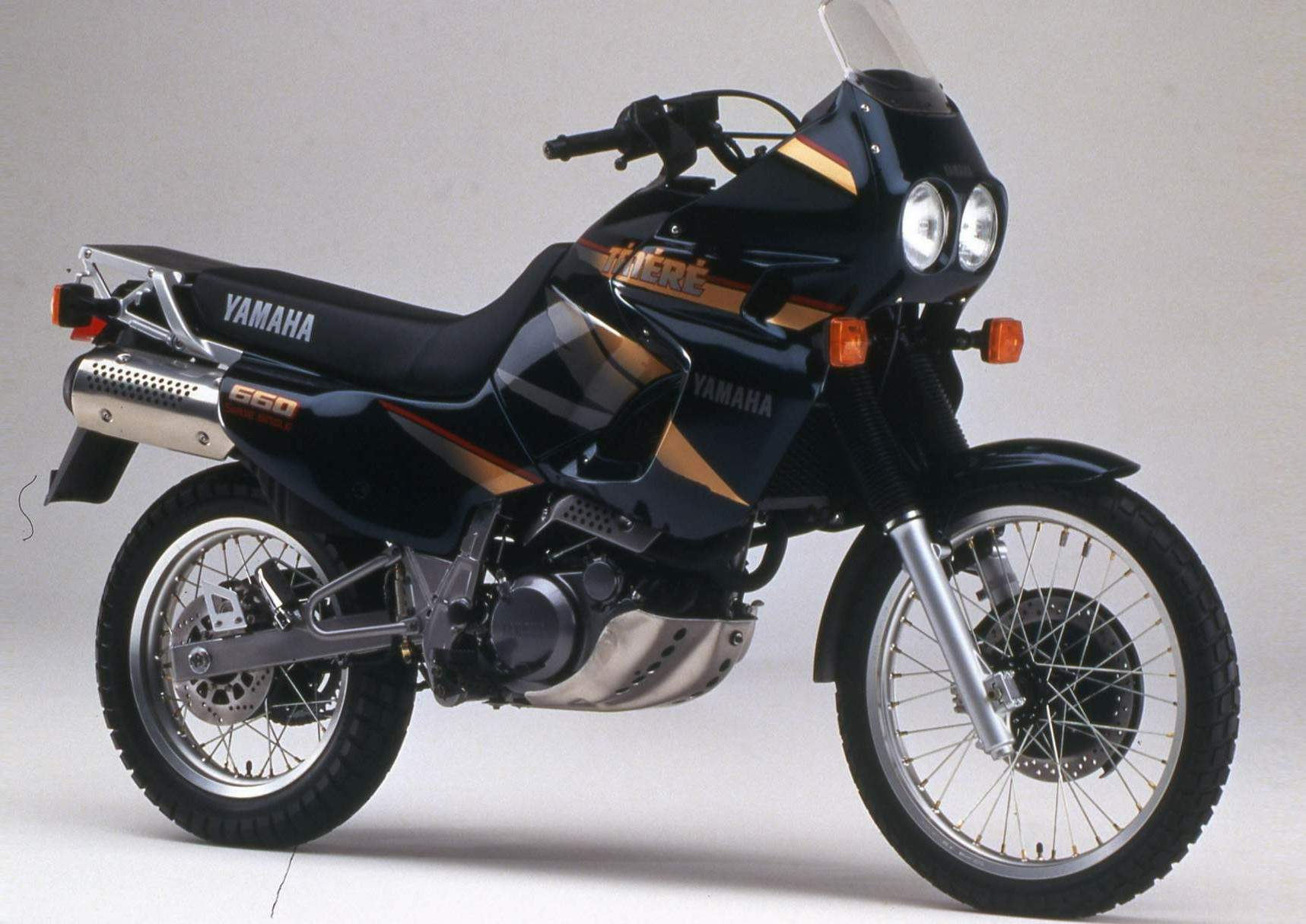

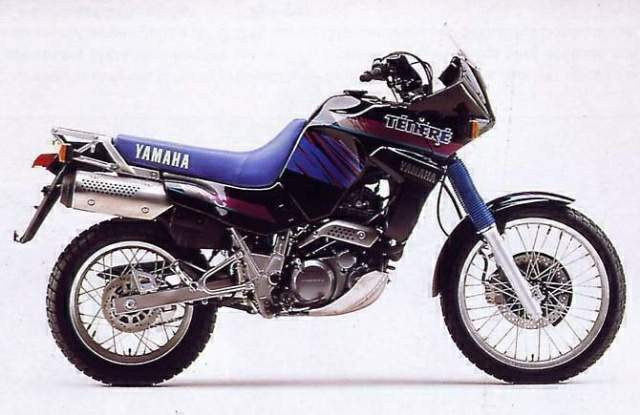

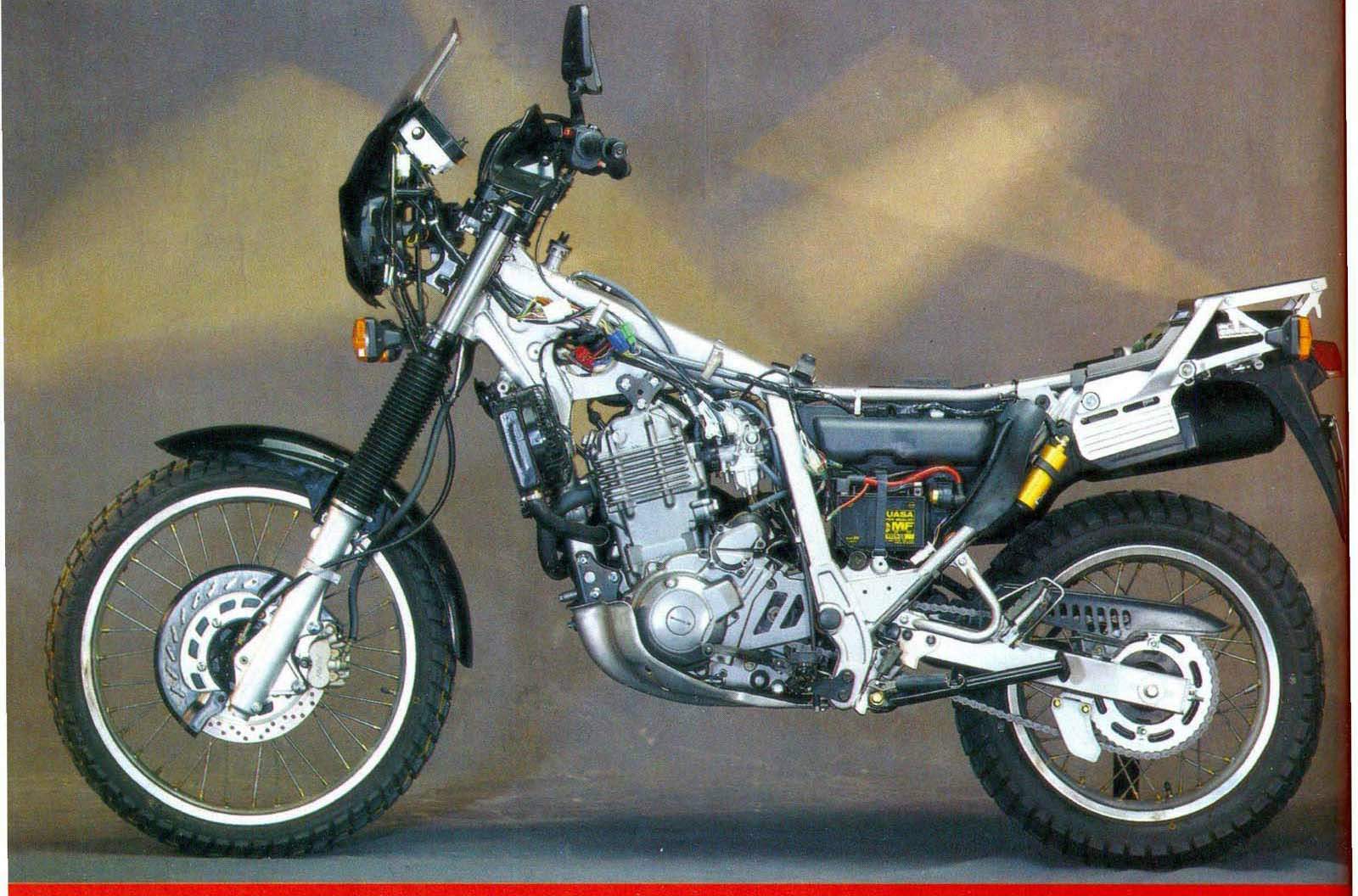

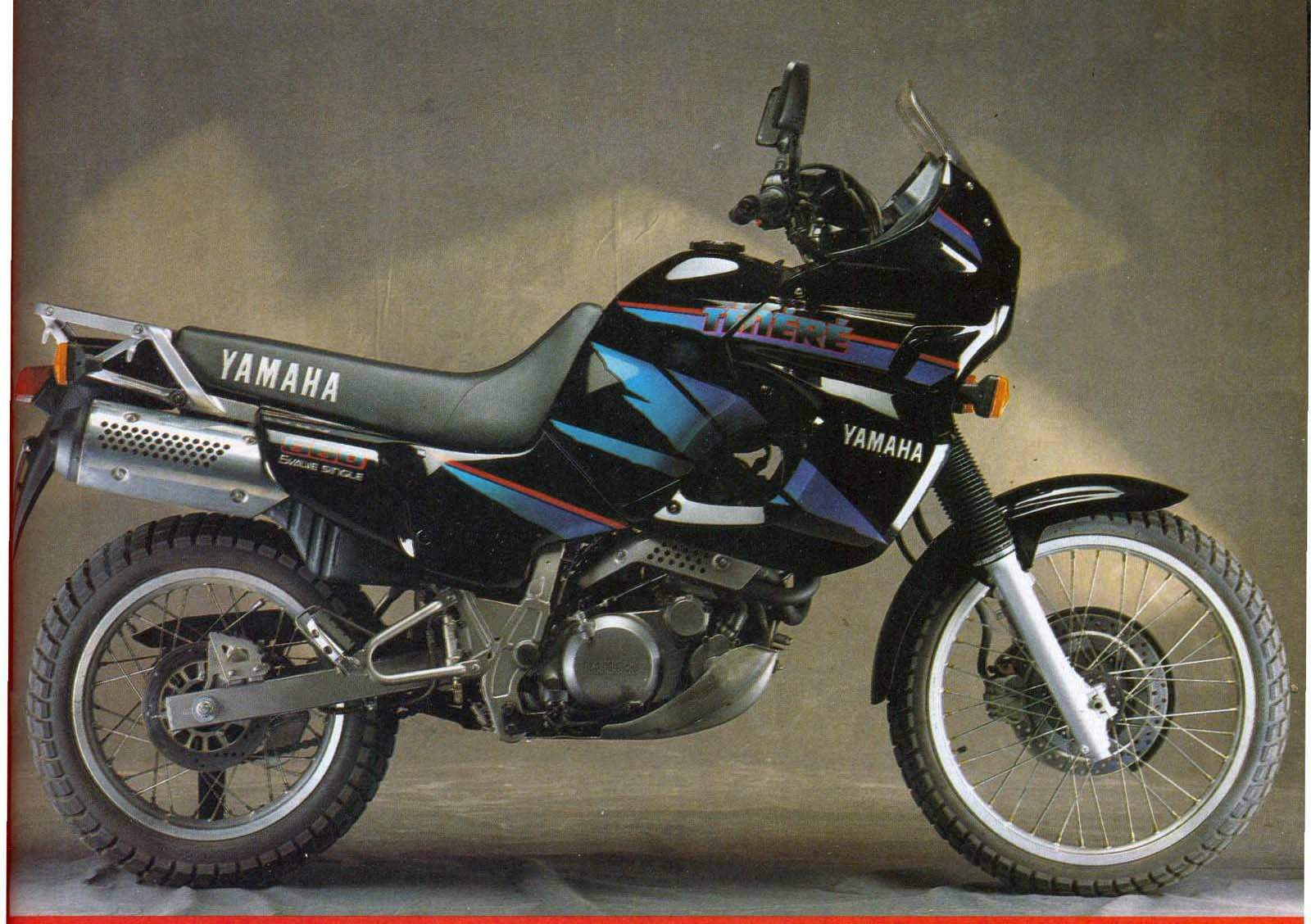

Yamaha XTZ 660 Ténéré is produced in 1997. Engine is Four stroke, single cylinder, SOHC, 5 valves per cylinder, displacement 660 cc / 40.2 cu-in , produces power 46 hp / 35.5 kW @ 6000 rpm and 55.9 Nm / 42 ft. lb @ 5000 rpm. Yamaha XTZ 660 Ténéré top speed is 167.5 km/h / 104 mph. Yamaha XTZ 660 Ténéré weighs 169 kg / 372.5 lbs. Yamaha XTZ 660 Ténéré has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: XTZ 660 Ténéré
Years: 1997
Engine: Four stroke, single cylinder, SOHC, 5 valves per cylinder
Capacity: 660 cc / 40.2 cu-in
Bore x Stroke: 100 x 84 mm
Cooling System: Liquid cooled,
Compression Ratio: 9.2:1
Lubrication: Dry sump
Induction: TEIKEI Y 26 PV / 3YF 00
Ignition: Transistor Controlled
Starting: Electric
Max Power: 46 hp / 35.5 kW @ 6000 rpm
Max Power Rear Tyre: 42.9 hp @ 6400 rpm
Max Torque: 55.9 Nm / 42 ft. lb @ 5000 rpm
Transmission: 5 Speed
Final Drive: Chain
Gear Ratio: 1st 2,583 2nd 1,588 3rd 1,200 4th 0,954 5th 0,792
Front Suspension: 43mm Telescopic forks
Rear Suspension: Monocross adjustable for preload, 5-way rebound damping
Front Brakes: Single 282mm disc 4 piston caliper
Rear Brakes: Single 245mm disc 1 piston caliper
Front Tyre: 90/90-21
Rear Tyre: 120/90-17
Oil Capacity: 3.0 Litres
Dimensions: Length 2265 mm / 89.1 in Width 885 mm / 34.8 in Height 1355 mm / 53.3 in
Wheelbase: 1495 mm / 58.9 in
Seat Height: 865 mm / 34.1 in
Dry Weight: 169 kg / 372.5 lbs
Wet Weight: 195 kg / 429 lbs
Fuel Capacity: 20 Litres / 5.3 US gal
Reserve: 3.5 Litres
Consumption Average: 16.7 km/lit
Braking 60 - 0 / 100 - 0: 14.7 m / 40.8 m
Standing ¼ Mile: 14.0 sec / 145.3 km/h
Top Speed: 167.5 km/h / 104 mph
Road Test: Tuttomoto 1994
