Yamaha XTZ 125E (2002-04) technical specifications

Yamaha XTZ 125E technical specifications

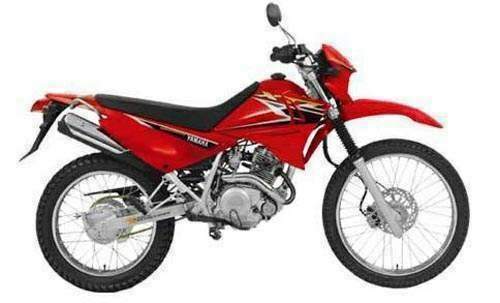

Yamaha XTZ 125E is produced in 2002-04. Engine is Four stroke, single cylinder. SOHC, 2 valve, displacement 124 cc / 7.6 cu-in , produces power 12.5 hp / 9.2 kW @ 8000 rpm and 11.7 Nm / 1.2 kgf-m @ 6500 rpm. Yamaha XTZ 125E top speed is 95.2 km/h. Yamaha XTZ 125E weighs 111 kg / 245 lbs. Yamaha XTZ 125E has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XTZ 125E
Years: 2002-04
Engine: Four stroke, single cylinder. SOHC, 2 valve
Capacity: 124 cc / 7.6 cu-in
Bore x Stroke: 54 X 54 mm
Cooling System: Air cooled
Compression Ratio: 10.0:1
Induction: Mikuni TM28-92
Ignition: CDI
Starting: Electric & kick
Max Power: 12.5 hp / 9.2 kW @ 8000 rpm
Max Torque: 11.7 Nm / 1.2 kgf-m @ 6500 rpm
Transmission: 5 Speed
Final Drive: Chain
Frame: Box section Semi double cradle
Front Suspension: Telescopic fork, with 170mm wheel travel.
Rear Suspension: Monocross with linkage, with 190mm wheel travel.
Front Brakes: Single 245mm disc
Rear Brakes: Single 220mm disc
Front Tyre: 90/90-21
Rear Tyre: 120/80-18
Dimensions: Length 1995 mm / 78.5 in Width 840 mm / 33 in
Wheelbase: 1335 mm / 52.6 in
Seat Height: 860 mm / 34 in
Dry Weight: 111 kg / 245 lbs
Wet Weight: 122.2 kg / 269 lbs
Fuel Capacity: 10.0 Litres / 2.2 US gal
Standing ¼ Mile: 21.9 sec
Top Speed: 95.2 km/h
