Yamaha XSR 700 XTribute (2022) technical specifications

Yamaha XSR 700 XTribute technical specifications

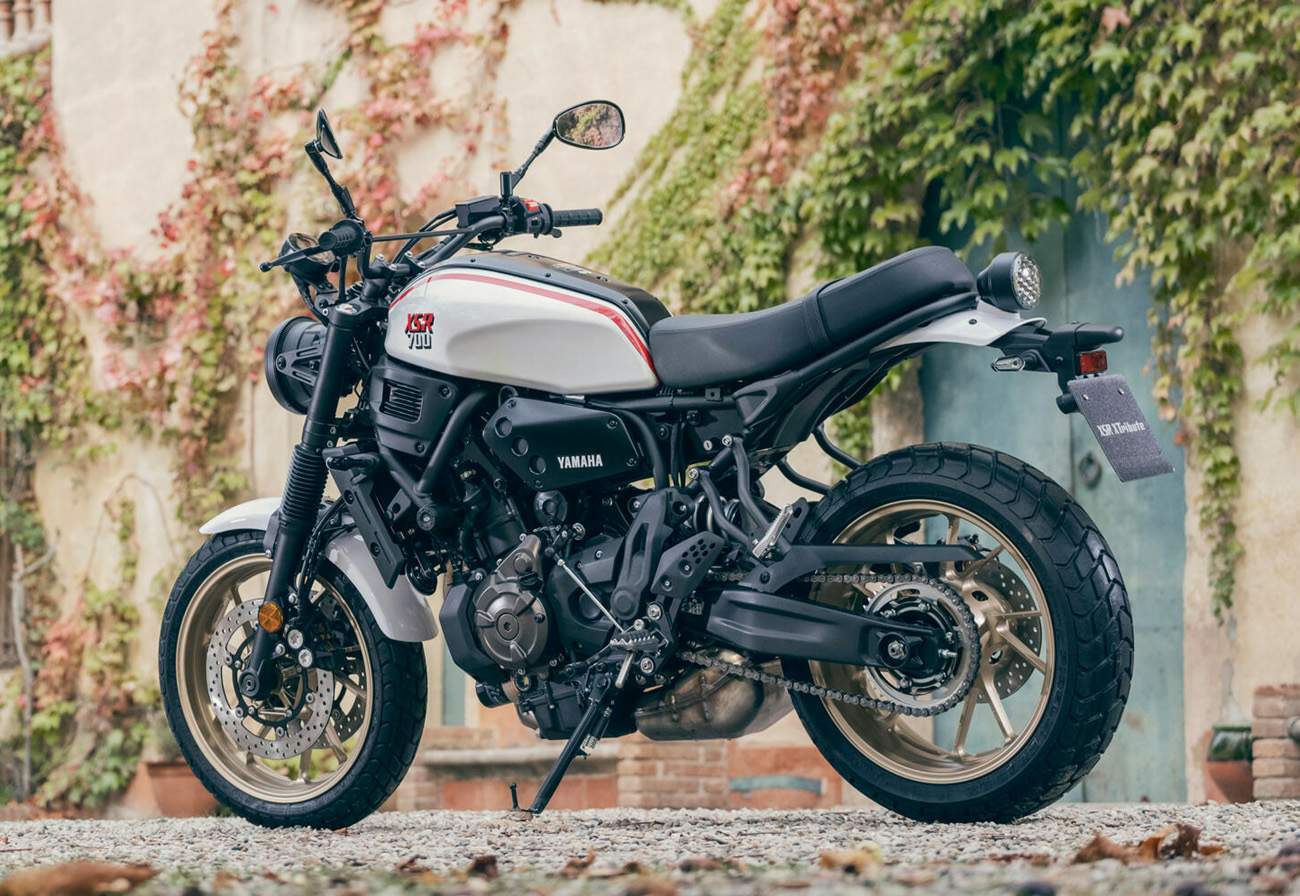

Yamaha XSR 700 XTribute is produced in 2022. Engine is Four stroke, parallel twin cylinder, DOHC, 4-valve per cylinder, displacement 689 cc / 42.0 cu-in , produces power 73.4 hp / 54 kW @ 8750 rpm and 67 Nm / 49.4 lb-ft @ 6500 rpm. Yamaha XSR 700 XTribute wet weight is 188 kg ABS / 414.4 lbs. Yamaha XSR 700 XTribute has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: XSR 700 XTribute
Years: 2022
Engine: Four stroke, parallel twin cylinder, DOHC, 4-valve per cylinder
Capacity: 689 cc / 42.0 cu-in
Bore x Stroke: 80.0 x 68.6 mm
Lubrication: Wet sump
Cooling System: Liquid cooled
Compression Ratio: 11.5:1
Induction: Fuel Injection
Emission: Euro 5
Ignition: TCI: Transistor Controlled Ignition
Starting: Electric
Max Power: 73.4 hp / 54 kW @ 8750 rpm
Max Torque: 67 Nm / 49.4 lb-ft @ 6500 rpm
Clutch: Wet, multiple disc
Transmission: Constant mesh, 6-speed
Final Drive: Chain
Frame: Diamond
Front Suspension: 41mm telescopic fork
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Single shock, adjustable preload, swingarm, link type suspension
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2x 298mm hydraulic discs
Rear Brakes: Single 245mm hydraulic disc
ABS: Standard
Front Tyre: 120/70 ZR 17M/C(58V) (Tubeless)
Rear Tyre: 180/55 ZR 17M/C(73V) (Tubeless)
Caster Angle: 24°30′
Trail: 90 mm / 3.5 in
Dimensions: Length 2075 mm / 81.7 in Width 820 mm / 32.2 in Height 1130 mm / 44.5 in
Wheelbase: 1405 mm / 55.3 in
Seat Height: 835 mm / 32.8 in
Ground Clearance: 140 mm / 5.5 in
Wet Weight: 188 kg ABS / 414.4 lbs
Fuel Capacity: 14 Litres / 3.7 US gal
