Yamaha XS 850SG Special (1980) technical specifications

Yamaha XS 850SG Special technical specifications

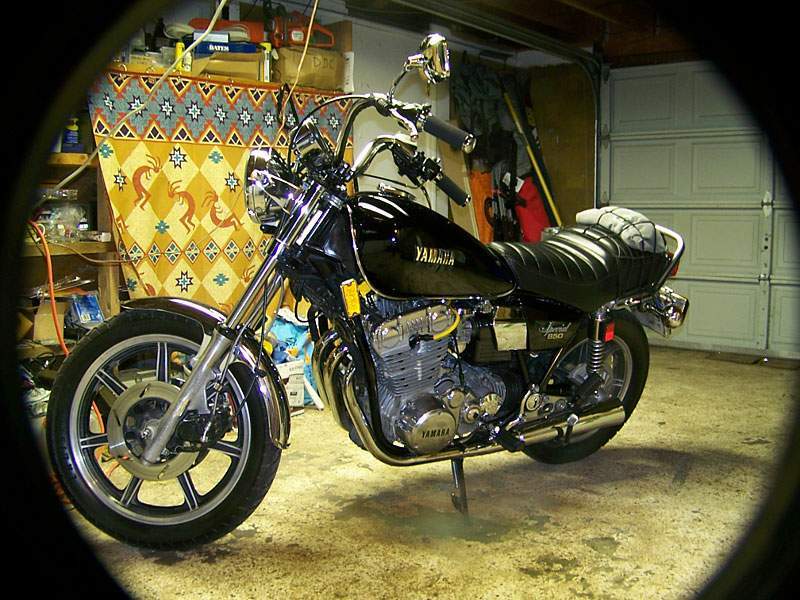

Yamaha XS 850SG Special is produced in 1980. Engine is Four stroke, transverse three cylinder, DOHC, 2 valves per cylinder, displacement 826 cc / 50.4 cu in , produces power 57.7 kW / 79 hp @ 8500 rpm and 66.7 Nm / 6.8 kgf-m / 49.2 ft-lb @6500 rpm. Yamaha XS 850SG Special weighs 241 kg / 531 lbs. Yamaha XS 850SG Special has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XS 850SG Special
Years: 1980
Engine: Four stroke, transverse three cylinder, DOHC, 2 valves per cylinder
Capacity: 826 cc / 50.4 cu in
Bore x Stroke: 71.5 x 68.6 mm
Compression Ratio: 9.2:1
Cooling System: Air cooled
Lubrication System: Wet sump
Induction: 3 x 34mm Hitachi HSC34 carburetors
Ignition: Transistor controlled
Starting: Electric and kick
Max Power: 57.7 kW / 79 hp @ 8500 rpm
Max Torque: 66.7 Nm / 6.8 kgf-m / 49.2 ft-lb @6500 rpm
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: Air assisted telescopic forks, 175mm wheel travel.
Front Wheel Travel: 175 mm / 6.9"
Rear Suspension: Swing arm 4-way adjustable damping, 99 wheel travel
Rear Wheel Travel: 99 mm / 3.9"
Front Brakes: 2 x 267mm Discs, 1 piston calipers
Rear Brakes: Single 267mm disc, 1 piston caliper
Front Tyre: 3.25H-19
Rear Tyre: 4.00H-17
Dimensions: Length: 2175 mm / 85.6" Width: 900 mm / 35.4" Height: 1190 mm / 46.9"
Wheelbase: 1450 mm / 57.1"
Grounc Clearance: 140 mm / 5.5"
Dry Weight: 241 kg / 531 lbs
Wet Weight: 258 kg / 569 lbs
Fuel Capacity: 24 Litres / 6.3 US gal
Standing ¼ Mile: 13.3 sec / 158 km/h / 98.2 mph
