Yamaha FJR 1300AE (2008) technical specifications

Yamaha FJR 1300AE technical specifications

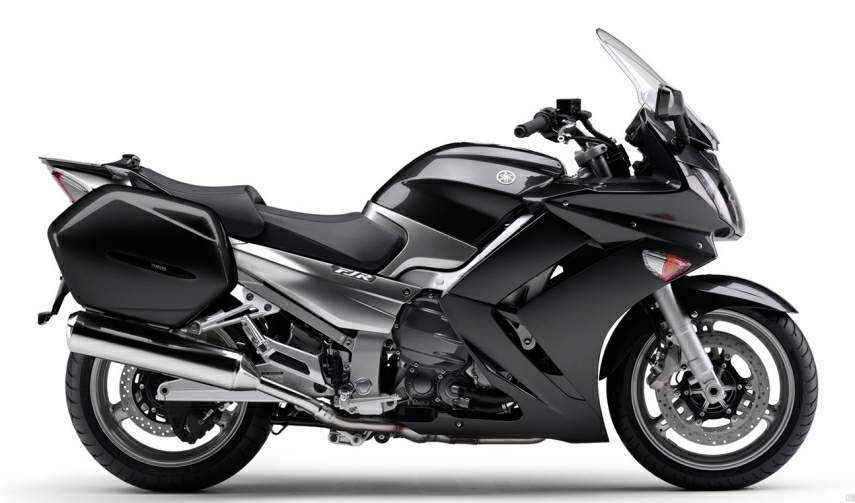

Yamaha FJR 1300AE is produced in 2008. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 1298 cc / 79.2 cu-in , produces power 145 hp / 105.7 kW @ 8500 rpm and 125 Nm / 13.7kgf-m @ 6000 rpm. Yamaha FJR 1300AE top speed is 244.9 km/h / 152.1 mph. Yamaha FJR 1300AE weighs 264 kg / 582 lbs. Yamaha FJR 1300AE has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: FJR 1300AE
Years: 2008
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 1298 cc / 79.2 cu-in
Bore x Stroke: 79 x 66.2 mm
Compression Ratio: 10.8:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Induction: Electronic Fuel Injection
Engine Oil: Synthetic, 20W/40
Ignition: TCI (Transistor Controlled Ignition)
Spark Plug: NGK, CR8E
Starting: Electric
Max Power: 145 hp / 105.7 kW @ 8500 rpm
Max Torque: 125 Nm / 13.7kgf-m @ 6000 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 5 Speed Yamaha Chip-Controlled Shift (YCC-S)
Final Drive: Shaft
Frame: Aluminium, twin spar
Front Suspension: 48mm upside-down telescopic fork w/adjustable preload, compression and rebound damping;
Front Wheel Travel: 137 mm / 5.3 in
Rear Suspension: Single shock, link-type, w/adjustable preload and rebound damping;
Rear Wheel Travel: 129 mm / 4.9 in
Front Brakes: 2x 320mm discs 4 piston calipers
Rear Brakes: Single 283mm disc 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Dimensions: Length 2230 mm / 87.8 in. Width 749.3 mm / 29.5 in. Height 1455 mm / 57.3 in.
Wheelbase: 1544.3 mm / 60.8 in
Ground Clearance: 130 mm / 5.1 in.
Rake: 26.0°
Trail: 102 mm / 4.3 in.
Seat Height: 805 mm - 825.5 mm / 31.7 in - 32.5 in.
Dry Weight: 264 kg / 582 lbs
Wet Weight: 292 kg / 644 lbs
Fuel Capacity: 25 Liters / 6.6 gal
Standing ¼ Mile: 11.4 sec
Top Speed: 244.9 km/h / 152.1 mph
