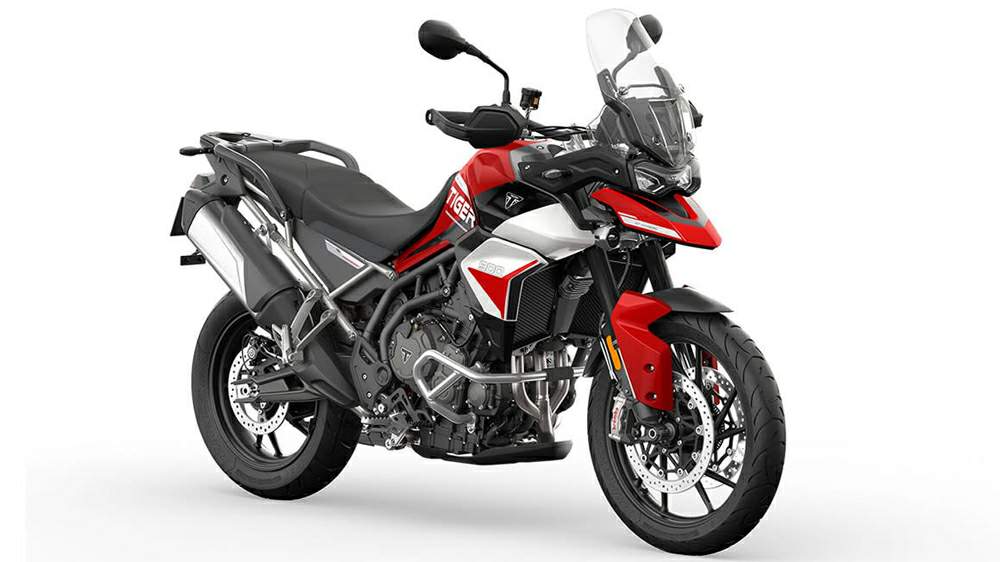

Triumph Tiger 900 GT Aragón Edition (2024) technical specifications

Triumph Tiger 900 GT Aragón Edition is produced in 2024. Engine is Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder., displacement 888 cc / 54.1 cu-in , produces power 70 kW / 93.9 hp @ 8750 rpm and 87 Nm / 64.1 lb-ft @ 7250 rpm. Triumph Tiger 900 GT Aragón Edition weighs 198 kg / 436.5 lbs. Triumph Tiger 900 GT Aragón Edition has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Tiger 900 GT Aragón Edition
Years:	2024
Engine:	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Capacity:	888 cc / 54.1 cu-in
Bore x Stroke:	78 x 61.9 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.27:1
Exhaust:	Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Emission:	Euro 5
Lubrication:	Wet sump
Induction:	Multipoint sequential electronic fuel injection
Ignition:	Digital CDI
Starting:	Electric
Max Power:	70 kW / 93.9 hp @ 8750 rpm
Max Torque:	87 Nm / 64.1 lb-ft @ 7250 rpm
Clutch:	Wet, multi-plate
Transmission:	6 Speed
Final Drive:	O-ring chain
Frame:	Tubular steel frame, bolt on sub frame
Swingarm:	Twin-sided, cast aluminium alloy
Front Suspension:	Marzocchi 45 mm upside down forks, manual rebound and compression damping adjustment.
Front Wheel Travel:	180 mm / 7.08 in
Rear Suspension:	Marzocchi rear suspension unit, electronically adjustable preload and rebound damping.
Rear Wheel Travel:	170 mm / 6.7 in
Front Brakes:	2 x 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder
Rear Brakes:	Single 255mm disc, Brembo single piston sliding caliper
ABS System:	Multimode, Optimised Cornering ABS
Wheels:	Cast iron
Front Wheel:	19 x 2.5 in
Rear Wheel:	17 x 4.25 in
Front Tyre:	100/90-19
Rear Tyre:	150/70R17
Rake:	24.6°
Trail:	133.3 mm / 5.24 in
Dimensions:	Width 930 mm / 36.6 in Height 1410 - 1460 mm / 55.5 - 57.5 in
Wheelbase:	1556 mm / 61.25 in
Seat Height:	820 - 840 mm / 32.3 - 33.1 in
Dry Weight:	198 kg / 436.5 lbs
Fuel Capacity:	20 Litres / 5.28 US gal
