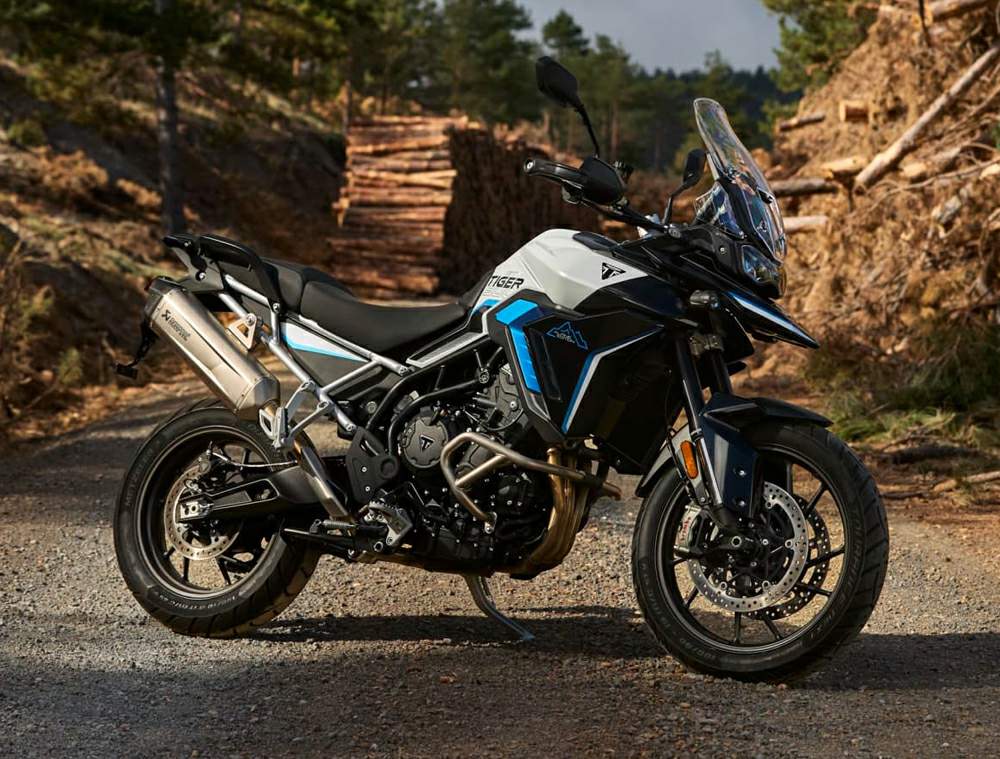

Triumph Tiger 900 Alpine (2026) technical specifications

Triumph Tiger 900 Alpine is produced in 2026. Engine is Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder., displacement 888 cc / 54.1 cu-in , produces power 79.5 kW / 106.5 hp @ 9500 rpm and 90 Nm / 66 ft-lb @ 6850 rpm. Triumph Tiger 900 Alpine wet weight is 224 kg / 494 lbs. Triumph Tiger 900 Alpine has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Tiger 900 Alpine
Years:	2026

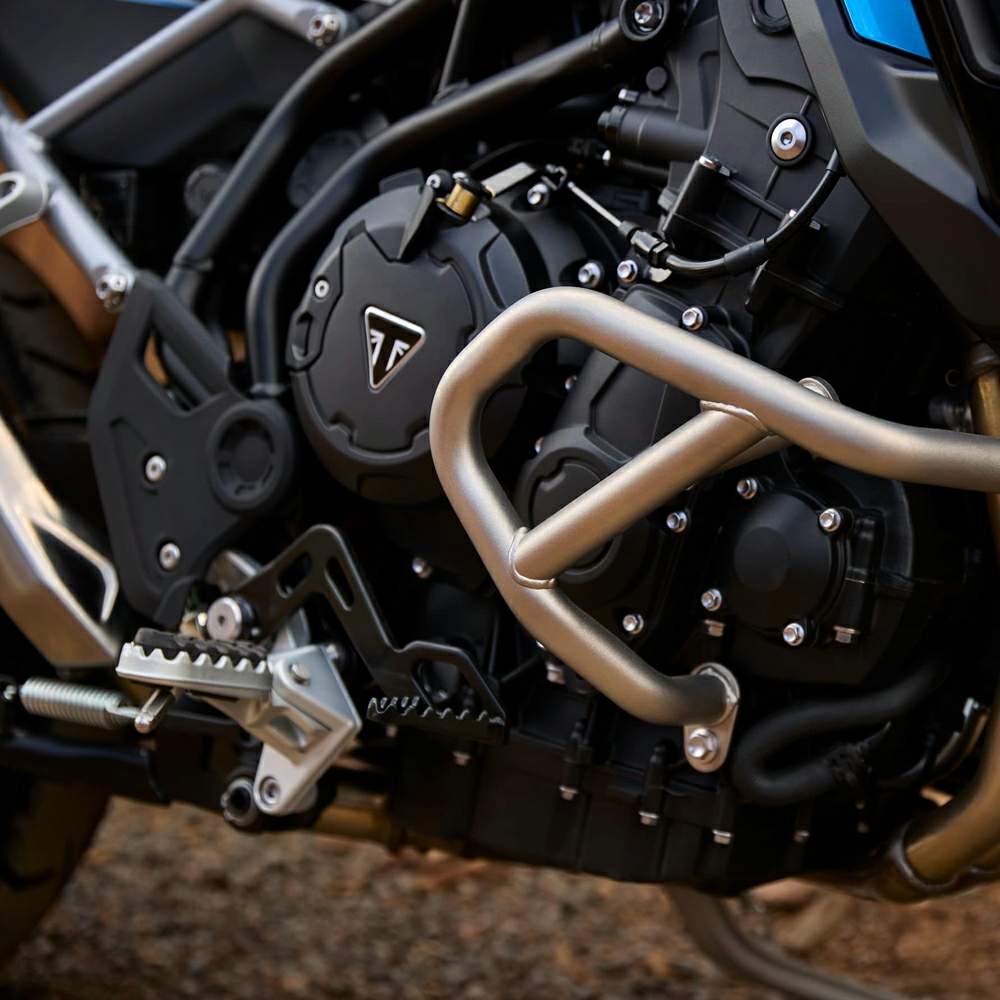

Engine:	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Capacity:	888 cc / 54.1 cu-in
Bore x Stroke:	78 x 61.9 mm
Cooling System:	Liquid cooled
Compression Ratio:	13.0:1

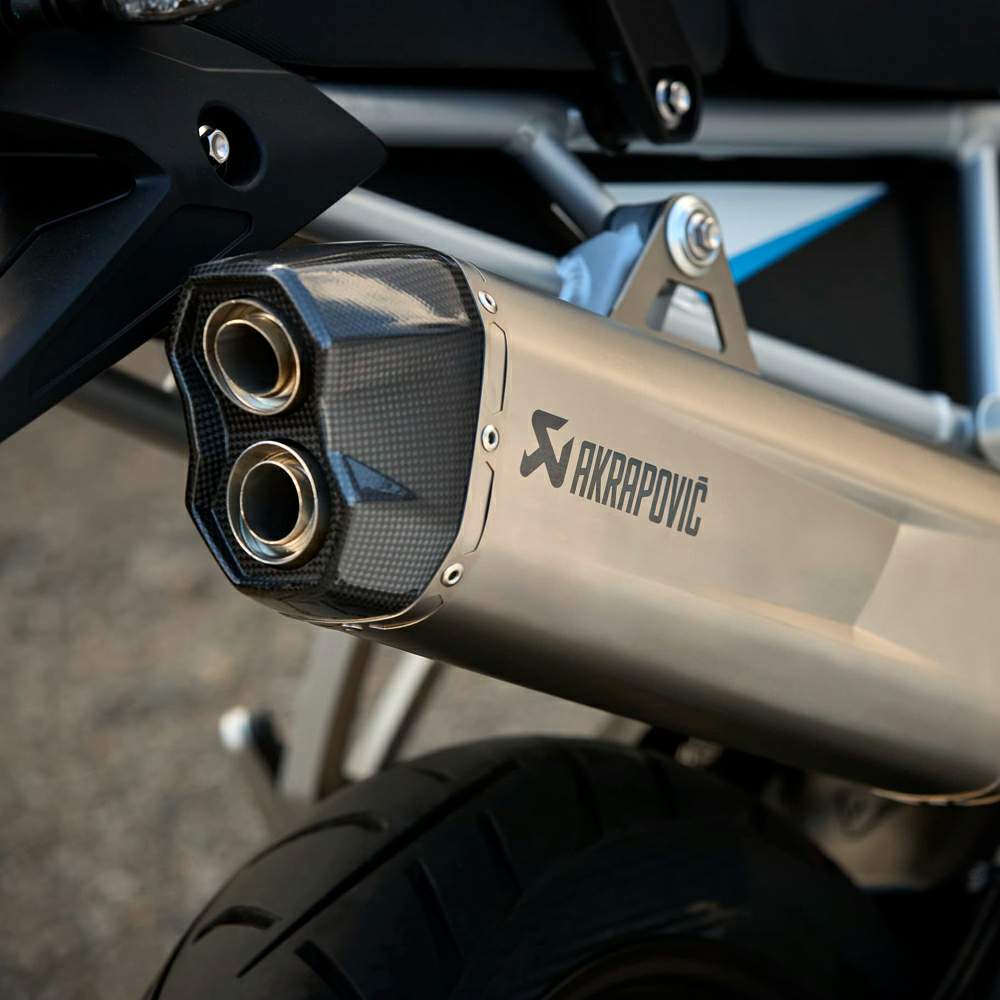

Exhaust:	Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Emission:	Euro 5+
Induction:	Multipoint sequential electronic fuel injection with electronic throttle control
Ignition:	Digital CDI
Starting:	Electric
Max Power:	79.5 kW / 106.5 hp @ 9500 rpm
Max Torque:	90 Nm / 66 ft-lb @ 6850 rpm
Clutch:	Wet, multi-plate, slip and assist
Transmission:	6 Speed
Final Drive:	O-ring chain
Frame:	Tubular steel frame, bolt on sub frame
Swingarm:	Twin-sided, cast aluminium alloy
Front Suspension:	Marzocchi 45mm upside down forks, manual rebound and compression damping adjustment
Front Wheel Travel:	180 mm / 7.1 in
Rear Suspension:	Marzocchi rear suspension unit, electronically adjustable preload and rebound damping
Rear Wheel Travel:	170 mm / 6.7 in
Front Brakes:	2 x 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder
Rear Brakes:	Single 255mm disc, Brembo single piston sliding caliper
ABS System:	Multimode, Optimised Cornering ABS
Wheels:	Cast aluminium
Front Wheel:	19 x 2.15 in
Rear Wheel:	17 x 4.25 in
Front Tyre:	100/90-19 Metzeler TouranceTM Next
Rear Tyre:	150/70-R17 Metzeler TouranceTM Next
Rake:	24.6?
Trail:	102.7 mm / 4.04 in
Dimensions:	Length: 2305 mm / 90.7 in Width 930 mm / 36.6 in Height 1410 - 1460 mm / 55.5 - 57.5 in
Wheelbase:	1556 mm / 61.3 in
Seat Height:	820 - 840 mm / 32.3 - 33.1 in
Wet Weight:	224 kg / 494 lbs
Fuel Capacity:	20 Litres / 5.28 US gal
Instrumentation:	Full-colour 7? TFT instrument pack with My Triumph Connectivity System
