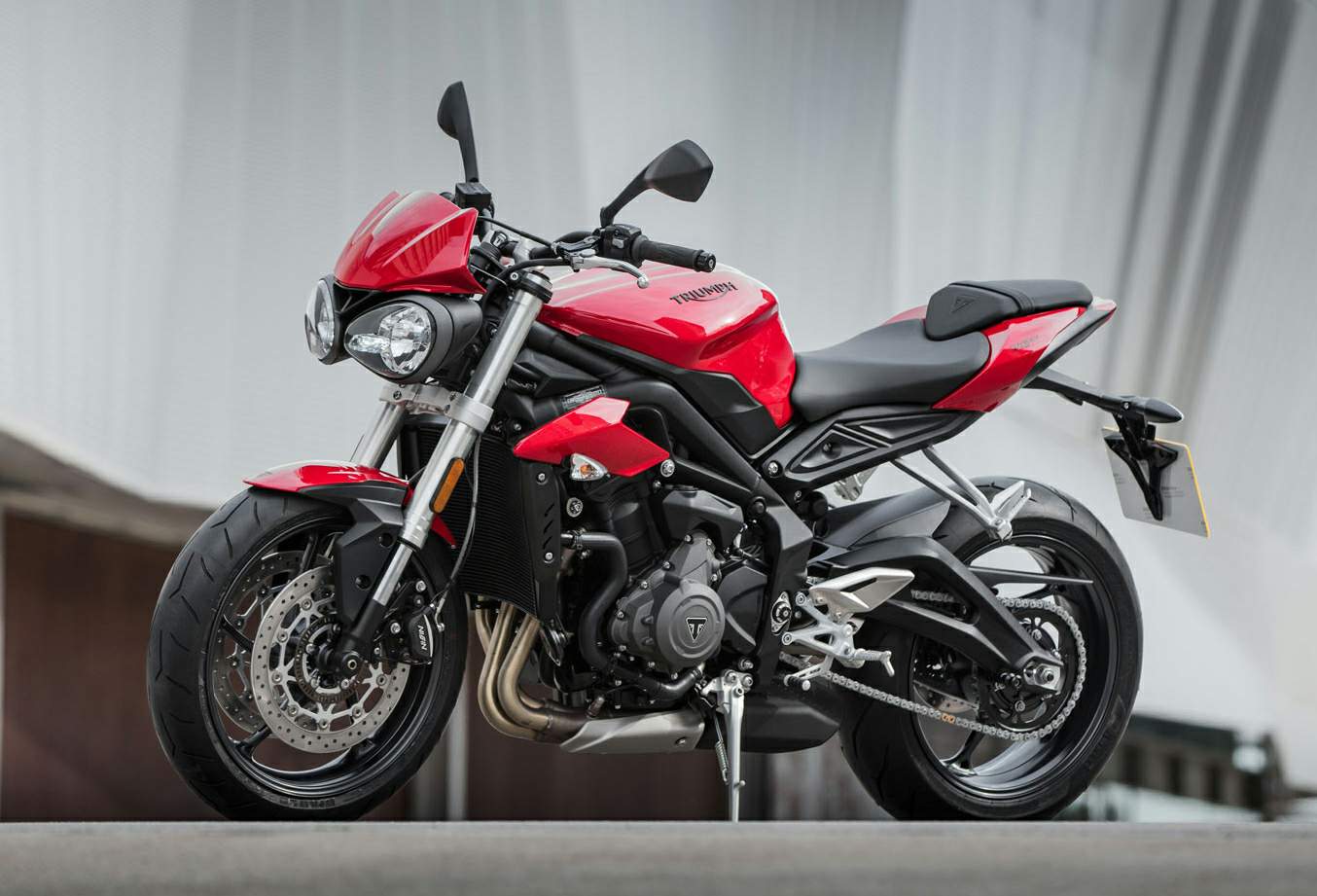

Triumph Street Triple 765S (2018) technical specifications

Triumph Street Triple 765S is produced in 2018. Engine is Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder, displacement 765 cc / 46.6 cu-in , produces power 111 hp / 83kW @ 11,250 rpm and 53.8 lb-ft / 73 Nm @ 9,100 rpm. Triumph Street Triple 765S weighs 165.5 kg / 365 lbs. Triumph Street Triple 765S has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Street Triple 765S
Years:	2018
Engine:	Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder
Capacity:	765 cc / 46.6 cu-in
Bore x Stroke:	78 x 53.4 mm
Cooling System:	Liquid-cooled
Compression Ratio:	12.65:1
Lubrication:	Wet sump
Induction:	Multipoint sequential electronic fuel injection with SAI. Electronic throttle control
Exhaust:	Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Ignition:	Digital - inductive type
Starting:	Electric
Max Power:	111 hp / 83kW @ 11,250 rpm
Max Torque:	53.8 lb-ft / 73 Nm @ 9,100 rpm
Clutch:	Wet, multi-plate
Transmission:	6 Speed, close ratio
Final Drive:	O ring chain
Frame:	Front – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
Front Suspension:	Showa 41 mm upside down separate function forks (SFF)
Front Wheel Travel:	110 mm / 4.3 in
Rear Suspension:	Showa piggyback reservoir monoshock, stepped preload adjuster
Rear Wheel Travel:	124 mm / 4.9 in
Front Brakes:	2 x 310 mm floating discs, Nissin 2-piston sliding calipers
Rear Brakes:	Single 220 mm fixed disc, Brembo single piston sliding calliper
Front Wheels:	3.5” x 17” cast
Rear Wheels:	5.5” x 17” cast
Front Tyre:	120/70 ZR17 Pirelli Diablo Rosso Corsa
Rear Tyre:	180/55 ZR17 Pirelli Diablo Rosso Corsa
Rake:	24.8º
Trail:	104.3 mm / 4.0 in
Dimensions:	Length 2065 mm / 81.2 in Height 1060 mm / 41.7 in (without mirrors)
Wheelbase:	1410 mm / 55.5 in
Seat Height:	810 mm / 31.8 in
Dry Weight:	165.5 kg / 365 lbs
Fuel Capacity:	17.4 Litres / 4.6 US gal / 3.8 Imp gal
