Triumph Street Triple 765RS (2019) technical specifications

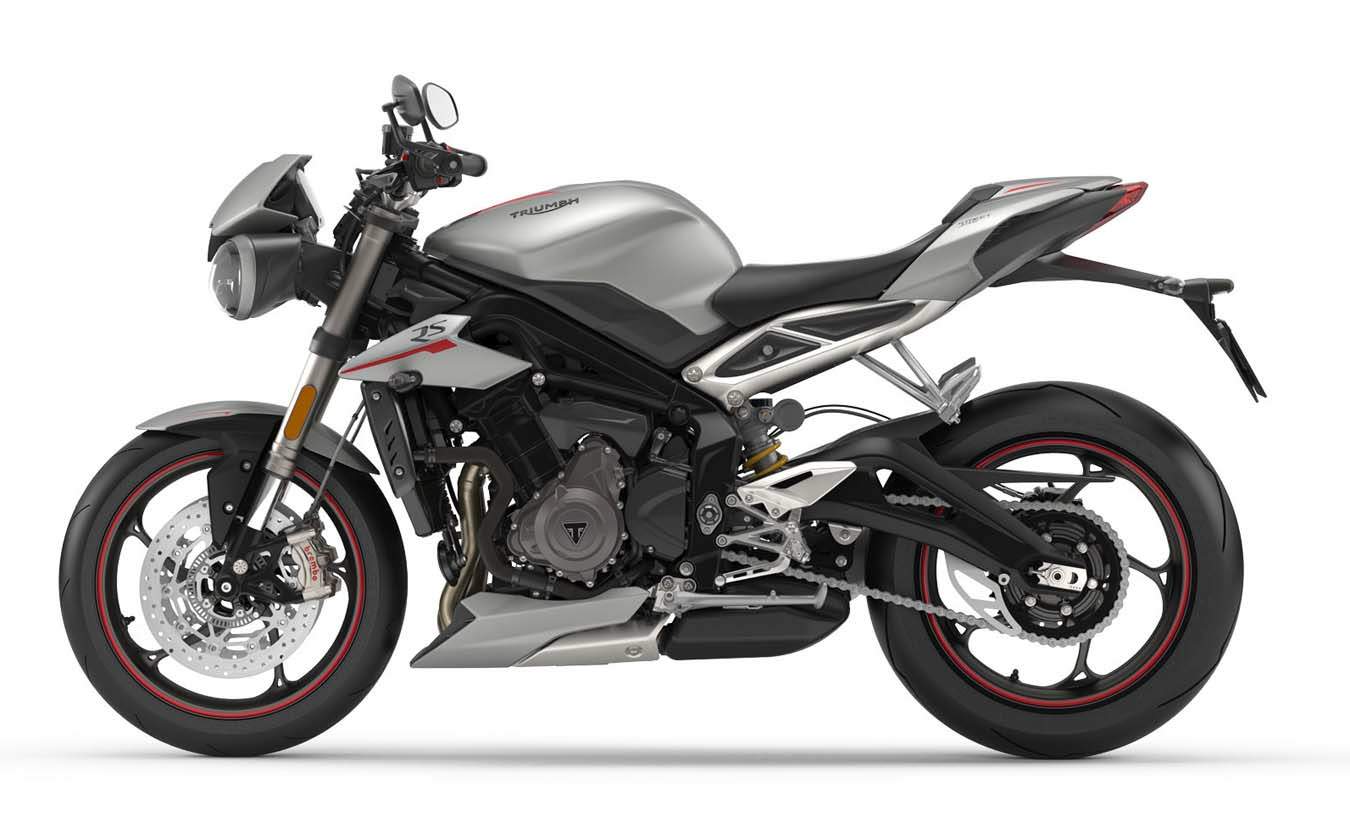

Triumph Street Triple 765RS technical specifications

Triumph Street Triple 765RS is produced in 2019. Engine is Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder, displacement 765 cc / 46.6 cu-in , produces power 121 hp / 90 kW @ 11,700rpm and 56.8 lb-ft / 77 Nm @ 10,800 rpm. Triumph Street Triple 765RS weighs 165.5 kg / 365 lbs. Triumph Street Triple 765RS has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: Street Triple 765RS
Years: 2019
Engine: Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder
Capacity: 765 cc / 46.6 cu-in
Bore x Stroke: 78 x 53.4 mm
Cooling System: Liquid-cooled
Compression Ratio: 12.65:1
Lubrication: Wet sump
Induction: Multipoint sequential electronic fuel injection with SAI. Electronic throttle control
Exhaust: Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Ignition: Digital - inductive type
Starting: Electric
Max Power: 121 hp / 90 kW @ 11,700rpm
Max Torque: 56.8 lb-ft / 77 Nm @ 10,800 rpm
Clutch: Wet, multi-plate, slip and assist clutch
Transmission: 6 Speed, close ratio
Final Drive: O ring chain
Frame: Front – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
Front Suspension: Showa 41 mm upside down big piston forks (BPF). Adjustable compression damping, rebound damping and preload.
Front Wheel Travel: 115 mm / 4.5 in
Rear Suspension: Öhlins STX40 piggyback reservoir monoshock. Adjustable spring preload (lock-rings), compression damping and rebound damping
Rear Wheel Travel: 131 mm / 5.1 in
Front Brakes: 2 x 310 mm floating discs, Brembo M50 4-piston radial monobloc calipers
Rear Brakes: Single 220 mm fixed disc, Brembo single piston sliding calliper
Front Wheels: 3.5 x 17 in cast
Rear Wheels: 5.5 x 17 in cast
Front Tyre: 120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Tyre: 180/55 ZR17 Pirelli Diablo Supercorsa SP
Rake: 23.9º
Trail: 100 mm / 3.9 in
Dimensions: Length 2065 mm / 81.2 in Height 1085 mm / 42.7 in (without mirrors)
Wheelbase: 1410 mm / 55.5 in
Seat Height: 825 mm / 32.4 in
Dry Weight: 165.5 kg / 365 lbs
Fuel Capacity: 17.4 Litres / 4.6 US gal / 3.8 Imp gal
