Triumph Scrambler 1200 XC (2019) technical specifications

Triumph Scrambler 1200 XC is produced in 2019. Engine is Four stroke, 270° crank angle parallel twin, SOHC, displacement 1200 cc / 73.2 cu-in , produces power 88.8 hp / 66.2 kW @ 7400 rpm and 110 Nm / 81.1 lb-ft @ 3950 rpm. Triumph Scrambler 1200 XC weighs 204.5 kg / 451 lbs. Triumph Scrambler 1200 XC has 12 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Scrambler 1200 XC
Years:	2019

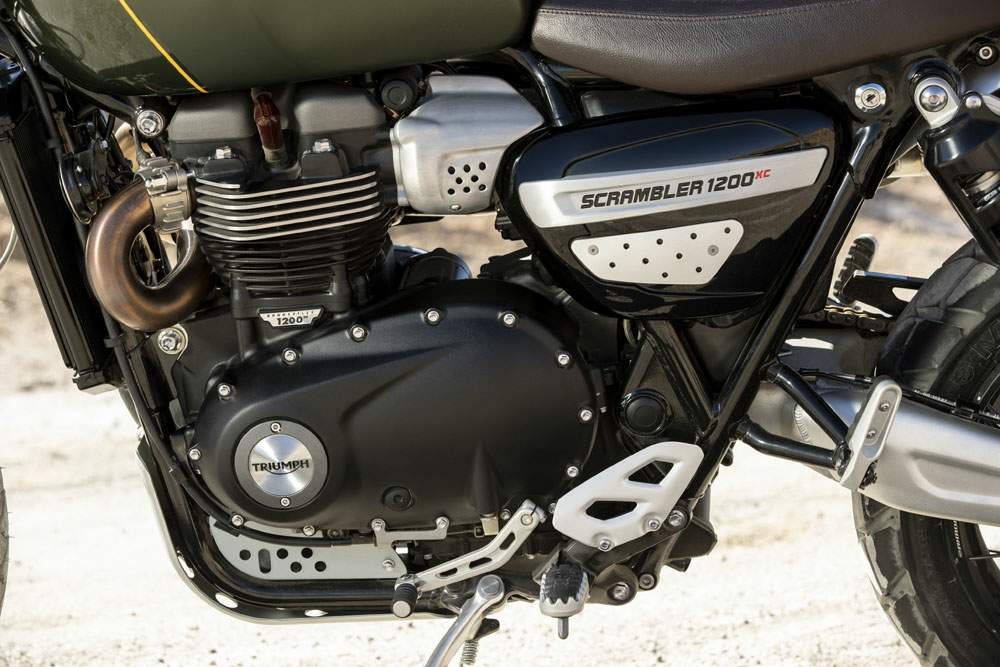

Engine:	Four stroke, 270° crank angle parallel twin, SOHC
Capacity:	1200 cc / 73.2 cu-in
Bore x Stroke:	97.6 x 80.0 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.0:1
Exhaust:	Brushed 2 into 2 exhaust system with brushed high level silencers
Lubrication:	Wet sump
Induction:	Multipoint sequential electronic fuel injection
Ignition:	Digital – inductive type
Starting:	Electric
Max Power:	88.8 hp / 66.2 kW @ 7400 rpm
Max Torque:	110 Nm / 81.1 lb-ft @ 3950 rpm
Clutch:	Wet, multi-plate
Transmission:	6 Speed
Final Drive:	X ring chain
Frame:	Tubular steel with aluminum cradles, Twin-sided, aluminum, 546 mm / 21.5 in long swingarm.
Front Suspension:	Showa 45mm fully adjustable USD forks
Front Wheel Travel:	200 mm / 7.9 in
Rear Suspension:	Öhlins fully adjustable piggy-back RSUs with twin springs
Rear Wheel Travel:	200 mm / 7.9 in
Front Brakes:	2x 320mm discs, Brembo M50 monoblock calipers, radial master cylinder, Switchable ABS
Rear Brakes:	Single 255mm disc, Brembo 2-piston floating caliper. Switchable ABS
Wheel Front:	36-spoke 21 x 2.15in, aluminum rims
Wheel Rear:	32-spoke 17 x 4.25in, aluminum rims
Front Tyre:	90/90-21
Rear Tyre:	150/70 R17
Rake:	25.8°
Trail:	122 mm / 4.8 in
Dimensions:	Length 2286 mm / 90.0 in Width 840.7 mm / 33.1 in handlebars Height 1138.8 mm / 47.2 in without mirrors
Wheelbase:	1529 mm / 60.2 in
Seat Height:	840 mm / 33.1 in
Dry Weight:	204.5 kg / 451 lbs
Fuel Capacity:	15.8 Litres / 4.2 US gal / 3.7 Imp gal
