Triumph Rocket III Roadster (2013) technical specifications

Triumph Rocket III Roadster technical specifications

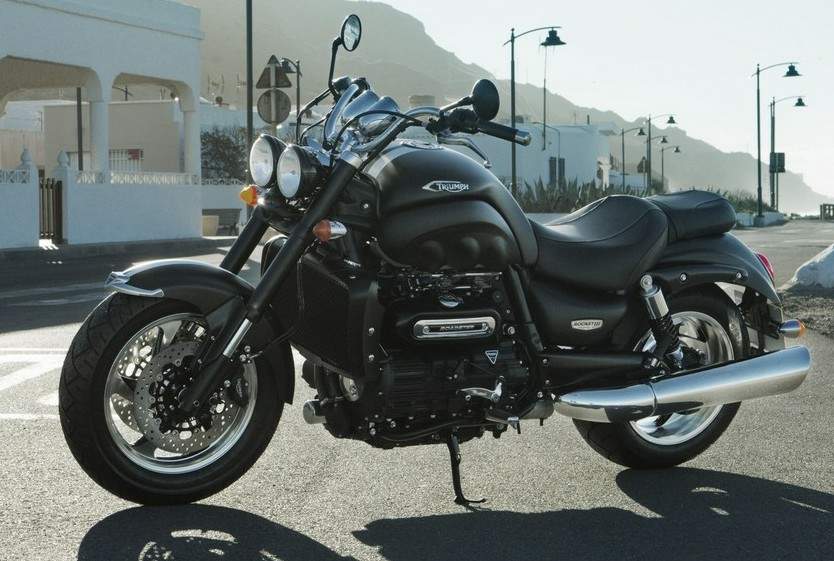

Triumph Rocket III Roadster is produced in 2013. Engine is Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder., displacement 2294 cc / 140 cu in , produces power 109 kW 146 hp @ 5750rpm and 221Nm / 22.5 kgf-m / 163 ft.lbs @ 2750rpm. Triumph Rocket III Roadster weighs 320 kg / 704 lbs. Triumph Rocket III Roadster has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Rocket III Roadster
Years: 2013
Engine: Four stroke, longitudinal three cylinder, DOHC, 4 valves per cylinder.
Capacity: 2294 cc / 140 cu in
Bore x Stroke: 101.6 x 94.3 mm
Cooling System: Liquid cooled
Compression Ratio: 8.7:1
Induction: Multipoint sequential electronic fuel injection
Ignition: Digital - inductive type,via electronic engine management
Starting: Electric
Max Power: 109 kW 146 hp @ 5750rpm
Max Torque: 221Nm / 22.5 kgf-m / 163 ft.lbs @ 2750rpm
Clutch: Wet, multi-plate
Transmission: 5 Speed, constant mesh
Final Drive: Shaft
Gear Ratios: 1st: 41/14 / 2nd: 37/19 / 3rd: 33/23 / 4th: 29/25 / 5th: 27/28
Frame: Tubular steel, twin spine
Front Suspension: Kayaba 43 mm upside down forks
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Kayaba black spring twin shocks with 5 position adjustable preload
Rear Wheel Travel: 105 mm / 4.1 in
Front Brakes: 2 x 320 mm Discs, 4 piston calipers, Nissen, ABS
Rear Brakes: Single 316 mm disc, 2 piston caliper, Nissen, ABS
Front Wheel: Alloy 5-spoke, 17 x 3.5in
Rear Wheel: Alloy 5-spoke, 16 x 7.5in
Front Tyre: 150/80 V17
Rear Tyre: 250/50 V16
Rake: 32°
Trail: 148 mm / 5.8 in
Dimensions: Length 2500 mm / 98.3 in Width 970 mm / 38.2 in (Handlebars) Height 1165 mm / 45.8 in
Wheelbase: 1695 mm / 66.7 in
Seat Height: 750 mm / 29.5 in
Dry Weight: 320 kg / 704 lbs
Wet Weight: 367 kg / 807 lbs
Fuel Capacity: 24 Litres / 6.3 US gal / 5.3 Imp gal
