Triumph Bonneville T120 Black Gold Line Edition (2022) technical specifications

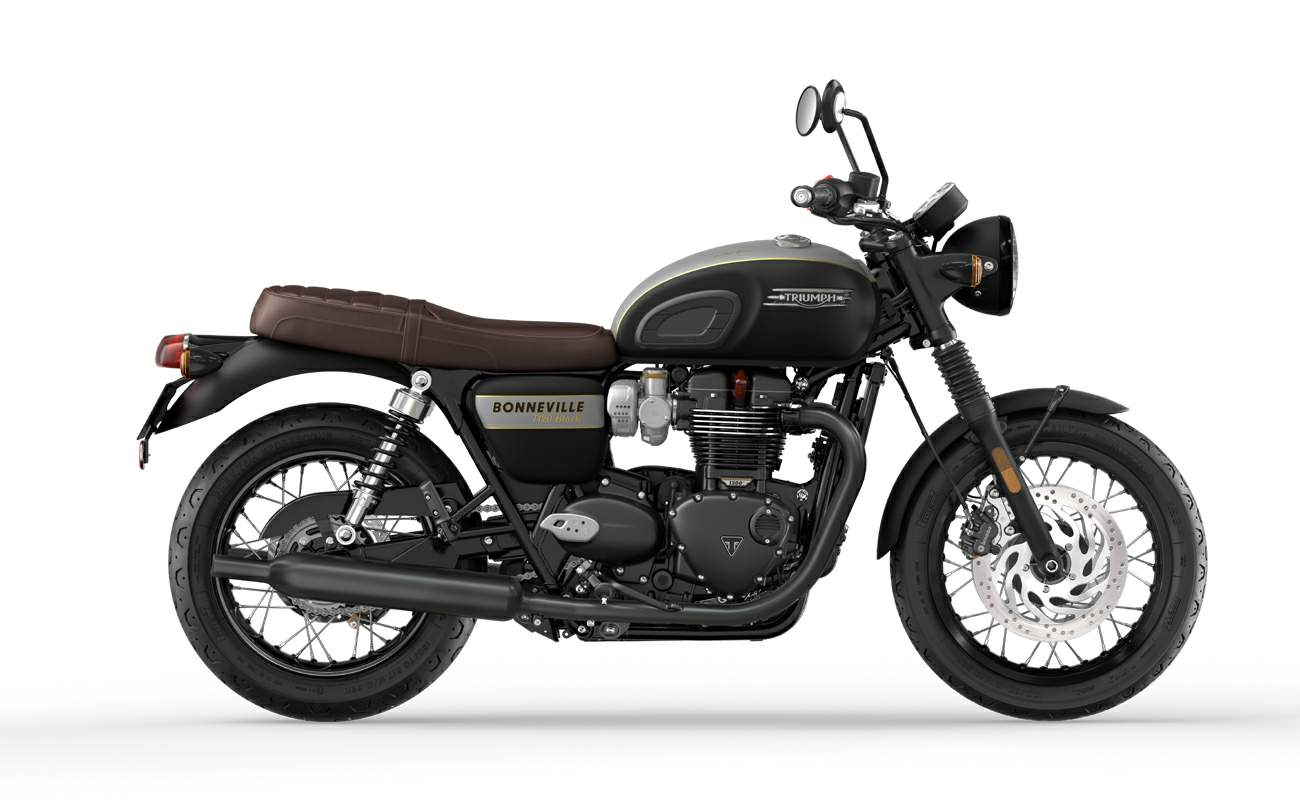

Triumph Bonneville T120 Black Gold Line Edition is produced in 2022. Engine is Four stoke, parallel twin, 270° crank, SOHC 4 valves per cylinder, displacement 1198 cc / 73.1 cu in , produces power 58.8 kW / 78.9 hp @ 6550 rpm and 105 Nm / 77.4 lb-ft @ 3500 rpm. Triumph Bonneville T120 Black Gold Line Edition wet weight is 236 kg / 520 lbs. Triumph Bonneville T120 Black Gold Line Edition has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Bonneville T120 Black Gold Line Edition
Years:	2022
Engine:	Four stoke, parallel twin, 270° crank, SOHC 4 valves per cylinder
Capacity:	1198 cc / 73.1 cu in
Bore x Stroke:	97.6 x 80 mm
Compression Ratio:	10.0:1
Cooling System:	Liquid cooled
Lubrication:	Wet sump
Exhaust:	Black 2 into 2 exhaust system with twin black silencers
Emission:	EURO 5
Induction:	Multipoint sequential electronic fuel injection
Ignition:	Digital
Starting:	Electric
Max Power:	58.8 kW / 78.9 hp @ 6550 rpm
Max Torque:	105 Nm / 77.4 lb-ft @ 3500 rpm
Clutch:	Wet, multi-plate, torque assist clutch
Transmission:	6-Speed
Final Drive:	Chain, X-ring
Frame:	Tubular steel, twin cradle
Swingarm:	Twin sided fabrication
Front Suspension:	Kayaba 41 mm cartridge forks
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Twin RSUs, with pre-load adjustment
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	2 x 310 mm 310mm discs, Brembo 2 piston floating caliper
Rear Brakes:	Single 255mm disc, Nissin 2 piston floating caliper
ABS:	Standard
Wheels Front:	Aluminium rimmed 32 spoke 18 x 2.75 in
Wheels Rear:	Aluminium rimmed 32 spoke, 17 x 4.25 in
Front Tyre:	100/90-18
Rear Tyre:	150/70 R17
Rake:	25.5°
Trail:	105.2 mm / 4.1 in
Dimensions:	Length: 2170 mm / 85.4 in Width: 780 mm / 30.7 in Height: 1100 mm / 43.3 in
Wheelbase:	1450 mm / 57.1 in
Seat Height:	790 mm / 31.1 in
Wet Weight:	236 kg / 520 lbs
Fuel Capacity:	14.5 Litres / 3.8 US gal
Instruments:	Twin dial analogue speedometer and tachometer with LCD multi-functional displays
