Triumph Bonneville T100 (2007-08) technical specifications

Triumph Bonneville T100 technical specifications

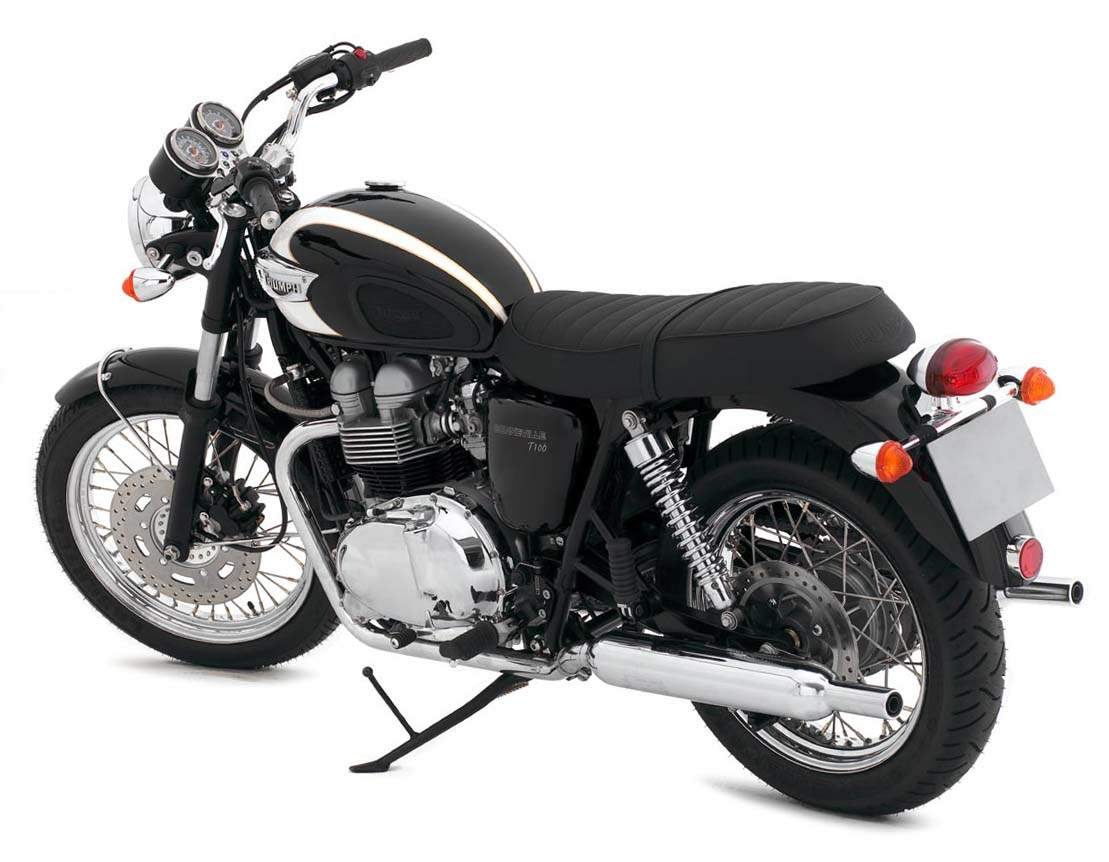

Triumph Bonneville T100 is produced in 2007-08. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 865 cc / 52.8 cu in , produces power 50 kW / 67 hp @ 7500 rpm and 69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm. Triumph Bonneville T100 weighs 205 kg / 451 lbs. Triumph Bonneville T100 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Bonneville T100
Years: 2007-08
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity: 865 cc / 52.8 cu in
Bore x Stroke: 90 x 68 mm
Cooling System: Air-cooled
Compression Ratio: 9.2:1
Lubrication: Wet sump
Engine Oil: Synthetic, 15W/50
Induction: Twin carburetors, electrically heated
Ignition: Digital
Starting: Electric
Max Power: 50 kW / 67 hp @ 7500 rpm
Max Torque: 69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm
Clutch: Wet, multi plate
Transmission: 5 Speed
Final Drive: Chain, X-ring
Frame: Tubular steel cradle, swing arm: twin-sided, tubular steel
Front Suspension: 41mm Kayaba telescopic forks
Rear Suspension: Kayaba chrome spring twin shocks with adjustable preload
Front Brakes: Single 310 mm disc, 2 piston calipers
Rear Brakes: Single 255 mm disc, 2 piston calipers
Wheels Front: 36 Spokes, 19 x 2.5 in
Wheels Rear: 36 Spokes, 17 x 3.5 in
Front Tyre: 100/90 19
Rear Tyre: 130/80 17
Rake: 28°
Trail: 110 mm / 4.3 in
Dimensions: Length 2250 mm / 88.6 in Width 860 mm / 33.8 in Height 1105 mm / 43.5 in
Wheelbase: 1493 mm / 58.8 in
Seat Height: 775 mm / 30.5 in
Dry Weight: 205 kg / 451 lbs
Wet Weight: 226 kg / 499 lbs
Fuel Capacity: 16.6 Litres / 4.4 US gal / 3.7 Imp gal
