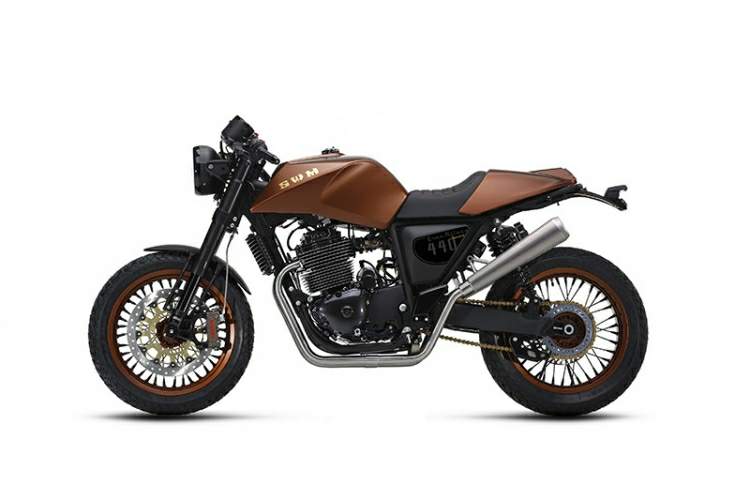

SWM Gran Milano 440 (2015) technical specifications

SWM Gran Milano 440 is produced in 2015. Engine is Single cylinder, four stroke, DOHC, 4 valves, displacement 445 cc / 27.2 cu in SWM Gran Milano 440 weighs 145 kg / 319 lbs. SWM Gran Milano 440 has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Gran Milano 440
Years:	2015
Engine:	Single cylinder, four stroke, DOHC, 4 valves
Capacity:	445 cc / 27.2 cu in
Bore x Stroke:	88.9 x 70 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.9:1
Lubrication:	Dry sump with two oil pumps and cartridge filter
Exhaust:	Euro 3
Induction:	EFI, Mikuni D42
Ignition:	Electronic, inductive discharge, with adjustable advance (digital control)
Spark Plug:	NGK CR8EB
Battery:	12V 6Ah
Starting:	Electric (with automatic decompressor)
Clutch:	Wet, multiplate, hydraulic control
Transmission:	6-Speed
Final Drive:	Chain
Gear Ratio:	1st 2.000 (28/14) / 2nd 1.611 (29/18) / 3rd 1.333 (24/18) / 4th 1.086 (25/23) / 5th 0.920 (23/25) / 6th 0.814 (22/27):1
Frame:	Steel single tube beam with double cradle
Front Suspension:	Ø43 mm Telescopic hydraulic fork
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Double hydraulic shock absorber; spring preload adjustment
Rear Wheel Travel:	94 mm / 3.7 in
Front Brakes:	Ø260 mm Fixed disc with hydraulic control
Rear Brakes:	Ø220 mm Floating disc, with hydraulic control
Wheels:	Steel alloy
Front Rim:	1.85 x 19"
Rear Rim:	3.00 x 17"
Front Tyre:	100/90-19" Golden Tyre GT201
Rear Tyre:	130/80-17" Golden Tyre GT201
Trail:	119 mm / 4.7 in
Dimensions:	Length: 2065 mm / 81.3 in Width: 640 mm / 25.2 in Height: 1100 mm / 43.3 in
Wheelbase:	1445 mm / 56.9 in
Ground Clearance:	160 mm / 6.3 in
Seat Height:	848 mm / 33.4 in
Dry Weight:	145 kg / 319 lbs
Fuel Capacity:	20 L/ 5.3 US gal
