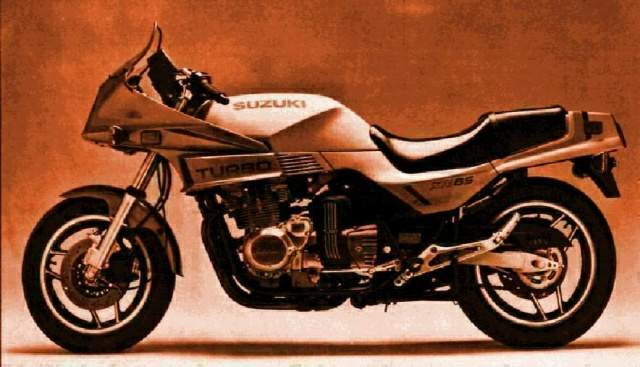

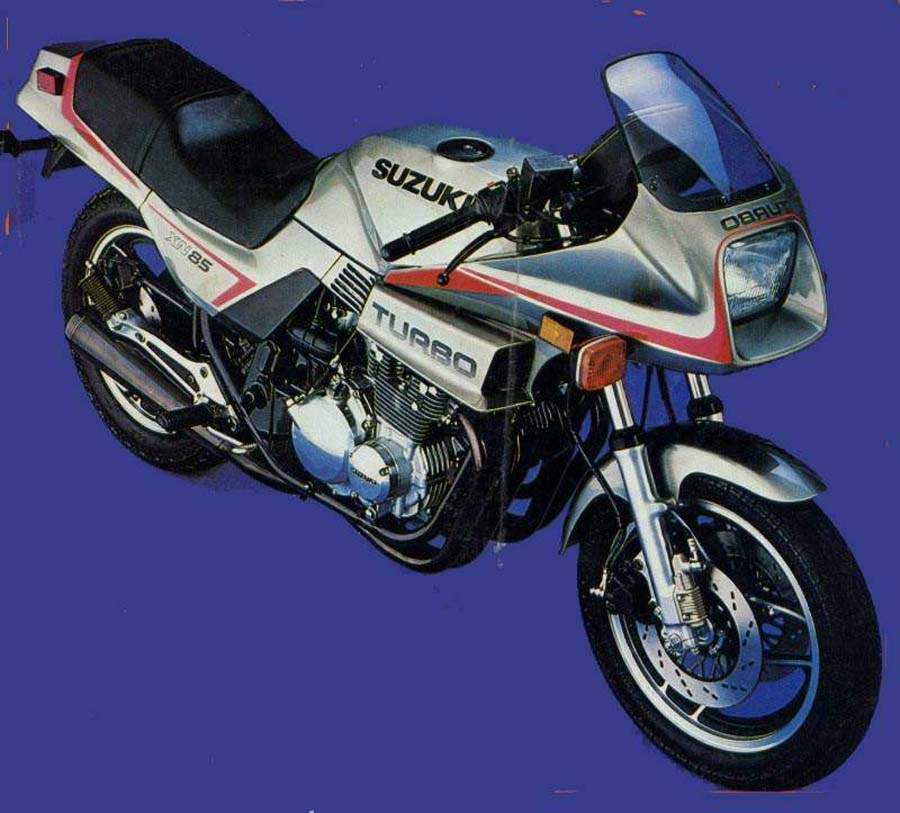

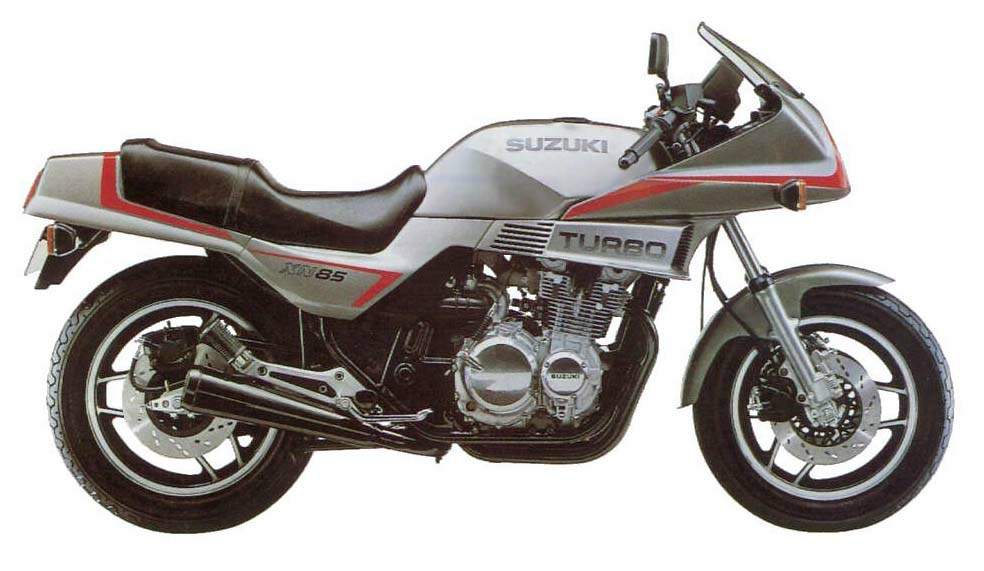

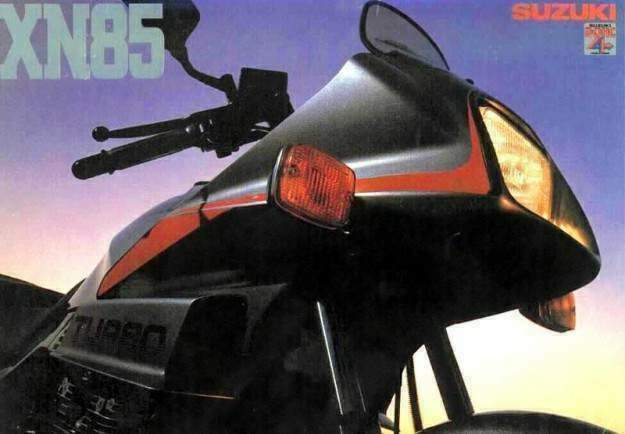

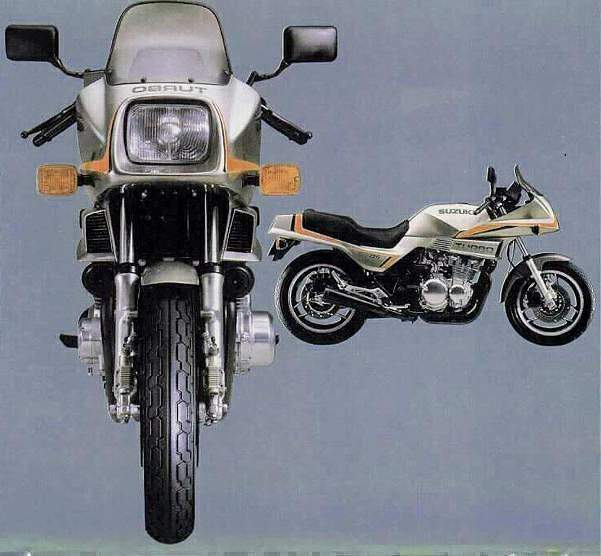

Suzuki XN 85D Turbo (1983-85) technical specifications

Suzuki XN 85D Turbo is produced in 1983-85. Engine is Four-stroke, transverse four cylinder, turbocharged, DOHC, 2 valves per cylinder, displacement 673 cc / 41.1 cu in , produces power 62 kW / 85 hp @ 8000 rpm and 76.4 Nm / 7.8 kgf-m / 56.4 lb-ft @ 6500 rpm. Suzuki XN 85D Turbo top speed is 206 km/h / 128 mph. Suzuki XN 85D Turbo weighs 218 kg / 479 lbs. Suzuki XN 85D Turbo has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	XN 85D Turbo
Years:	1983-85
Production:	1153 units
Engine:	Four-stroke, transverse four cylinder, turbocharged, DOHC, 2 valves per cylinder
Capacity:	673 cc / 41.1 cu in
Cooling System:	Air-cooled
Bore x Stroke:	62 x 55.8 mm
Compression Ratio:	7.4:1
Induction:	Nippondenso electronic fuel injection
Ignition:	Transistorize
Starting:	Electric
Max Power:	62 kW / 85 hp @ 8000 rpm
Max Torque:	76.4 Nm / 7.8 kgf-m / 56.4 lb-ft @ 6500 rpm
Clutch:	Wet, multi-plate
Transmission:	5 Speed
Final Drive:	530 chain, 39/16
Final Reduction:	39/16
Front Suspension:	37mm Kayaba shocks, adjustments for spring preload, anti-dive
Front Wheel Travel:	150 mm / 5.9 in
Rear Suspension:	Suzuki Full Floater, one Kayaba damper, 1 adjustment for spring preload
Rear Wheel Travel:	106 mm / 4.2 in
Front Brakes:	2 x 290mm Discs, 2 piston calipers
Rear Brakes:	Single 265mm disc, 1 piston caliper
Front Tyre:	100/90 H16 Michelin A48
Rear Tyre:	120/90 H17 Michelin M48
Dimensions:	Length: 2160 mm / 85.0 in Width: 750 mm / 30.0 in
Wheelbase:	1486 mm / 58.5 in
Seat Height:	762 mm / 30.0 in
Dry Weight:	218 kg / 479 lbs
Wet Weight:	250 kg / 551 lb lbs
Fuel Capacity:	20 Litres / 5.3 US gal / 4.4 Imp gal
Consumption Average:	6.9 L/100 km / 14.5 km/l / 34 US mpg / 40.8 Imp mpg
Standing ¼ Mile:	12.3 sec / 171 km/h / 106 mph
Top Speed:	206 km/h / 128 mph
