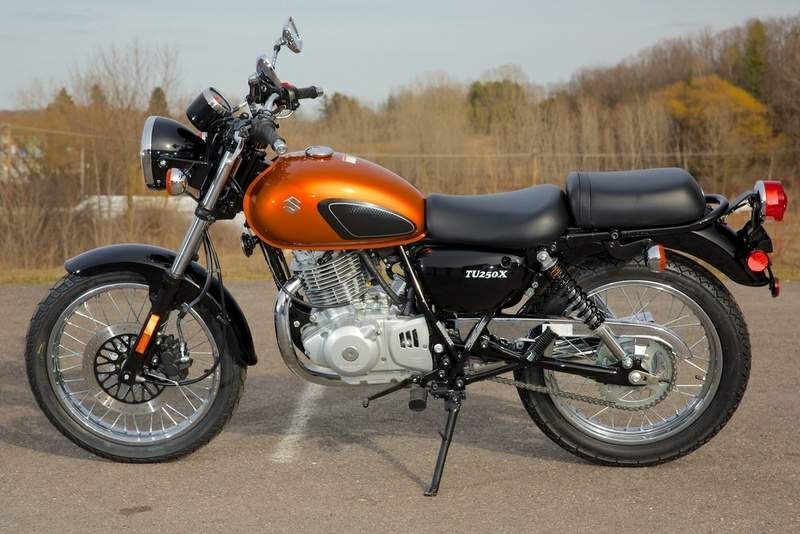

Suzuki TU 250X (2014-16) technical specifications

Suzuki TU 250X technical specifications

Suzuki TU 250X is produced in 2014-16. Engine is Four stroke, single cylinder, SOHC, 4 valves, displacement 249 cc / 15.2 cu-in , produces power 15 kW / 20 hp @ 8000 rpm and 21 Nm / 2.1 kgf-m / 15.5 lb-ft @ 5500 rpm. Suzuki TU 250X wet weight is 149 kg / 326 lbs. Suzuki TU 250X has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: TU 250X
Years: 2014-16
Engine: Four stroke, single cylinder, SOHC, 4 valves
Capacity: 249 cc / 15.2 cu-in
Bore x Stroke: 72 x 61.2 mm
Cooling System: Air/oil-cooled
Lubrication System: Wet sump
Compression Ratio: 9.2:1
Induction: EFI
Ignition: Electronic ignition (fully transistorized)
Starting: Electric
Max Power: 15 kW / 20 hp @ 8000 rpm
Max Torque: 21 Nm / 2.1 kgf-m / 15.5 lb-ft @ 5500 rpm
Transmission: 5 Speed
Final Drive: Chain, DID520V, 108 links
Frame: Diamond shaped, steel tube
Front Suspension: Telescopic, hydraulic dampers, coil springs
Rear Suspension: Swinging arm, hydraulic dampers, coil springs
Front Brakes: Single disc
Rear Brakes: Drum
Front Tyre: 90/90-18 M/C 51S, tube type
Rear Tyre: 110/90-18 M/C 61S, tube type
Dimensions: Length 2070 mm / 81.5 in Width 750 mm / 29.5 in Height: 1075 mm / 42.3 in
Wheelbase: 1375 mm / 54.1 in
Seat Height: 770 mm / 30.3 in
Ground Clearance: 165 mm / 6.5 in
Wet Weight: 149 kg / 326 lbs
Fuel Capacity: 12 Litres / 3.2 US gal / 2.6 Imp gal
Top Speed (est.): 120 km/h / 75 mph
