Suzuki GSX-R 1100 (1994) technical specifications

Suzuki GSX-R 1100 technical specifications

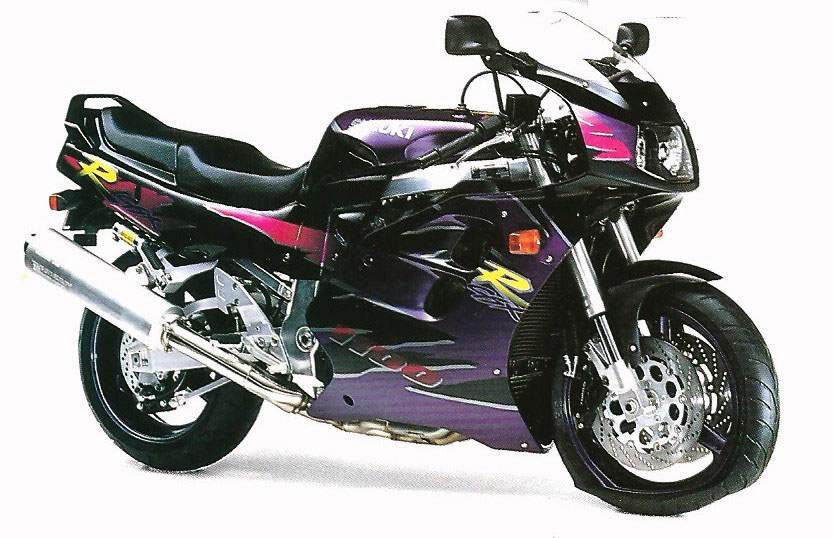

Suzuki GSX-R 1100 is produced in 1994. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder,, displacement 1074 cc / 65.5 cub. in. , produces power 114.7 kW / 156 hp @ 10000 rpm and 115 Nm / 11.7 kgf-m / 84.8 ft-lb @ 9000 rpm. Suzuki GSX-R 1100 top speed is 272 km/h / 169 mph. Suzuki GSX-R 1100 weighs 231 kg / 509 lbs. Suzuki GSX-R 1100 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSX-R 1100
Years: 1994
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder,
Capacity: 1074 cc / 65.5 cub. in.
Bore x Stroke: 75.5 x 60 mm
Compression Ratio: 11.2:1
Cooling System: Liquid cooled
Engine Oil: 10W/40
Exhaust System: Stainless steel, 4-into-2-into-1-into-2
Lubrication: Wet sump
Induction: 4 x 40 mm Mikuni BST carburetors
Ignition: Analog CDI
Spark Plug: NGK
Starting: Electric
Max Power: 114.7 kW / 156 hp @ 10000 rpm
Max Power Rear Wheel: 101.4 kW / 137.8 hp @ 10000 rpm
Max Torque: 115 Nm / 11.7 kgf-m / 84.8 ft-lb @ 9000 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 5 Speed
Final Drive: Chain, 114 links
Gear Ratios: 1st 2.71 / 2nd 1.81 / 3rd 1.41 / 4th 1.18 / 5th 1.04:1
Frame: Double-cradle frame rails extruded aluminium alloy, pentagon-shape
Front Suspension: Kayaba upside-down forks, preload, compression and rebound damping adjustable.
Rear Suspension: Bottom-link type, preload, compression and rebound damping adjustable
Front Brakes: 2 x 310 mm Discs, six-piston calipers
Rear Brakes: Single 240 mm disc, single piston caliper
Wheels: Alloy aluminum, 3 spoke Enkei rims
Front Rim: 89 mm / 3.5 in.
Rear Rim: 140 mm / 5.5 in.
Front Tyre: 120/70ZR17
Rear Tyre: 180/55ZR17
Rake: 24.8°
Trail: 100 mm / 3.9in.
Dimensions: Length 2130 mm / 83.9 in. Width 755 mm / 29.7 in. Height 1190 mm / 46.9 in.
Wheelbase: 1485 mm / 58.5 in.
Seat Height: 815 mm / 32.1 in.
Ground Clearance: 130 mm / 5.1 in.
Dry Weight: 231 kg / 509 lbs
Wet Weight: 254 kg / 560 lbs
Fuel Capacity: 21 Litres / 5.5 US gal / 4.6 Imp gal
Average Consumption: 6.7 L/100 km / 14.8 km/l / 34.8 US mpg / 42 Imp mpg
Braking 60 km/h / 37 mph - 0: 13.2 m / 43.3 ft.
Braking 100 km/h / 62 mph - 0: 37.2 m / 122 ft.
Standing ¼ mile: 10.5 sec / 222 km/h / 138mph
Top Speed: 272 km/h / 169 mph
Colours: Blue/White, Red/Black, Black
