Suzuki AN 400 Burgman (2003-04) technical specifications

Suzuki AN 400 Burgman technical specifications

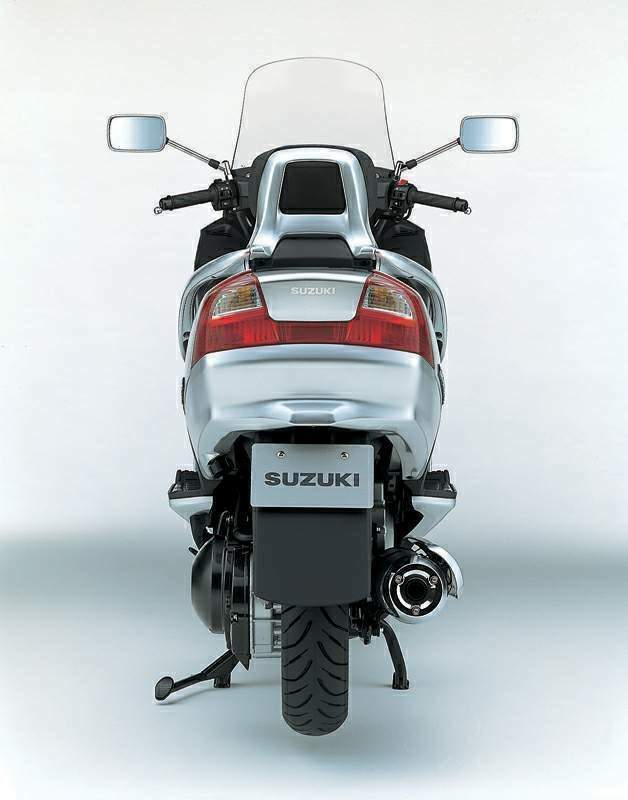

Suzuki AN 400 Burgman is produced in 2003-04. Engine is Four stroke, single cylinder, SOHC, 4 valves, displacement 385 cc / 23.5 cu in , produces power 23.4 kW / 32 hp @ 7600 rpm and 32 Nm / 3.3 kgf-m / 23.6 ft-lb @ 6000 rpm. Suzuki AN 400 Burgman weighs 184 kg / 405 lbs. Suzuki AN 400 Burgman has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: AN 400 Burgman
Years: 2003-04
Engine: Four stroke, single cylinder, SOHC, 4 valves
Capacity: 385 cc / 23.5 cu in
Bore x Stroke: 83 x 71.2 mm
Compression Ratio: 10.2:1
Lubrication system: Wet sump
Cooling System: Liquid cooled
Induction: Fuel Injection
SparkPlug: NGK CR7E or DENSO U22ESR-N
Ignition: Digital electronic
Starting: Electric
Battery: 12V, 8Ah
Max Power: 23.4 kW / 32 hp @ 7600 rpm
Max Torque: 32 Nm / 3.3 kgf-m / 23.6 ft-lb @ 6000 rpm
Transmission: CVT
Final Drive: Belt
Frame: Steel pipe, under bone
Front Suspension: Inverted, telescopic, 41mm inner tube, coil spring, oil damped
Rear Suspension: Swingarm, progressive linkage, coil spring, oil dampedfully adjustable spring preload
Front Wheel Travel: 100 mm / 3.9"
Rear Wheel Travel: 100 mm / 3.9"
Front Brakes: Single hydraulic 260 mm disc
Rear Brakes: Single hydraulic 210 mm disc
Front Tyre: 110/90-13 M/C 55P, tubeless
Rear Tyre: 130/70-13 M/C 63P, tubeless
Rake: 27º
Trail: 106 mm / 4.2"
Steering Angle (left and right): 40º
Turning Radius: 2.8 m / 9.2 ft
Dimensions: Length: 2260 mm / 89.0" Width: 760 mm / 29.9" Height: 1375 mm / 54.1"
Wheelbase: 1590 mm / 62.6"
Seat Height: 695 mm / 27.4"
Ground Clearance: 125 mm / 4.9"
Dry Weight: 184 kg / 405 lbs
Fuel Capacity: 13 Litres / 3.4 US gal
