NSU Fox (1949-54) technical specifications

NSU Fox technical specifications

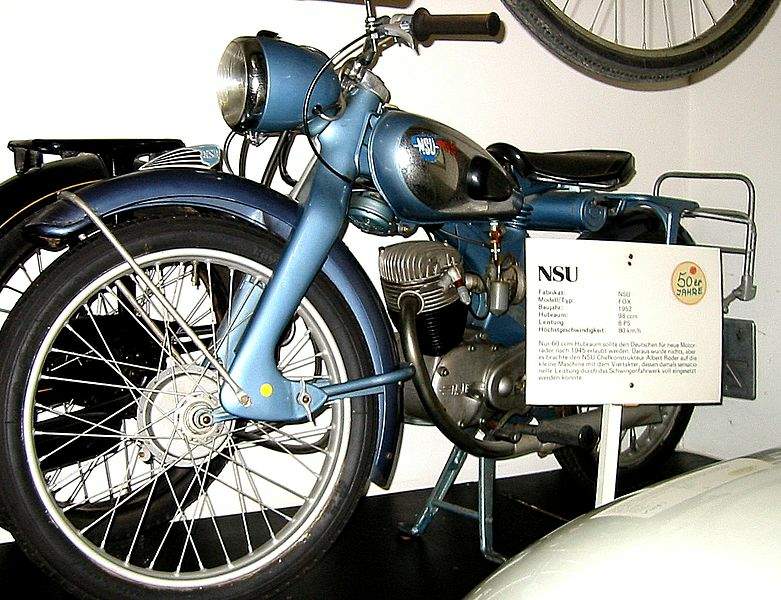

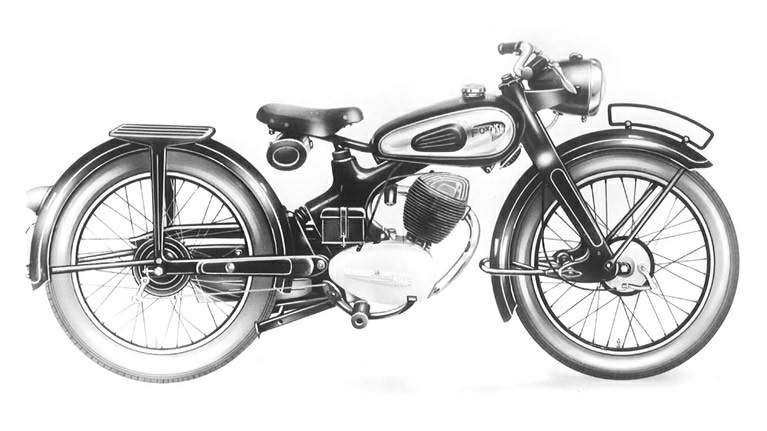

NSU Fox is produced in 1949-54. Engine is Single cylinder, OHC, displacement 98 cc / 6 cub in , produces power 4.4 kW / 6 hp @ 6500 rpm. NSU Fox top speed is 85 km/h / 52.8 mph. NSU Fox has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: Fox
Years: 1949-54
Engine: Single cylinder, OHC
Capacity: 98 cc / 6 cub in
Bore x Stroke: 50 x 50
Cooling: Air/Oil cooled
Lubrication: Oil pump
Starting: Kick start
Spark plug: W225 T1
Exhaust System: Single exhaust
Max Power: 4.4 kW / 6 hp @ 6500 rpm
Compression: 1:6
Transmission: 3 Speed, (since 1950: 4 speed)
Final Drive: Chain in oil bath
Font Suspension: Coil springs . with adjustable friction dampers
Rear Suspension: Short swingarm with central coil spring, with adjustable friction dampers
Frame: Central clamping frame, pressed steel
Dimensions: Length 1910 mm / 75.2 in
Wheelbase: 1220 mm / 48 in.
Wheels: 19 x 2.5 in, spokes, high pressure tyres
Rear Brake: Internal shoe
Tank Capacity: 6.5 l / 1.7 US gal (Since 1950: 8 l / 2.1 US gal)
Average Consumption: 1.9 l/100 km / 52.6 km/l / 123.9 mpg
Top Speed: 85 km/h / 52.8 mph
