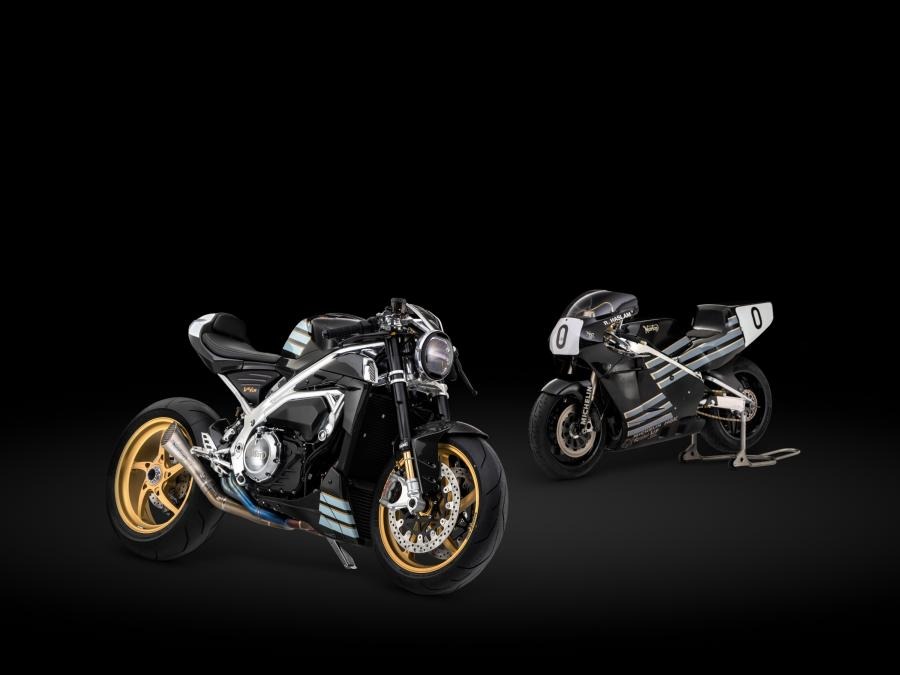

Norton V4CR Caf? Racer 125th Anniversary (2024) technical specifications
Norton V4CR Caf? Racer 125th Anniversary is produced in 2024. Engine is Four stroke, 72 ? V-four cylinder, chain-driven cams with idler gear for reduced engine height. Titanium inlet valves., displacement 1200 cc / 73.2 cu-in , produces power 185 hp / 136 kW @ 12500 rpm and 125 Nm / 92.1 ft-lb @ 9000 rpm. Norton V4CR Caf? Racer 125th Anniversary wet weight is 193 kg / 447 lbs. Norton V4CR Caf? Racer 125th Anniversary has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | V4CR Caf? Racer 125th Anniversary |
| Years: | 2024 |
| Engine: | Four stroke, 72 ? V-four cylinder, chain-driven cams with idler gear for reduced engine height. Titanium inlet valves. |
| Capacity: | 1200 cc / 73.2 cu-in |
| Bore x Stroke: | 82 x 56.8 mm |
| Compression Ratio: | 13.6:1 |
| Cooling System: | Liquid-cooled |
| Induction: | Electronic fuel-injection system, 8-fuel injectors. Full drive-by-wire system independent on front and rear banks of cylinders for ultimate control and feel |
| Electronic Aids: | Linked to rider-mode: Lean-angle sensitive Traction-control using six-axis Inertial Measurement Unit (IMU). Front and rear ABS. Wheelie control. |
| Ignition: | Keyless ignition system with electronic steering lock |
| Starting: | Electric |
| Max Power: | 185 hp / 136 kW @ 12500 rpm |
| Max Torque: | 125 Nm / 92.1 ft-lb @ 9000 rpm |
| Transmission: | Full quickshift system and auto down blipper |
| Final Drive: | Chain |
| Chassis: | Aluminium tubular chassis. Aerospace 5-axis CNC machined outriggers and headstock. Frame is hand TIG welded at Norton HQ and hand-polished to a mirror finish |
| Swingarm: | Braced and underslung single-sided billet swingarm with rising rate linkage geometry developed from the TT race bikes |
| Front Suspension: | 43mm ?hlins NIX30 system front fork. Fully adjustable |
| Rear Suspension: | ?hlins TTXGP Norton bespoke fully adjustable rear shock |
| Front Brakes: | 2 x 330mm floating discs. Radially mounted Brembo monobloc calipers. Brembo discs, and Brembo master cylinder |
| Rear Brakes: | Single 245mm rear disc. Brembo caliper and master-cylinder |
| Wheels: | Carbon model: Carbon fibre BSTs Manx model: Oz racing forged aluminium |
| Headstock Angle: | 23.5? |
| Wheelbase: | 1435 mm / 56.4 in |
| Wet Weight: | 193 kg / 447 lbs |
| Fuel Capacity: | 15 Litres / 3.9 US gal |
