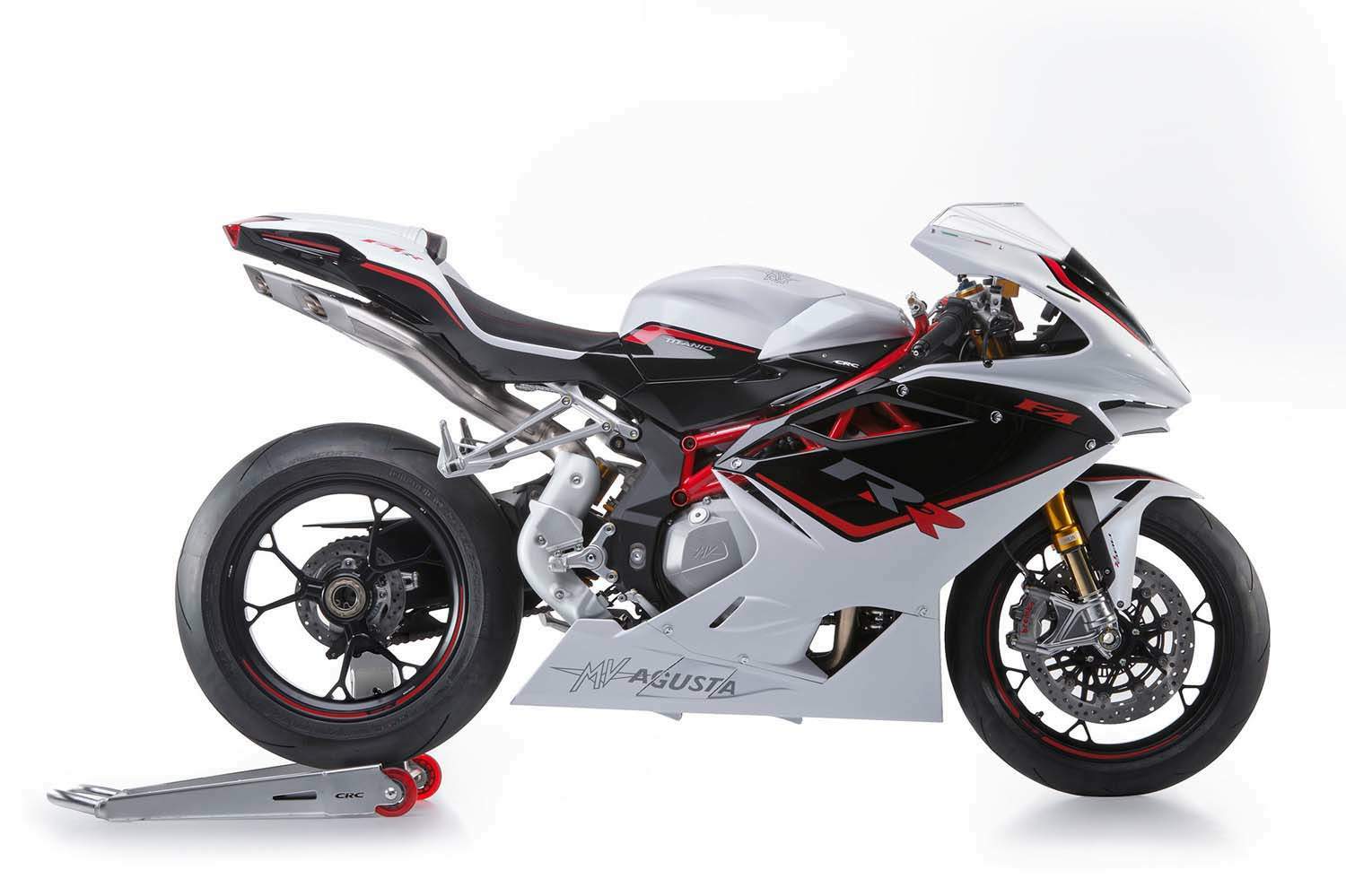

MV Agusta F4RR (2015) technical specifications

MV Agusta F4RR is produced in 2015. Engine is Four stroke, transverse four cylinder. DOHC, 4 radial valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 143.5 kW / 195 hp @ 13400 rpm and 110.8 Nm / 11.3 kgm @ 9600 rpm. MV Agusta F4RR weighs 190 Kg / 418.9 lb. MV Agusta F4RR has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	F4RR
Years:	2015
Engine:	Four stroke, transverse four cylinder. DOHC, 4 radial valves per cylinder
Capacity:	998 cc / 60.9 cu-in
Bore x Stroke:	76 x 55 mm
Compression Ratio:	13.4:1
Cooling System:	Liquid cooled,
Lubrication:	Wet sump
Engine Management:	Integrated ignition - injection system MVICS (Motor & Vehicle Integrated Control System) with eight injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire, Torque control with four maps, Traction Control with eight levels of intervention with lean angle sensor, EAS
Electronically:	Assisted Shift - TSS Torque Shift System employing variable length intake runners
Alternator:	350 W at 5000 r.p.m.
Battery:	12 V - 8.6 Ah
Starting:	Eelectric
Max Power:	143.5 kW / 195 hp @ 13400 rpm
Max Torque:	110.8 Nm / 11.3 kgm @ 9600 rpm
Clutch:	Wet, multi-disc with back torque limiting device
Transmission:	Cassette styl 6 Speed
Final Drive:	Chain
Primary Drive:	48/82
Gear Ratio:	1st: 14/37 2nd : 16/33 3rd 18/31 4th 20/30 5th 22/29 6th 21/25
Final Drive Ratio:	15/41
Frame:	Type CrMo Steel tubular trellis Rear swing arm pivot plates material Aluminium alloy
Front Suspension:	43mm Öhlins EC Nix hydraulic "UPSIDE DOWN" front forks with TiN superficial treatment. Completely adjustable electronically controlled compression and rebound damping with manual, spring preload
Front Wheel Travel:	120 mm / 4.72 in
Rear Suspension:	Progressive, single shock absorber Öhlins TTX. Fully adjustable hydraulic electronically controlled compression and rebound damping with manual, spring preload Single sided swing arm material Aluminium alloy
Rear Wheel Ttavel:	120 mm / 4.72 in
Front Brakes:	2x 320mm floating discs and aluminium flange, Brembo radial-type, single-piece with 4 pistons calippers
Rear Brakes:	Single 210mm disc Nissin with 4 pistons caliper
Rim Front:	Aluminium alloy 3,50 in x 17 in
Rim Rear:	Aluminium alloy 6,00 in x 17 in
Front Tyre:	120/70 ZR17
Rear Tyre:	200/55 ZR17
Trail:	100,4 mm / 3.93 in.
Dimensions:	Length 2115 mm / 83.3 in Width 750 mm / 29.5 in
Wheelbase:	1430 mm / 56.2 in
Seat Height:	830 mm / 2.6 in
Ground Clearance:	115 mm / 4.7 in
Dry-Weight:	190 Kg / 418.9 lb
Fuel Capacity:	17 Litres / 4.4 US gal.
