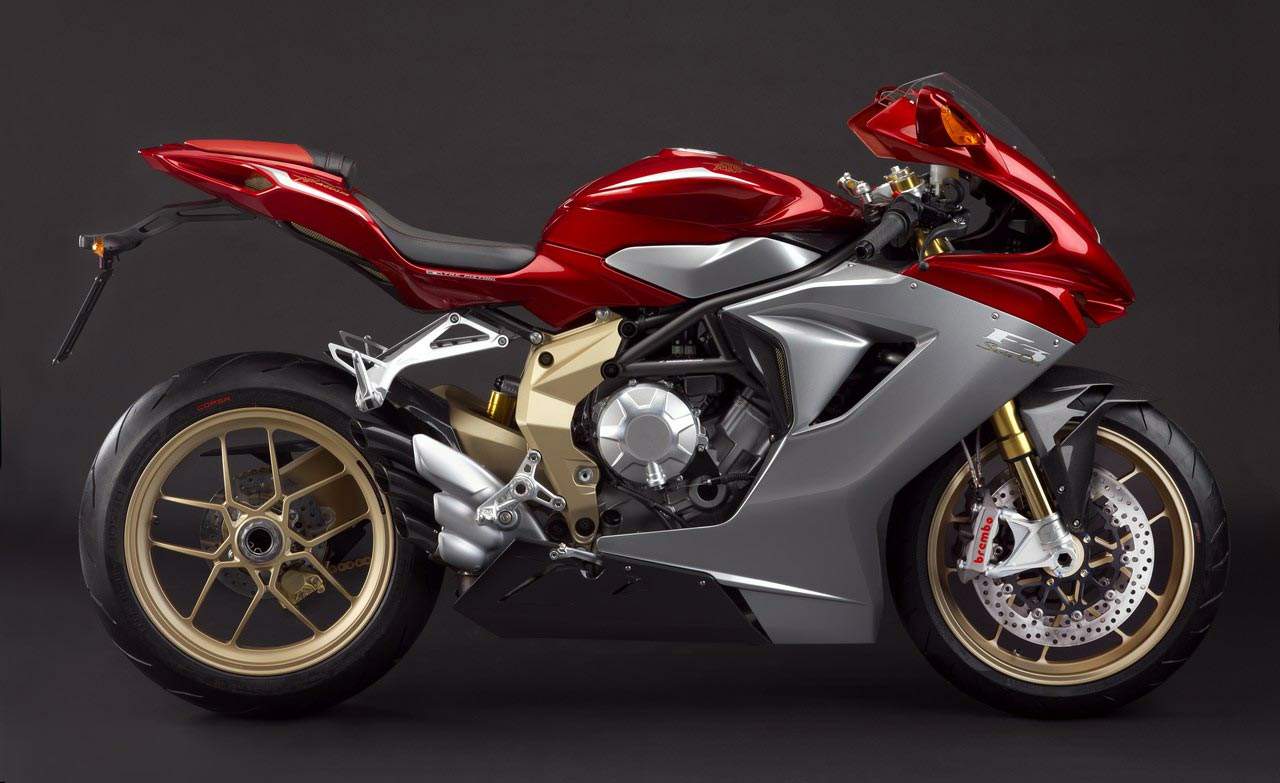

MV Agusta F3 675 Serie Oro (2012) technical specifications

MV Agusta F3 675 Serie Oro is produced in 2012. Engine is Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder,, displacement 675 cc / 41.1 cu-in , produces power 94.2 kW / 126 hp @ 14400 rpm - Lim. 15000 rpm. and 71 Nm / 7.24 kgm @ 10600 rpm.. MV Agusta F3 675 Serie Oro top speed is 258.5 km/h / 160.3 mph. MV Agusta F3 675 Serie Oro weighs 173 kg / 381.4 lbs. MV Agusta F3 675 Serie Oro has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	F3 675 Serie Oro
Years:	2012
Engine:	Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder,
Capacity:	675 cc / 41.1 cu-in
Bore x Stroke:	79 x 45.9 mm
Compression Ratio:	13.0:1
Cooling System:	Liquid Cooled
Induction:	Integrated ignition - injection system with six injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire Torque control with four maps, Traction Control with eight levels of intervention
Ignition:	Digital CDI
Alternator:	350 W @ 5000 r.p.m.
Battery:	12 V - 8.6 Ah
Starting:	Electric
Max Power:	94.2 kW / 126 hp @ 14400 rpm - Lim. 15000 rpm.
Max Torque:	71 Nm / 7.24 kgm @ 10600 rpm.
Clutch:	Wet, multiple discs, cable operated
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st : 1/14.493 2nd: 1/10.821 3rd: 1/9.053 4th: 1/8.040 5th: 1/7.274 6th: 1/6.712
Final Drive Ratio:	16/43
Frame:	ALS Steel tubular trellis, Rear swing arm pivot plates: material Aluminium alloy
Front Suspension:	43mm “UPSIDE - telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment,
Front Wheel Travel:	125 mm / 4.9 in
Rear Suspension:	Progressive, single shock absorber with rebound and compression (High speed/ Low speed) damping and spring preload adjustment
Rear Wheel Travel:	123 mm / 4.84 in
Front Brakes:	2x 320mm Double floating discs, 4 pistons calipers
Rear Brakes:	Single 220mm disc, single piston calipers
Rim Front:	Material/size Aluminium alloy 3.50 ” x 17 ”
Rim Rear:	Material/size Aluminium alloy 5.50 ” x 17 ”
Front Tyre:	120/70-ZR17
Rear Tyre:	190/55-ZR17
Trail:	99 mm / 3.89 in.
Rake:	23.6°
Dimensions:	Length 2060 mm./ 81.0 in Width 725 mm / 28.5 in Saddle height 805 mm / 31.6 in
Wheelbase:	1380 mm / 54.3 in
Seat Height:	812 mm / 31.9 in
Min. ground Clearance:	125 mm / 4.9 in
Dry Weight:	173 kg / 381.4 lbs
Fuel Capacity:	16 Litres / 4.2 US gal
Consumption average:	17.9 km/lit
Standing ¼ Mile:	11.1 sec
Top Speed:	258.5 km/h / 160.3 mph
