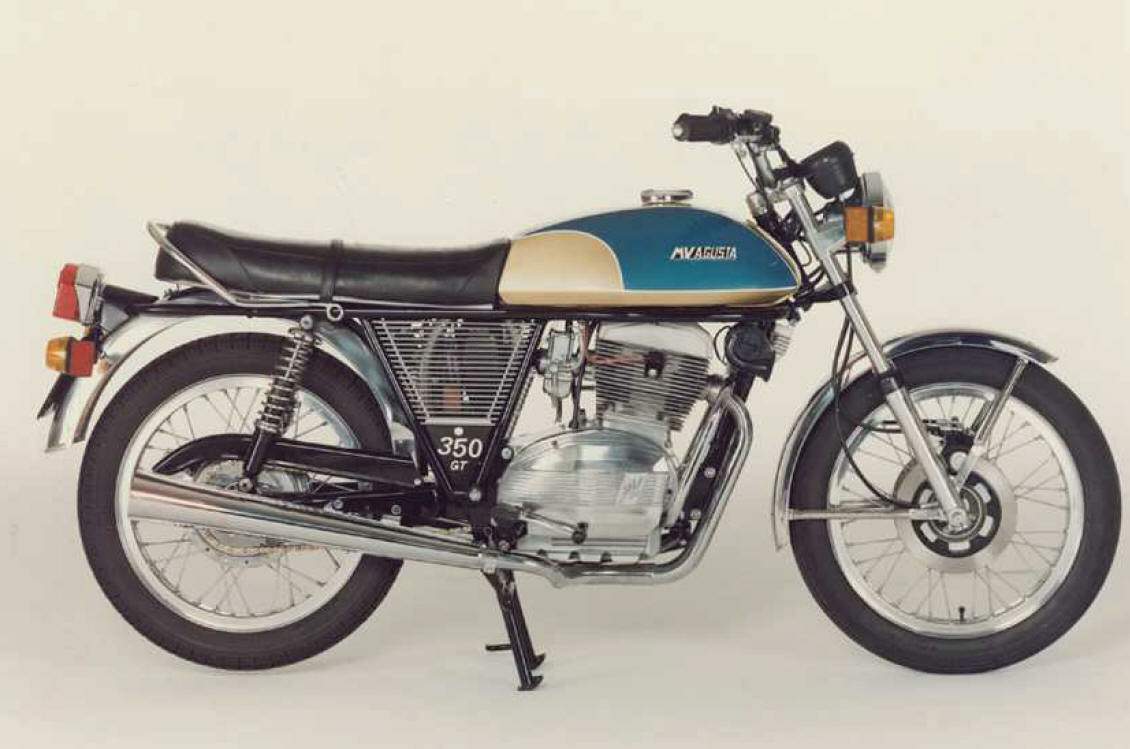

MV Agusta 350 Turismo Ipotesi (1976-77) technical specifications
MV Agusta 350 Turismo Ipotesi is produced in 1976-77. Engine is Four stroke, 20° inclination parallel twin cylinder, OHV engine with rocker support, displacement 349 cc / 21.3 cu-in , produces power 28 hp / 20.8 kW @ 7600 rpm. MV Agusta 350 Turismo Ipotesi has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 350 Turismo Ipotesi |
| Years: | 1976-77 |
| Engine: | Four stroke, 20° inclination parallel twin cylinder, OHV engine with rocker support |
| Capacity: | 349 cc / 21.3 cu-in |
| Bore x Stroke: | 63 x 56 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.2:1 |
| Lubrication: | Wet sump |
| Induction: | 2x 24mm Dell'Orto carburetors |
| Ignition: | Electronic |
| Starting: | Kick |
| Max Power: | 28 hp / 20.8 kW @ 7600 rpm |
| Clutch: | Wet multiple plate clutch |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Frame: | Single beam tubular and pressed steel |
| Front Suspension: | Telescopic hydraulic fork |
| Rear Suspension: | Swinging arm fork with adjustable hydraulic shock absorbers |
| Front Brakes: | 2x 230 mm hydraulic discs |
| Rear Brakes: | 200mm Drum |
| Front Tyre: | 2.75-18 |
| Rear Tyre: | 3.25-18 |
| Dimensions: | Length: 1960 mm / 77.1 in Width: 620 mm / 24.4 in |
| Wheelbase: | 1300 mm / 51.1 in |
| Weight: | 160 kg / 352 lbs |
| Fuel Capacity: | 19 Litres / 5.0 US gal |
