Moto Guzzi V85 TT Guardia d’Onore (2022) technical specifications

Moto Guzzi V85 TT Guardia d’Onore technical specifications

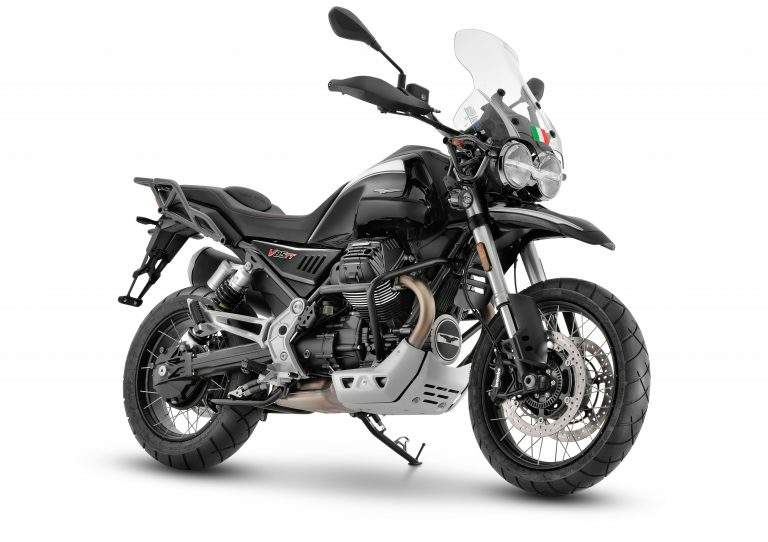

Moto Guzzi V85 TT Guardia d’Onore is produced in 2022. Engine is Four stroke, Transversal 90° V-twin, 2-valves per cylinder, titanium intake, displacement 853 cc / 52.0 cu in , produces power 76 hp / 56 kW @ 7500 rpm (Also available at 35 kW, A2 driver license) and 82 Nm / 60.4 lb-ft @ 5000 rpm. Moto Guzzi V85 TT Guardia d’Onore weighs 209 kg / 460.7 lbs. Moto Guzzi V85 TT Guardia d’Onore has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: V85 TT Guardia d’Onore
Years: 2022
Engine: Four stroke, Transversal 90° V-twin, 2-valves per cylinder, titanium intake
Capacity: 853 cc / 52.0 cu in
Bore x Stroke: 84 x 77 mm
Cooling System: Air/oil cooled
Compression Ratio: 10.5:1
Emission: EURO5
Induction: Electronic injection; Ø 52 mm single throttle body, Ride-by-Wire
Ignition: Electronic
Starting: Electric
Max Power: 76 hp / 56 kW @ 7500 rpm (Also available at 35 kW, A2 driver license)
Max Torque: 82 Nm / 60.4 lb-ft @ 5000 rpm
Clutch: Dry single disc
Transmission: 6 Speed
Final Drive: Shaft, double universal joint and double bevel gear units, 8:33 ratio
Gear Ratios: 1st 16/39 = 1: 2.437 2nd 18/32 = 1: 1.778 3rd 21/28 = 1: 1.333 4th 24/26 = 1: 1.083 5th 25/24 = 1: 0.960 6th 27/24 = 1: 0.889
Frame: High strength steel tubular frame
Front Suspension: 41 mm hydraulic telescopic USD fork, with adjustable spring preload and hydraulic rebound
Front Wheel Travel: 170 mm / 6.7 in
Rear Suspension: Swingarm Twin-sided with lateral mono shock absorber, adjustable extension and spring preload
Rear Wheel Travel: 170 mm / 6.7 in
Front Brakes: 2x 320mm stainless steel floating discs, Brembo radial-mounted calipers with 4 opposed pistons
Rear Brakes: Single 260 mm stainless steel disc, floating caliper with 2 pistons
ABS: Standard double channel ABS
Wheels: Cross Spoked
Front Wheel: 2.50 x 19
Rear Wheel: 4.25 x 17
Front Tyre: 110/80 – R19 With air chamber
Rear Tyre: 150/70 – R17 With air chamber
Seat Height: 830 mm / 32.6 in
Dry Weight: 209 kg / 460.7 lbs
Wet Weight: 230 kg / 507 lbs
Fuel Capacity: 23 Litres / 6.0 US gal
