Moto Guzzi Sport 1100 EFI (1996-98) technical specifications

Moto Guzzi Sport 1100 EFI technical specifications

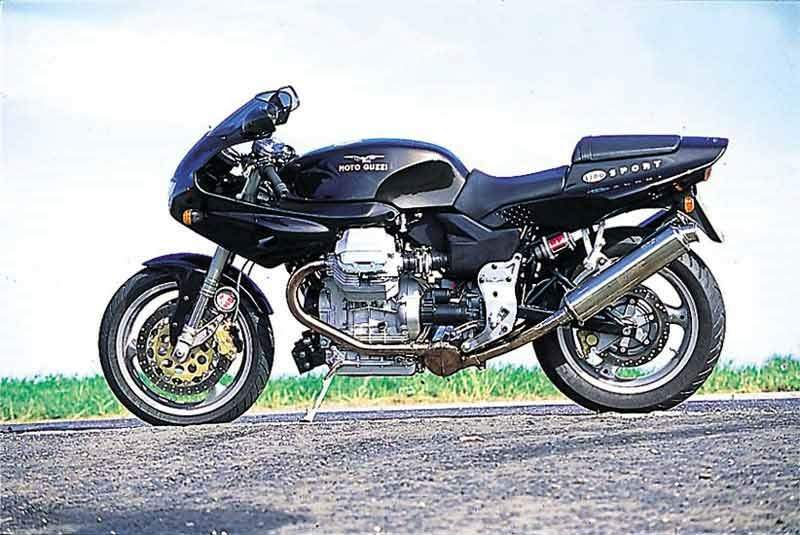

Moto Guzzi Sport 1100 EFI is produced in 1996-98. Engine is Four stroke, V twin, longitudinally mounted, light alloy push-rod, 2 valves per cylinder, displacement 1064 cc / 64.9 cu-in , produces power 90 hp / 65.7 kW @ 7800 rpm and 95 Nm / 9.4 kgf-m @ 5800 rpm. Moto Guzzi Sport 1100 EFI top speed is 231.8 km/h. Moto Guzzi Sport 1100 EFI weighs 221 kg / 487 lbs. Moto Guzzi Sport 1100 EFI has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: Sport 1100 EFI
Years: 1996-98
Engine: Four stroke, V twin, longitudinally mounted, light alloy push-rod, 2 valves per cylinder
Capacity: 1064 cc / 64.9 cu-in
Bore x Stroke: 92 x 80 mm
Cooling System: Air cooled
Compression Ratio: 9.5:1
Induction: Weber Marelli electronic injection with one injector per cylinder. Alfa-n system, electric fuel pump with pressure regulator, optimized digital control of injection times and high efficiency air filter with 2 dynamic intakes.
Lubrication: High volume geared pressure pump, pressure regulator, thermostatic valve and cooling radiator
Ignition: Weber Marelli digital electronic ignition with inductive spark and high efficiency coils
Starting: Electric
Max Power: 90 hp / 65.7 kW @ 7800 rpm
Max Power Rear Tyre: 81.9 hp @ 6900 rpm
Max Torque: 95 Nm / 9.4 kgf-m @ 5800 rpm
Clutch: Double disc, dry type
Transmission: 5 Speed
Final Drive: Shaft
Frame: Chrome-molybdenum single steel beam, rectangular section with engine as stressed member
Front Suspension: 40mm Upside-down hydraulic telescopic WP forks, adjustable for compression and rebound damping
Rear Suspension: WP hydraulic monoshock cantilever swing arm, adjustable for pre-load compression and rebound damping
Front Brakes: 2x 320mm disc 2 piston calipers
Rear Brakes: Single 282mm disc
Front Tyre: 120/70 ZR17
Rear Tyre: 160/60 ZR18
Seat Height: 730 mm / 28.7 in
Dimensions: Length 475 mm / 58 in
Dry Weight: 221 kg / 487 lbs
Fuel Capacity: 19 Litres / 5.0 US gal
Consumption average: 39 mp/g
Standing ¼ Mile: 12.7 sec / 105.5 mp/h
Braking 60 - 0 / 100 - 0: 13.9m / 38.5m
Top Speed: 231.8 km/h
