Moto Guzzi NTX 750 (1989-95) technical specifications

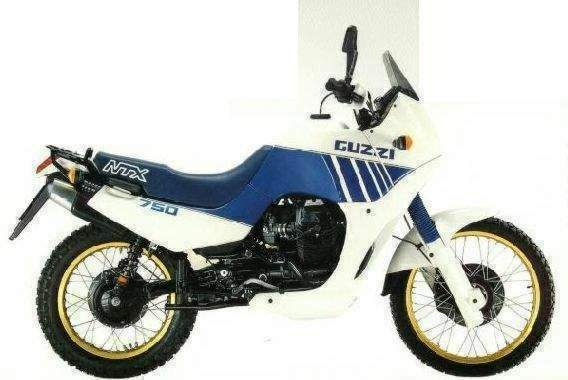

Moto Guzzi NTX 750 is produced in 1989-95. Engine is Four stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder., displacement 743.8 cc / 45.4 cu-in , produces power 52 hp / 38 kW @ 6600 rpm and 59 Nm / 6.1 kgf-m @ 4700 rpm. Moto Guzzi NTX 750 top speed is 164.8 km/h. Moto Guzzi NTX 750 wet weight is 202.0 kg / 445.3 lbs. Moto Guzzi NTX 750 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | NTX 750 |
| Years: | 1989-95 |
| Engine: | Four stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder. |
| Capacity: | 743.8 cc / 45.4 cu-in |
| Bore x Stroke: | 84 x 74 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.7:1 |
| Induction: | 2x 30mm Dell'Orto carburetors |
| Ignition: | Electronic |
| Starting: | Electric |
| Max Power: | 52 hp / 38 kW @ 6600 rpm |
| Max Power Rear Tyre: | 46.1 hp @ 6300rpm |
| Max Torque: | 59 Nm / 6.1 kgf-m @ 4700 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Front Suspension: | Telescopic forks non adjustable |
| Rear Suspension: | Dual shock air assisted, 5-way preload adjustment. |
| Front Brakes: | Single 260mm disc |
| Rear Brakes: | Single 260mm disc |
| Front Tyre: | 3.00 S21 |
| Rear Tyre: | 4.00 S18 |
| Wet Weight: | 202.0 kg / 445.3 lbs |
| Fuel Capacity: | 33 Litres / 8.7 US gal |
| Consumption Average: | 15.0 km/lit |
| Braking 60 - 0 / 100 - 0: | 15.6 m / 42.2 m |
| Standing ¼ Mile: | 14.4 sec / 141.3 km/h |
| Top Speed: | 164.8 km/h |
| Related links: | Moto Guzzi V-Twin Off Roaders - Improbable Italian Enduros |
