Moto Guzzi Griso 1200 8V S.E. (2009-10) technical specifications

Moto Guzzi Griso 1200 8V S.E. technical specifications

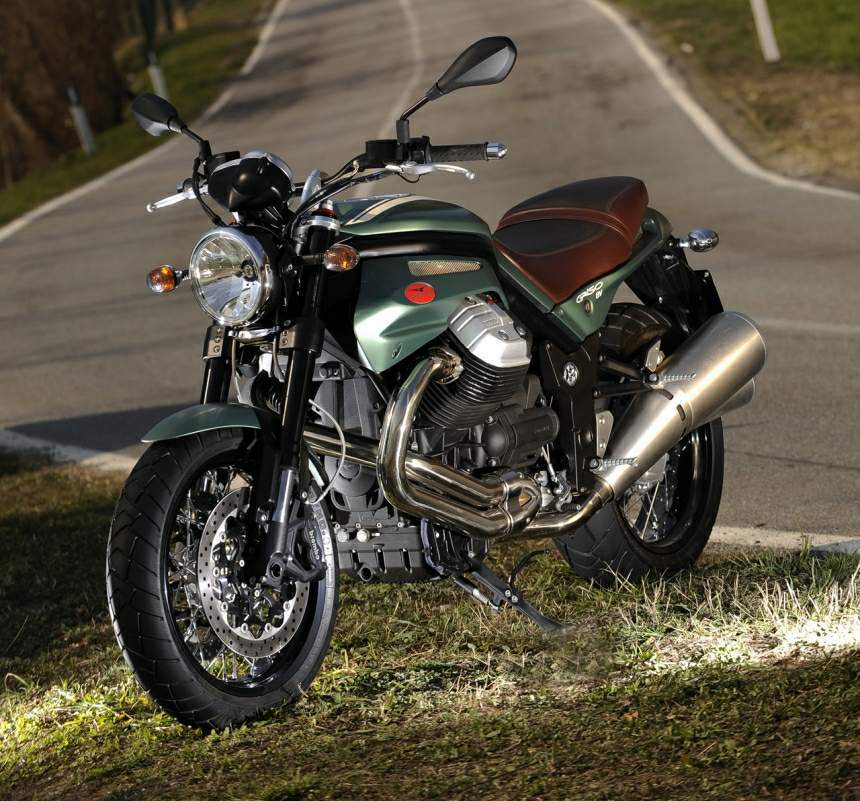

Moto Guzzi Griso 1200 8V S.E. is produced in 2009-10. Engine is Four stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder., displacement 1151 cc / 70.2 cu-in , produces power 80.8 kW / 108.3 hp @ 7500 rpm and 108 Nm / 80 lb-ft @ 6400 rpm. Moto Guzzi Griso 1200 8V S.E. top speed is 210 km/h. Moto Guzzi Griso 1200 8V S.E. weighs 222 kg / 489 lbs. Moto Guzzi Griso 1200 8V S.E. has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Griso 1200 8V S.E.
Years: 2009-10
Engine: Four stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Capacity: 1151 cc / 70.2 cu-in
Bore x Stroke: 95 x 81.2 mm
Cooling System: Air cooled
Compression Ratio: 11.0:1
Lubrication: Wet sump
Exhaust: Stainless steel two-into-one 3-way catalysed with Lambda probe.
Induction: Multipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x Ø50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe.
Ignition: Inductive discharge, digitally controlled, electronic twin spark ignition
Spark Plugs: NGK PMR8B (Long Life)
Starting: Electric
Max Power: 80.8 kW / 108.3 hp @ 7500 rpm
Max Torque: 108 Nm / 80 lb-ft @ 6400 rpm
Clutch: Single plate with integrated flexible couplings
Transmission: 5 Speed
Final Drive: Shaft
Gear Ratio: 1st 17/38 = 1 : 2.235 2nd 20/34 = 1 : 1.700 3rd 23/31 = 1 : 1.348 4th 26/29 = 1 : 1.115 5th 31/30 = 1 : 0.968 6th 29/25 = 1 : 0.862
Frame: High tensile steel tubular twin cradle
Front Suspension: Upside down Ø 43 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
Front Wheel Travel: 120 mm / 4.7
Rear Suspension: Progressive single swingarm, fully adjustable monoshock with separate gas reservoir spring preload and hydraulic for rebound and compression.
Rear Wheel Travel: 110 mm / 4.3 in
Front Brakes: 2x 320 mm discs 4 piston calipers
Rear Brakes: Single 282mm disc 2 piston caliper
Wheels: Tubeless spoke wheels with aluminium Ber rim and Alpina spokes.
Front wheel: 3.50” x 17”
Rear whee: l 5.50” x 17”
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Steering angle: 34°
Rake: 26.3°
Trail: 108 mm / 4.2 in
Dimensions: Length 2260 mm / 89.0 in Width 830 mm / 32.6 in Height 1070 mm / 42.1 in
Wheelbase: 1554 mm / 61.0 in
Seat Height: 800 mm / 31.4 in
Ground Clearance: 185 mm / 7.28 in
Dry Weight: 222 kg / 489 lbs
Fuel Capacity: 16.7 Litres / 4.5 gal
Consumption Average: 6,1 L/100 km
Standing 0 - 100km: 3.5 sec
Standing 0 - 140km: 6.1 sec
Standing 0 - 200km: 14,2 sec
Acceleration 60-140 km/h: 8,3 sec
Acceleration 60-100: 3,9 sec
100-140 km/h: 4.4 sec
140-180 km/h: 5,3 sec
Top Speed: 210 km/h
