KTM 990 Duke R (2025) technical specifications

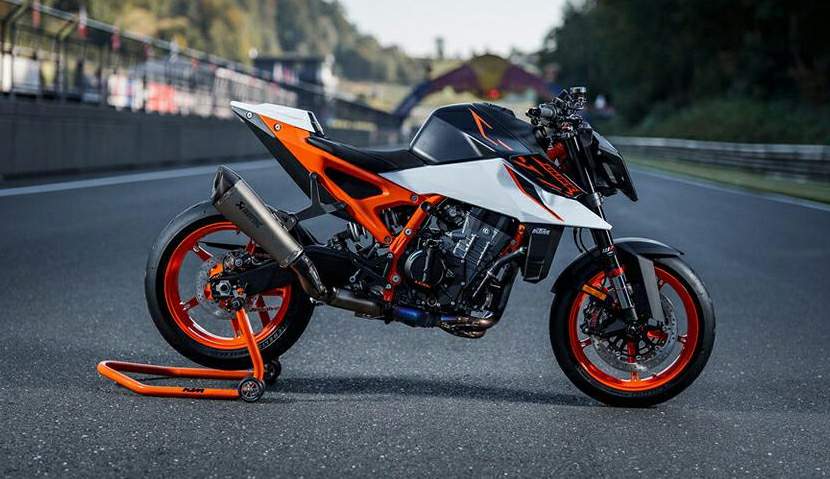

KTM 990 Duke R is produced in 2025. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder, displacement 947 cc / 57.8 cu-in , produces power 121 hp / 90.59 kW @ 9250 rpm and 103 Nm / 75.9 lb-ft @ 7750 rpm. KTM 990 Duke R wet weight is 190 kg 419 lbs. KTM 990 Duke R has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	990 Duke R
Years:	2025
Engine:	Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity:	947 cc / 57.8 cu-in
Bore x Stroke:	92.5 x 70.4
Cooling System:	Liquid cooled with water/oil heat exchanger
Compression Ratio:	13.5:1
Lubrication:	Forced oil lubrication with 2 oil pumps
Emission:	EURO 5
Engine Management:	Bosch EMS with RBW
Starting:	Electric
Max Power:	121 hp / 90.59 kW @ 9250 rpm
Max Torque:	103 Nm / 75.9 lb-ft @ 7750 rpm
Clutch:	PASC? antihopping clutch, mechanically operated
Transmission:	6-Speed
Primary Drive:	42/76
Final Drive:	Chain 520 X-ring, 16/43
Frame:	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension:	WP APEX, Compression High Speed (3 turns) Low Speed (30 Clicks), Rebound (30 Clicks), Preload (10 turns)
Front Wheel Travel:	143 mm / 5.6 in
Rear Suspension:	WP APEX - Monoshock
Rear Wheel Travel:	140 mm / 5.5 in
Front Brakes:	2x 300mm discs, radially mounted BREMBO STYLEMA 4 piston caliper
Rear Brakes:	Single 240 mm disc, single piston BREMBO caliper
ABS:	Standard
Wheels:	Cast aluminium
Front Wheel:	17 x 3.5
Rear Wheel:	17 x 5.5
Front Tyre:	120/70-17
Rear Tyre:	180/55-17
Rake:	24.2?
Steering Head Angle:	65.8?
Wheelbase:	1481 mm / 58.3 in
Seat Height:	840 mm / 33.1 in
Ground Clearance:	210 mm / 8.3 in
Wet Weight:	190 kg 419 lbs
Fuel Capacity:	14.8 litres / 3.9 US gal
