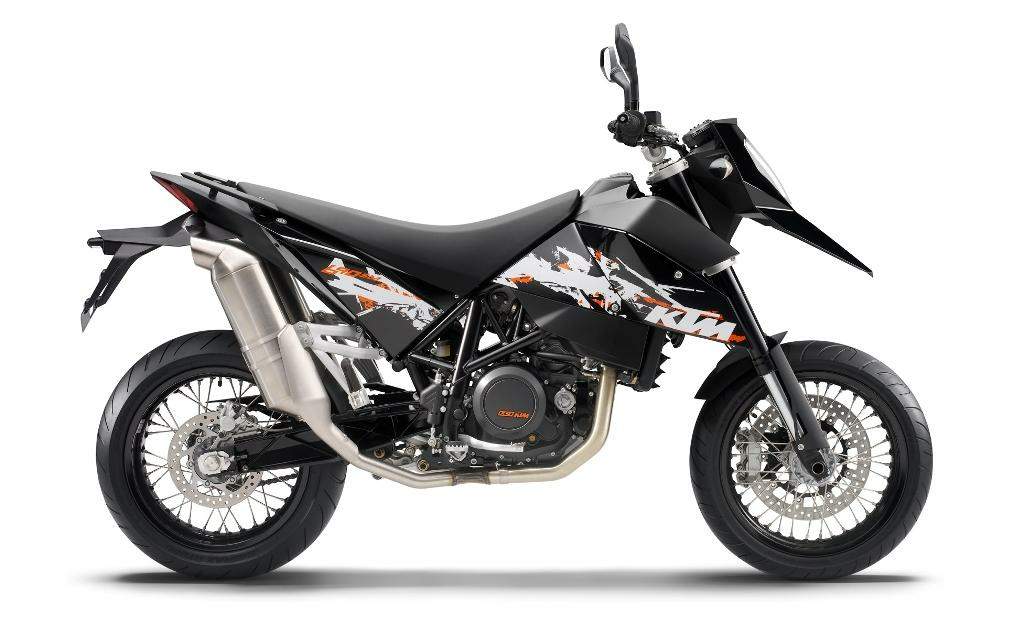

KTM 690 LC4 Supermoto Limited Edition (2009) technical specifications
KTM 690 LC4 Supermoto Limited Edition is produced in 2009. Engine is Four stroke, single Cylinder. SOHC, 4 Valve, displacement 653.7 , produces power 63 hp / 46.kW @ 7500 rpm and 65 Nm / 47.9 ft-lb @ 6550 rpm. KTM 690 LC4 Supermoto Limited Edition weighs 152 kg / 335 lbs. KTM 690 LC4 Supermoto Limited Edition has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 690 LC4 Supermoto Limited Edition |
| Years: | 2009 |
| Engine: | Four stroke, single Cylinder. SOHC, 4 Valve |
| Capacity: | 653.7 |
| Bore x Stroke: | 102 x 80 mm |
| Cooling System: | Liquid Cooled |
| Compression Ratio: | 11.7:1 |
| Induction: | Generation Keihin EMS with EPT (Electric Power Throttle) |
| Ignition: | Kokusan DC-CDI |
| Battery: | 12 V / 8.6 Ah |
| Starting: | Electric |
| Max Power: | 63 hp / 46.kW @ 7500 rpm |
| Max Torque: | 65 Nm / 47.9 ft-lb @ 6550 rpm |
| Clutch: | APTC multi-disc wet clutch, hydraulically operated |
| Transmission: | 6 Speed |
| Final Drive: | Chain: X-ring 5/8 x 1/4" |
| Frame: | Chromoly trellis frame, powder-coated |
| Front Suspension: | WP Upside-down forks |
| Front Wheel Travel: | 210 mm / 8.2 in |
| Rear Suspension: | WP monoshock |
| Rear Wheel Travel: | 210 mm / 8.2 in |
| Front Brakes: | Single 320mm disc |
| Rear Brakes: | Single 240mm disc |
| Front Rim: | 3.5 x 17" |
| Rear Rim: | 5.0 x 17" |
| Front Tyre: | 120/70 -17 |
| Rear Tyre: | 160/60 -17 |
| Steering head angle:: | 64° |
| Trail: | 112 mm / 4.4 in |
| Wheel base: | 1460±15 mm / 57.48±0.5 in |
| Seat Height: | 875 mm / 34.5 in |
| Dry Weight: | 152 kg / 335 lbs |
| Fuel Capacity: | 13.2 Litres / 3.4 US gal |
