Kawasaki ZZ-R 1200 / ZX-12C (2004) technical specifications

Kawasaki ZZ-R 1200 / ZX-12C technical specifications

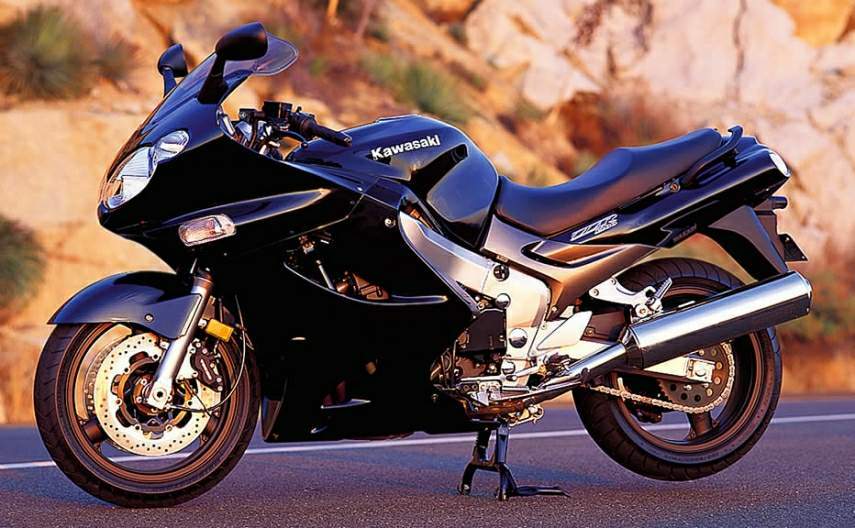

Kawasaki ZZ-R 1200 / ZX-12C is produced in 2004. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 1164 cc / 71.0 cu-in , produces power 158.8 hp / 116.8 kW @ 9800 rpm and 164 Nm / 121 lb-ft @ 8200 rpm. Kawasaki ZZ-R 1200 / ZX-12C weighs 236 kg / 520 lbs.. Kawasaki ZZ-R 1200 / ZX-12C has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZZ-R 1200 / ZX-12C
Years: 2004
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 1164 cc / 71.0 cu-in
Bore x Stroke: 78 x 59 mm
Compression Ratio: 10.6:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Engine Oil: Synthetic, 10W/40
Induction: 4x Keihin CVKD40, TPS
Ignition: Digital ignition
Starting: Electric
Max Power: 158.8 hp / 116.8 kW @ 9800 rpm
Max Torque: 164 Nm / 121 lb-ft @ 8200 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: Chain
Frame: Aluminum perimeter design
Front Suspension: Cartridge-style fork with preload adjustment
Front Wheel Travel: 123 mm / 4.8 in
Rear Suspension: UNI-TRAK® system with remote reservoir shock with preload adjustment
Rear Wheel Travel: 123 mm / 4.8 in
Front Brakes: 2x 320mm discs 6 piston calipers
Rear Brakes: Single 250mm disc 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55-ZR17
Rake: 25°
Trail: 106 mm / 4.1 in
Dimensions: Length 2160 mm / 85 in Width 754 mm / 29.7 in Height 1245 mm / 49 in
Wheelbase: 1500 mm / 59.3 in
Seat Height: 800 mm / 31.5 in
Ground Clearance: 130 mm / 5.1 in.
Dry Weight: 236 kg / 520 lbs.
Wet Weight: 270 kg / 595 lbs
Fuel Capacity: 23 Litres / 6.0 US gal
