Kawasaki ZN 700 LTD (1984) technical specifications

Kawasaki ZN 700 LTD technical specifications

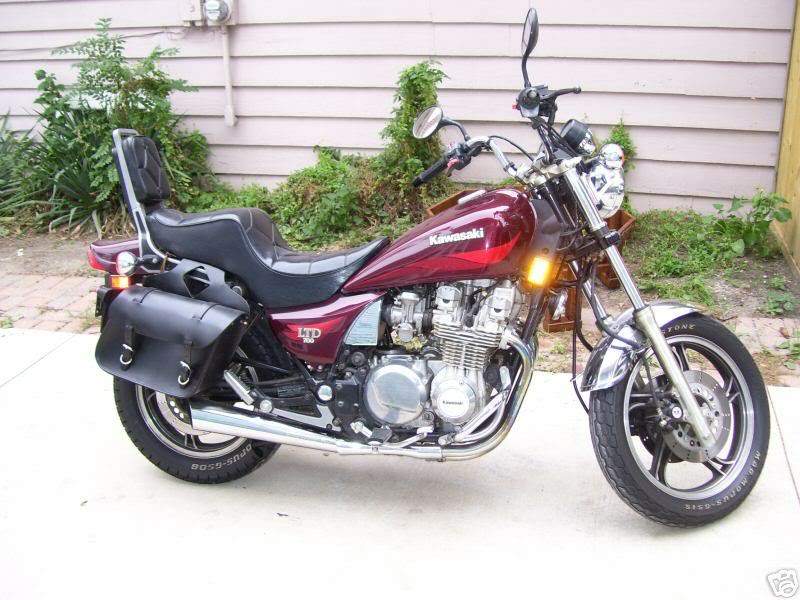

Kawasaki ZN 700 LTD is produced in 1984. Engine is Four stroke, inline four, 2 valves per cylinder, DOHC, displacement 694 cc / 42.4 cu in , produces power 54 kW / 74 hp @ 9500 rpm. Kawasaki ZN 700 LTD weighs 217 kg / 478 lbs. Kawasaki ZN 700 LTD has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZN 700 LTD
Years: 1984
Engine: Four stroke, inline four, 2 valves per cylinder, DOHC
Capacity: 694 cc / 42.4 cu in
Bore x Stroke: 64 x 54 mm
Cooling System: Air cooled
Compression Ratio: 9.7:1
Lubrication: Wet sump
Exhaust: Dual stainless steel megaphone pipes
Induction: Kehin CV34 x 4 carburetors
Ignition: CDI
Starting: Electric
Max Power: 54 kW / 74 hp @ 9500 rpm
Clutch: Wet, multiplate
Transmission: 5-Speed
Final Drive: Shaft
Frame: Tubular, double cradle
Front Suspension: Telescopic fork
Front Wheel Travel: 160 mm / 6.3"
Rear Suspension: Swingarm with dual air adjustable shocks
Rear Wheel Travel: 100 mm / 3.9"
Front Brakes: Single disc, single piston caliper
Rear Brakes: Single disc
Front Tyre: 110/90-18 61H
Rear Tyre: 130/90-16 67H
Rake: 29.8°
Trail: 112 mm / 4.4 in
Dimensions: Length 2220 mm / 87.4 in Width 830 mm / 32.3 in Height 1210 mm / 47.6 in
Wheelbase: 1510 mm / 59.4 in
Ground Clearance: 150 mm / 5.9 in
Dry Weight: 217 kg / 478 lbs
Fuel Capacity: 13.9 L / 3.7 US gal
