Kawasaki Z-X10RR Ninja (2024) technical specifications

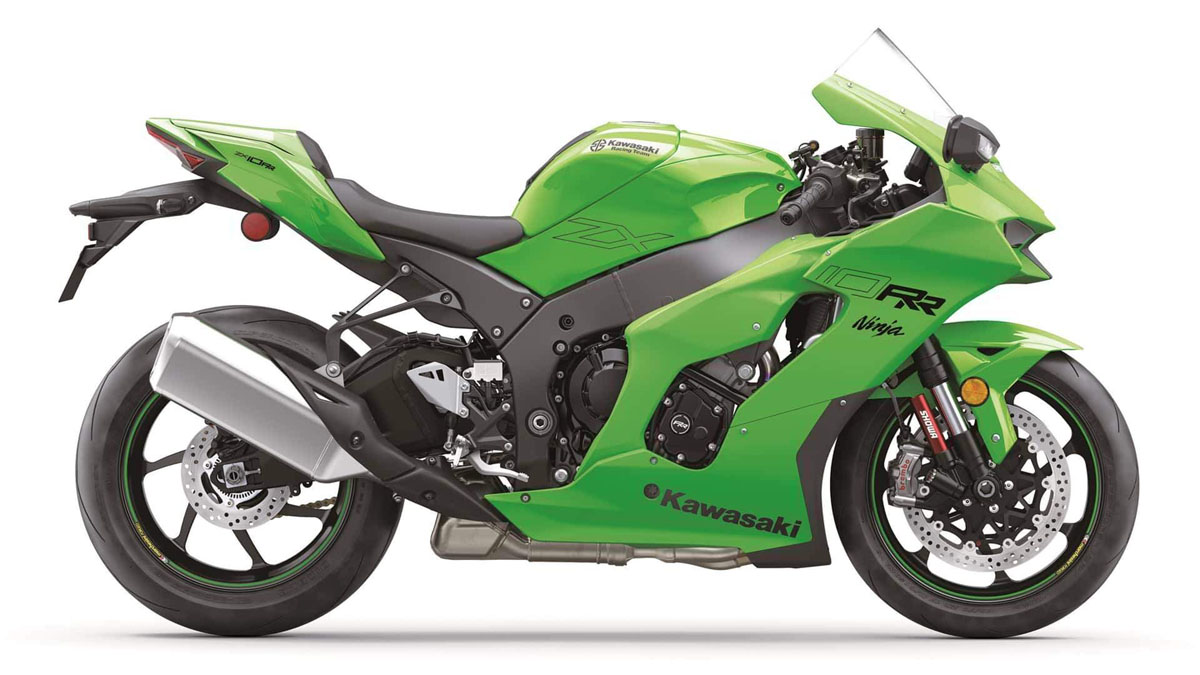

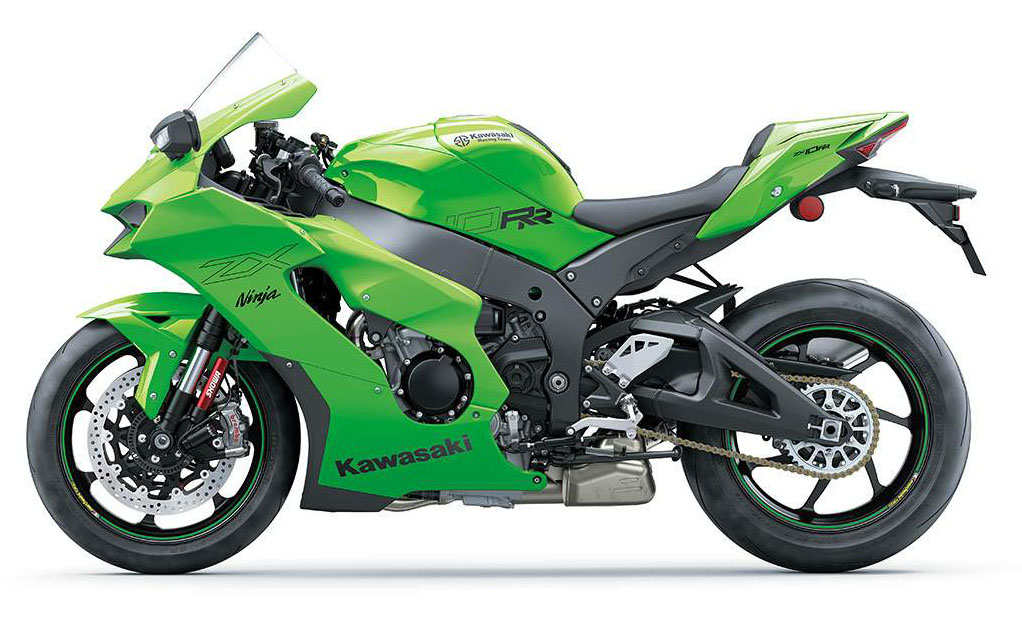

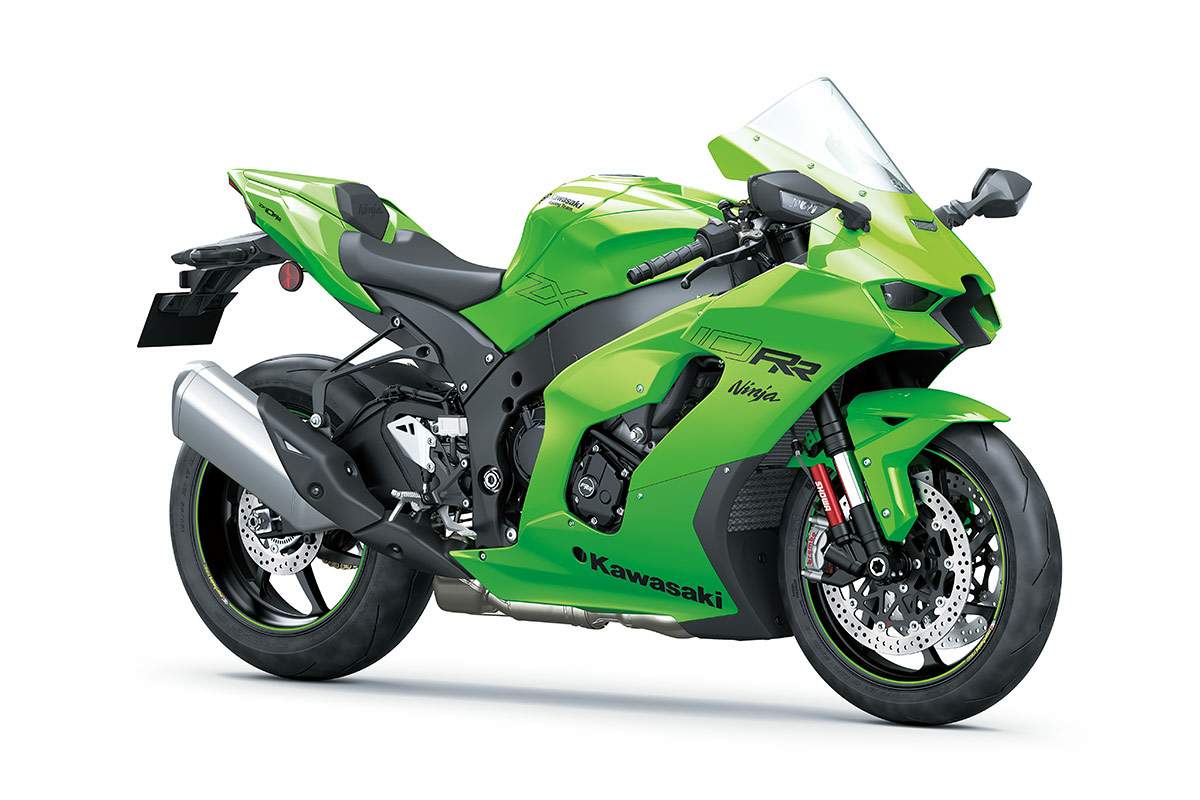

Kawasaki Z-X10RR Ninja is produced in 2024. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 150 kW / 204 hp @ 14000 rpm and 111.8 Nm / 82.4 lb-ft @ 11700 rpm. Kawasaki Z-X10RR Ninja wet weight is 207 kg / 456.4 lbs. Kawasaki Z-X10RR Ninja has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Z-X10RR Ninja
Years:	2024
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity:	998 cc / 60.9 cu-in
Bore x Stroke:	76.0 x 55.0 mm
Compression Ratio:	13.0:1
Cooling System:	Liquid cooled
Lubrication:	Forced lubrication, wet sump with oil cooler
Induction:	DFI with 47mm Mikuni throttle bodies (4) and Variable Air Intake System (VAI)
Ignition:	TCBI with digital advance and Sport-Kawasaki Traction Control (S-KTRC)
Starting:	Electric
Max Power:	150 kW / 204 hp @ 14000 rpm
Max Power Ram Air:	157.5 kW / 214 hp @ 14000 rpm
Max Torque:	111.8 Nm / 82.4 lb-ft @ 11700 rpm
Clutch:	Wet multi-disc, manual
Transmission:	6-speed, return, cassette
Final Drive:	Sealed Chain
Primary Reduction Ratio:	1.681 (79/47)
Gear Ratio:	1st 2.600 (39/15) 2nd 2.158 (41/19) 3rd 1.882 (32/17) 4th 1.650 (33/20) 5th 1.476 (31/21) 6th 1.304 (30/23)
Final Reduction Ratio:	2.294 (39/17)
Frame:	Aluminum perimeter
Front Suspension:	43mm inverted Balance Free Fork, adjustable stepless rebound and compression damping, spring preload adjustability, and top-out springs
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Horizontal back-link with Balance Free gascharged shock, stepless, dual-range (low-/highspeed) compression damping, stepless rebound damping, fully adjustable spring preload
Rear Wheel Travel:	115 mm / 4.5 in
Front Brakes:	2x 330 mm Intelligent Braking (KIBS), Brembo® dual semifloating discs with dual radial mounted monobloc 4-piston calipers
Rear Brakes:	Single 220mm disc KIBS-supported with aluminum single-piston caliper
Front Tyre:	120/70 ZR17
Rear Tyre:	190/55 ZR17
Rake:	25°
Trail:	105 mm / 4.2 in
Dimensions:	Length 2085 mm / 82.1 in Width 750 mm / 29.5 in Height 1185 mm / 46.7 in
Wheelbase:	1450 mm / 57.1 in
Ground Clearance:	135 mm / 5.3 in
Seat Height:	835 mm / 32.9 in
Wet Weight:	207 kg / 456.4 lbs
Fuel Capacity:	17 Litres / 4.5 US gal
Electronic Rider Aids:	Öhlins® Electronic Steering Damper, Kawasaki Launch Control Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Sport Traction Control (S-KTRC), Kawasaki Engine Braking Control, Kawasaki Quick Shifter (KQS) (upshift & downshift), Kawasaki Corner Management Function (KCMF), Power Modes (Full/Mid/Low)
