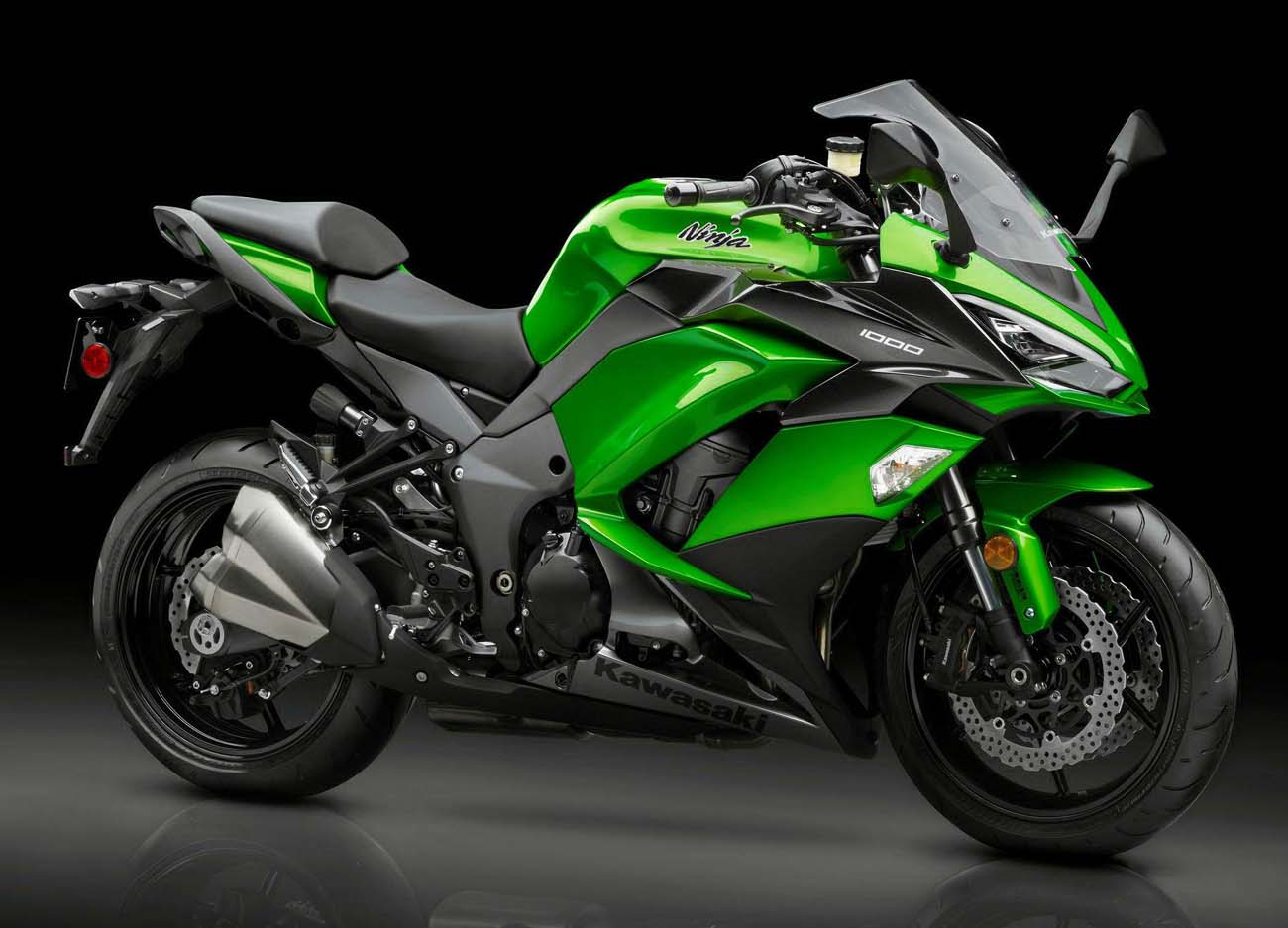

Kawasaki Ninja 1000 (2017) technical specifications

Kawasaki Ninja 1000 technical specifications

Kawasaki Ninja 1000 is produced in 2017. Engine is Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder, displacement 1043 cc / 63.6 cu-in , produces power 101.5 kW / 138 hp @ 9600 rpm and 110 Nm / 11.2 kg-fm @ 7800 rpm. Kawasaki Ninja 1000 wet weight is 228 kg / 502.6 lbs - ABS 231 kg / 509.4 lbs. Kawasaki Ninja 1000 has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: Ninja 1000
Years: 2017
Engine: Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder
Capacity: 1043 cc / 63.6 cu-in
Bore x Stroke: 77.0 x 56.0mm
Cooling System: Liquid cooled
Compression Ratio: 11.8:1
Induction: DFI with four 38mm Keihin throttle bodies, oval sub-throttles
Ignition: TCBI with digital advance
Starting: Electric
Max Power: 101.5 kW / 138 hp @ 9600 rpm
Max Torque: 110 Nm / 11.2 kg-fm @ 7800 rpm
Transmission: 6 Speed
Final Drive: Chain
Gear Ratio: 1st 2.600 (39/15) 2nd 1.950 (39/20) 3rd 1.600 (24/15) 4th 1.389 (25/18) 5th 1.238 (26/21) 6th 1.136 (25/22)
Frame: Type: Aluminum Backbone
Front Suspension: 41 mm inverted fork with rebound damping and progressive compression and preload adjustment
Rear Suspension: Back-link rear horizontal coupling charged gas, progressive rebound damping and spring preload adjustment
Front Brakes: 2x 300mm discs 4 piston caliper
Rear Brakes: Single 250mm disc 1 piston caliper
Front Tyre: 120/70 -R17
Rear Tyre: 190/50- ZR17
Rake: 24.5°
Trail: 104 mm / 4.1 in
Dimensions: Length 2105 mm / 82.9 in Width 790 mm / 31.2 in Height 1170 mm / 46.1 in
Wheelbase: 1445 mm / 56.9 in
Ground Clearance: 135 mm / 5.3 in
Seat Height: 822 mm / 32.3 in
Wet Weight: 228 kg / 502.6 lbs - ABS 231 kg / 509.4 lbs
Fuel Capacity: 19 Litres / 5.0 US gal
