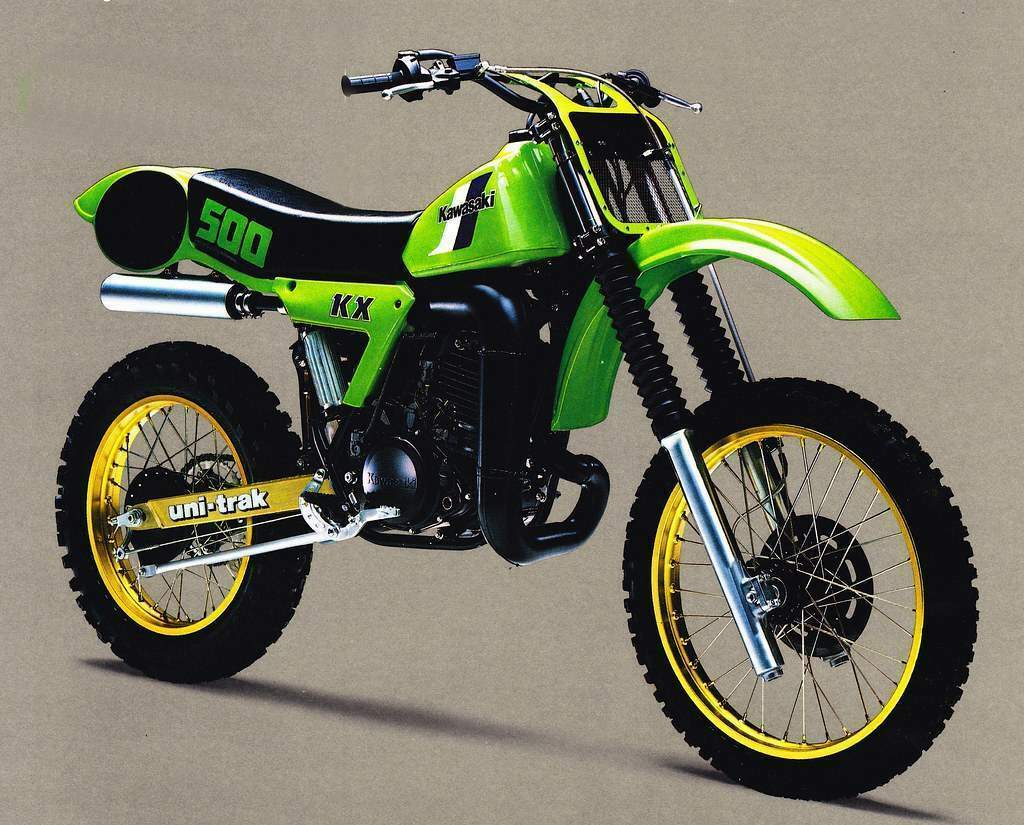

Kawasaki KX 500 (1983-84) technical specifications

Kawasaki KX 500 is produced in 1983-84. Engine is Two stroke, single cylinder, read valve, displacement 499 cc / 30.5 cu-in , produces power 65 hp / 47.4 kW @ and NA. Kawasaki KX 500 weighs 104.7 kg / 231 lbs. Kawasaki KX 500 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	KX 500
Years:	1983-84
Engine:	Two stroke, single cylinder, read valve
Capacity:	499 cc / 30.5 cu-in
Bore x Stroke:	86 x 86mm
Compression Ratio:	7.0:1
Cooling System:	Air Cooled
Exhaust:	Expansion chamber
Lubrication:	Premix
Induction:	38mm Mikuni carburetor
Ignition:	CDI
Starting:	Kick
Max Power:	65 hp / 47.4 kW @
Max Torque:	NA
Clutch:	Wet plate
Transmission:	5 Speed
Final Drive:	Chain
Frame:	Chrome-moly steel tubing, aluminum rear subframe
Front Suspension:	Leading-axle, 43mm air-assisted forks with adjustable compression damping
Front Wheel Travel:	300 mm / 11.8 in
Rear Suspension:	Uni Trak, damping-ad
Rear Wheel Travel:	304.8 mm / 12.0 in
Front Brakes:	Single 220mm disc
Rear Brakes:	Drum
Front Tyre:	3.00 -21
Rear Tyre:	5.10-18
Trail:	122 mm / 4.8 in
Wheelbase:	1514 mm / 59.6 in
Seat Height:	952.5 mm / 37.5 in
Ground Clearance:	325 mm / 12.8 in
Dry Weight:	104.7 kg / 231 lbs
Wet Weight:	114 kg / 251 lbs
Fuel Capacity:	9 Litres / 2.4 US gal
