Kawasaki H2R Ninja / ZX 1000 (2016) technical specifications

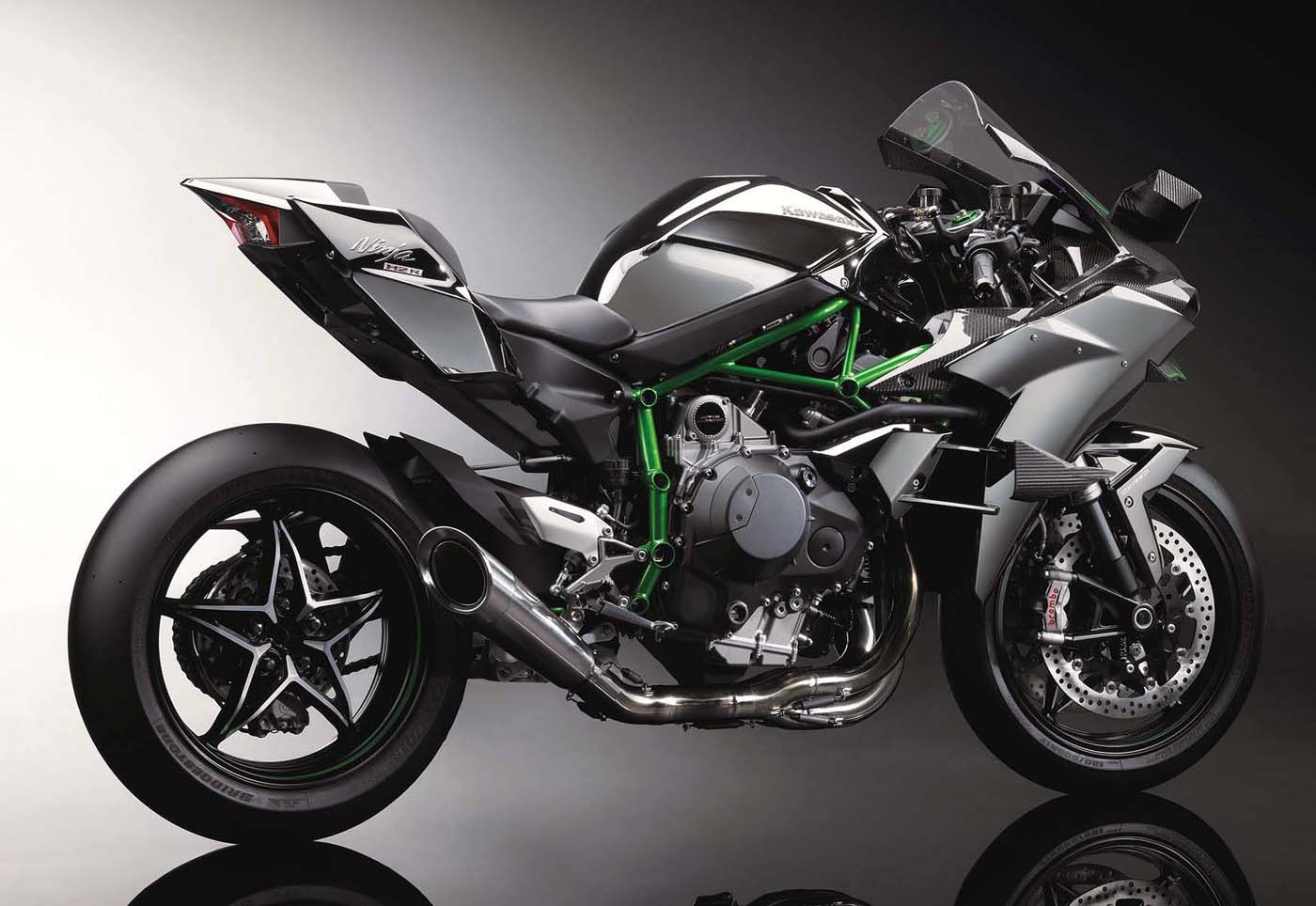

Kawasaki H2R Ninja / ZX 1000 technical specifications

Kawasaki H2R Ninja / ZX 1000 is produced in 2016. , produces power 310 hp / 226.3 kW @ 14000 rpm and 165.0 Nm / 121.7 lb-ft @ 12500 rpm. Kawasaki H2R Ninja / ZX 1000 wet weight is 216 kg / 476.2 lbs. Kawasaki H2R Ninja / ZX 1000 has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: H2R Ninja / ZX 1000
Years: 2016
Motor: Four Stroke, transverse four cylinder, DOHC, 16 valve, Supercharger Centrifugal, scroll-type
Capacity: 998 cc / 60.9 cub in
Bore x Stroke: 76 x 55 mm
Cooling System: Liquid cooled
Compression Ratio: 8.3:1
Lubrication: Forced lubrication, wet sump with oil cooler
Exhaust: 4-1-2
Induction: 50 mm x 4 with dual injection,
Ignition: Digital
Starting: Electric
Max Power: 310 hp / 226.3 kW @ 14000 rpm
Max Torque: 165.0 Nm / 121.7 lb-ft @ 12500 rpm
Transmission: 6-Speed
Final Drive: Chain
Frame: Trellis, high-tensile steel, with swingarm mounting plate
Front Suspension: 43mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Front Wheel Travel: 119 mm / 4.7 in
Rear Suspension: Uni-Trak® with gas-charged shock, piggyback reservoir, dual-range (high/low-speed) compression damping, rebound damping and preload adjustability, and top-out spring
Rear Wheel Travel: 135 mm / 5.3 in
Front Brakes: Dual 330 mm discs, radial-mount, opposed 4-piston calipers, dual semi-floating

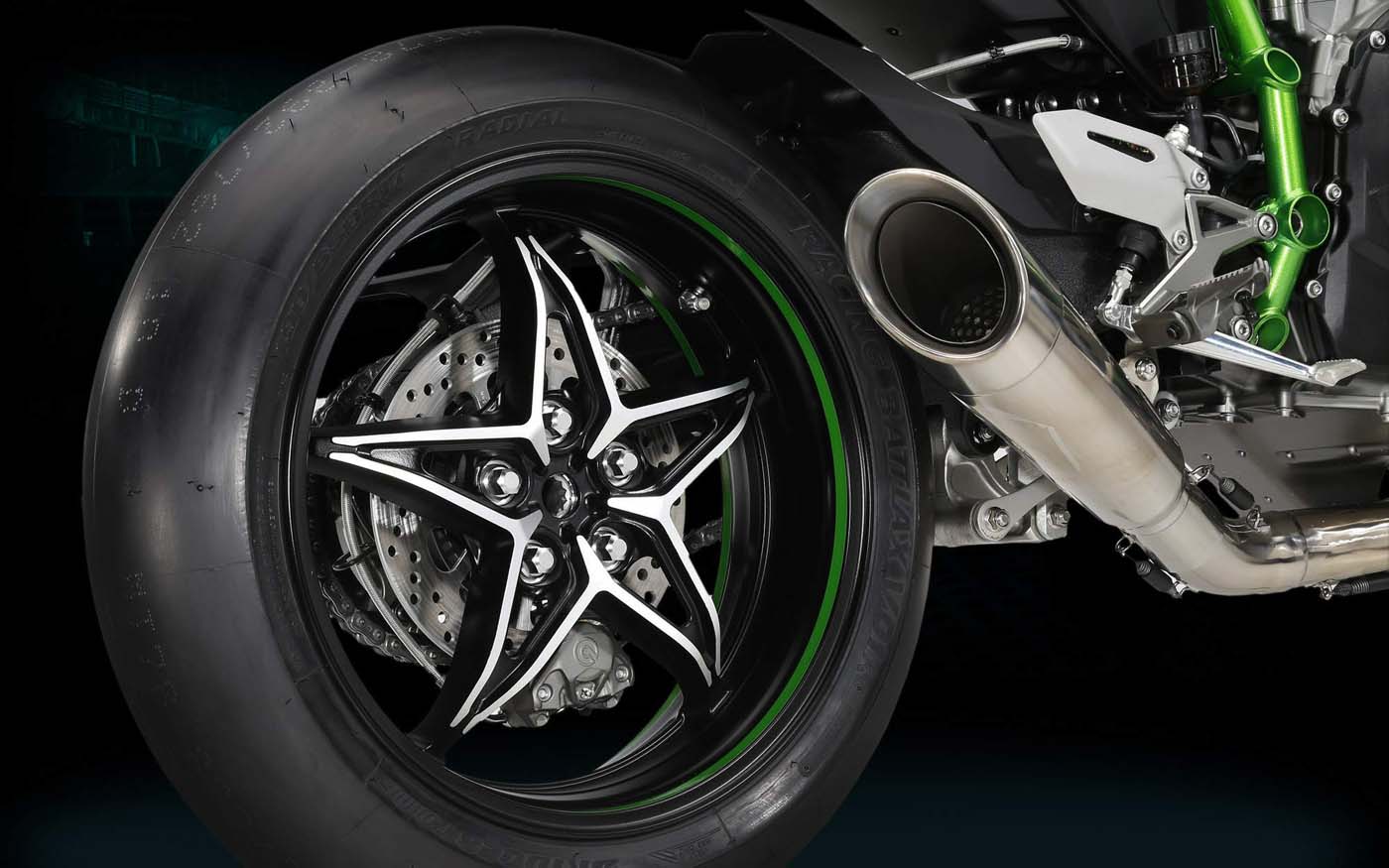

Rear Brakes: Single 250mm disc, opposed 2-piston calipers,
Front Tyre: 120/600 R17
Rear Tyre: 190/65-ZR17
Rake: 24.4°
Trail: 101.6 mm / 4.0 in
Dimensions: Length 2083 mm / 82.0 in Width 770 mm / 30.3 in Height 1125 mm / 44.3 in
Wheelbase: 1,450 mm / 57.1 in
Ground Clearance: 130 mm / 5.1 in
Seat Height: 826 mm / 32.5 in
Wet Weight: 216 kg / 476.2 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
