Husqvarna Witpilen 401 (2018-19) technical specifications

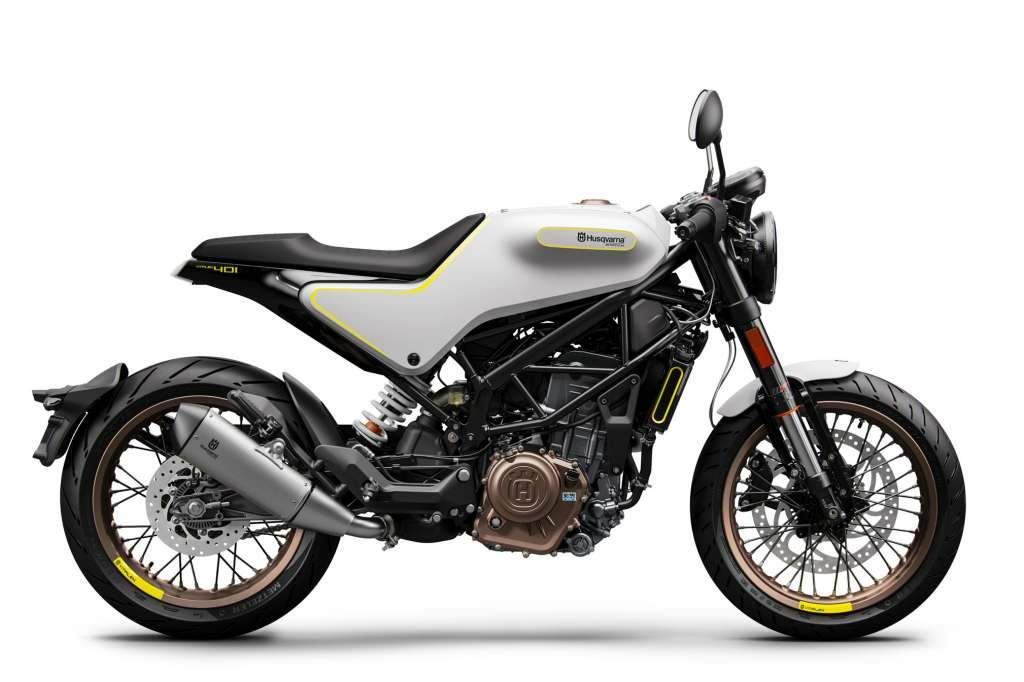

Husqvarna Witpilen 401 is produced in 2018-19. Engine is Four stroke, single cylinder, DOHC, 4 valve, displacement 373.2 cc / 22.8 cu-in , produces power 43 hp / 32 kW @ 9000 rpm and 37 Nm / 27.3 lb-ft @ 7000 rpm. Husqvarna Witpilen 401 wet weight is 150kg / 330.6 lbs. Husqvarna Witpilen 401 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Witpilen 401
Years:	2018-19
Engine:	Four stroke, single cylinder, DOHC, 4 valve
Capacity:	373.2 cc / 22.8 cu-in
Bore x Stroke:	89 x 60 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.6:1
Lubrication:	Wet sump
Exhaust:	Stainless steel/ Aluminum silencer with regulated catalytic converter
Induction:	Fuel injection
Ignition:	Digital CDI
Starting:	Electric
Max Power:	43 hp / 32 kW @ 9000 rpm
Max Torque:	37 Nm / 27.3 lb-ft @ 7000 rpm
Clutch:	PASC™ antihopping clutch, mechanically operated
Transmission:	6 Speed
Final Drive:	Chain, X-Ring 5/8 x 1/4″
Secondary Gear Ratio:	15:45
Primary Gear Ratio:	30:80
EMS:	Bosch EMS
Frame:	Steel trellis frame, powder coated
Front Suspension:	43mm WP upside-down forks
Front Wheel Travel:	142 mm / 5.5 in
Rear Suspension:	WP monoshock
Rear Wheel Travel:	150 mm / 5.9 in
Front Brakes:	Single 320mm disc, 4 piston floating calliper
Rear Brakes:	Single 230mm disc 1 piston floating calliper
ABS:	Bosch 9M+ two-channel ABS (disengageable)
Front Wheel:	Wire-spoked w/ aluminum rims 3.00 x 17
Rear Wheel:	Wire-spoked w/ aluminum rims 4.00 x 17
Front Tyre:	110/70 - 17 Pirelli Scorpion Rally STR
Rear Tyre:	150/60 - 17 Pirelli Scorpion Rally STR
Steering Head Angle:	65 °
Rake:	25°
Triple Clamp Offset:	32 mm / 1.8 in
Trail:	95 mm / 3.7 in
Wheelbase:	1357 ± 15.5 mm / 53.4 in
Seat Height:	835 mm / 32.8 in
Ground Clearance:	170 mm / 6.7 in
Wet Weight:	150kg / 330.6 lbs
Fuel Capacity:	9.5 Litres / 2.5 US gal
