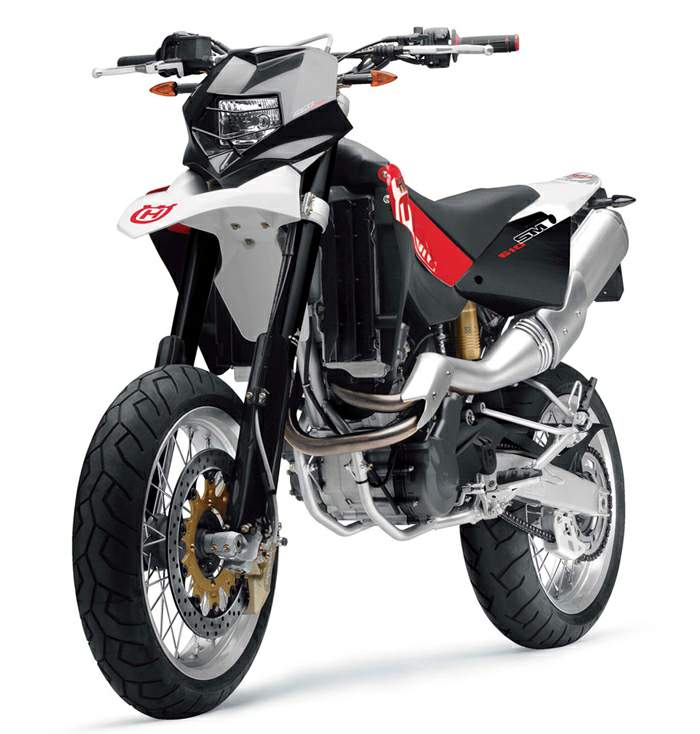

Husqvarna SM 610ie (2008-09) technical specifications

Husqvarna SM 610ie is produced in 2008-09. Engine is Four stroke, single cylinder, SOHC, 4 valves, displacement 576 cc / 35.2 cu-in , produces power 54 hp / 40.3 kW @ 7000 rpm and 52 Nm / 38.4 ft-lb @ 6500 rpm. Husqvarna SM 610ie weighs 140 kg / 314.2. Husqvarna SM 610ie has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	SM 610ie
Years:	2008-09
Engine:	Four stroke, single cylinder, SOHC, 4 valves
Capacity:	576 cc / 35.2 cu-in
Bore x Stroke:	98.0 x 76.4 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.0:1
Induction:	Electronic injection
Ignition:	CDI Adjustable advance
Starting:	Electric & kick
Max Power:	54 hp / 40.3 kW @ 7000 rpm
Max Torque:	52 Nm / 38.4 ft-lb @ 6500 rpm
Clutch:	Wet,multiplate type; mechanic control
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st 2.615 (34/13), 2nd 1.812 (29/16), 3rd 1.350 (27/20), 4th 1.091 (24/22), 5th 0.916 (22/24), 6th 0.769 (20/26)
Frame:	Steel single tube cradle with steel round tubes: rear frame with light alloy square tubes
Front Suspension:	Upside-Down" telescopic hydraulic fork with advanced axle; compression and rebound stroke adjustment, 250mm wheel travel.
Front Wheel Travel:	250 mm / 9.8 in
Rear Suspension:	Progressive "Soft Damp" type with single hydraulic shock absorber; spring preload adjustment, compression and rebound adjustment (compression stroke: double adjustment), 290mm wheel travel.
Rear Wheel Travel:	290 mm / 11.4 in
Front Brakes:	Single 320mm disc
Rear Brakes:	Single 220mm disc
Front Tyre:	120/70 -17
Rear Tyre:	150/60 -17
Wheelbase:	1485 mm / 58.4 in
Seat Height:	910 mm / 35.8 in
Ground Clearance:	245 mm/ 9.4 in
Dry Weight:	140 kg / 314.2
Fuel Capacity:	12.5 Litres / 3.3 US gal
