Husqvarna FE 350 (2016-17) technical specifications

Husqvarna FE 350 technical specifications

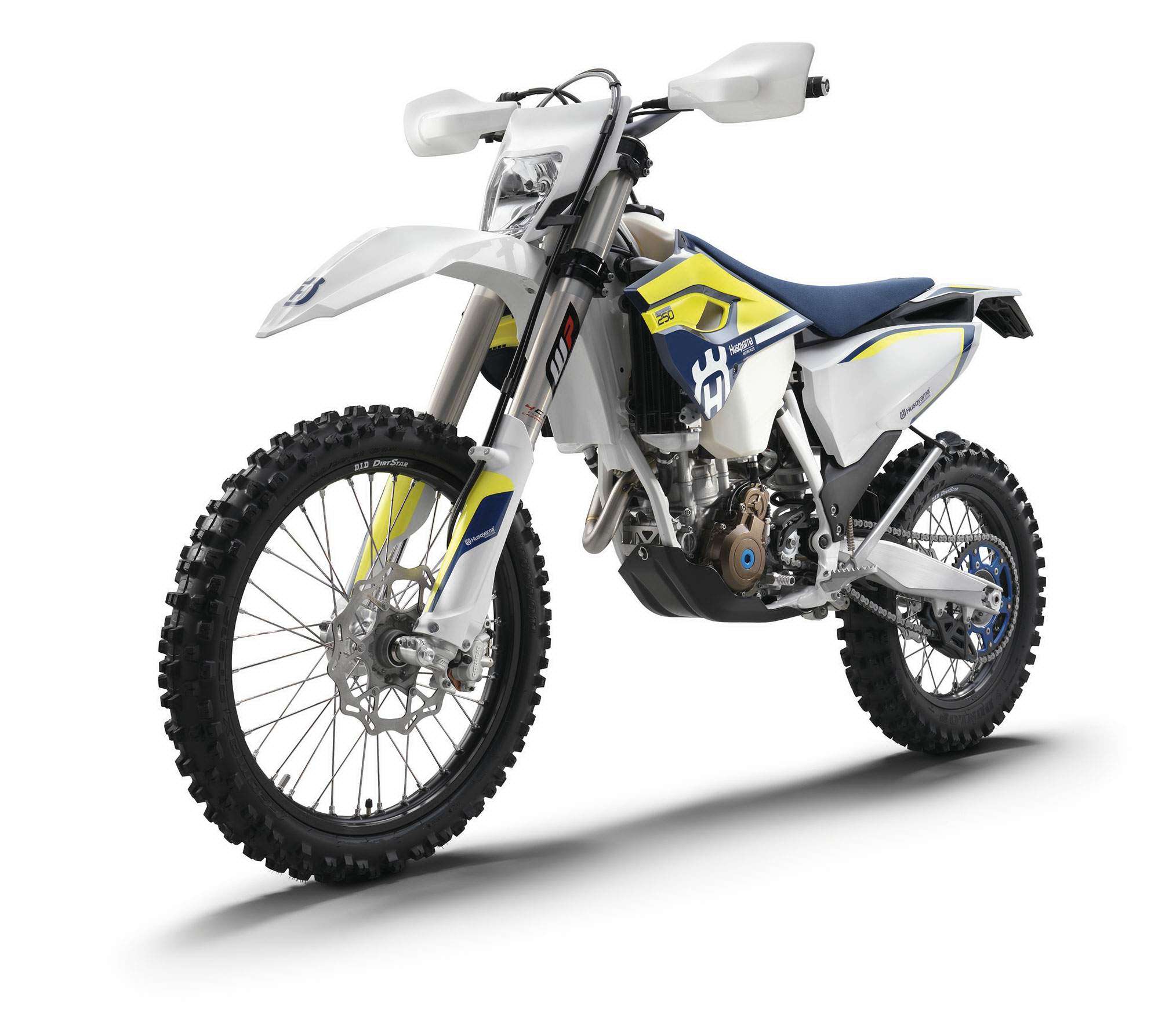

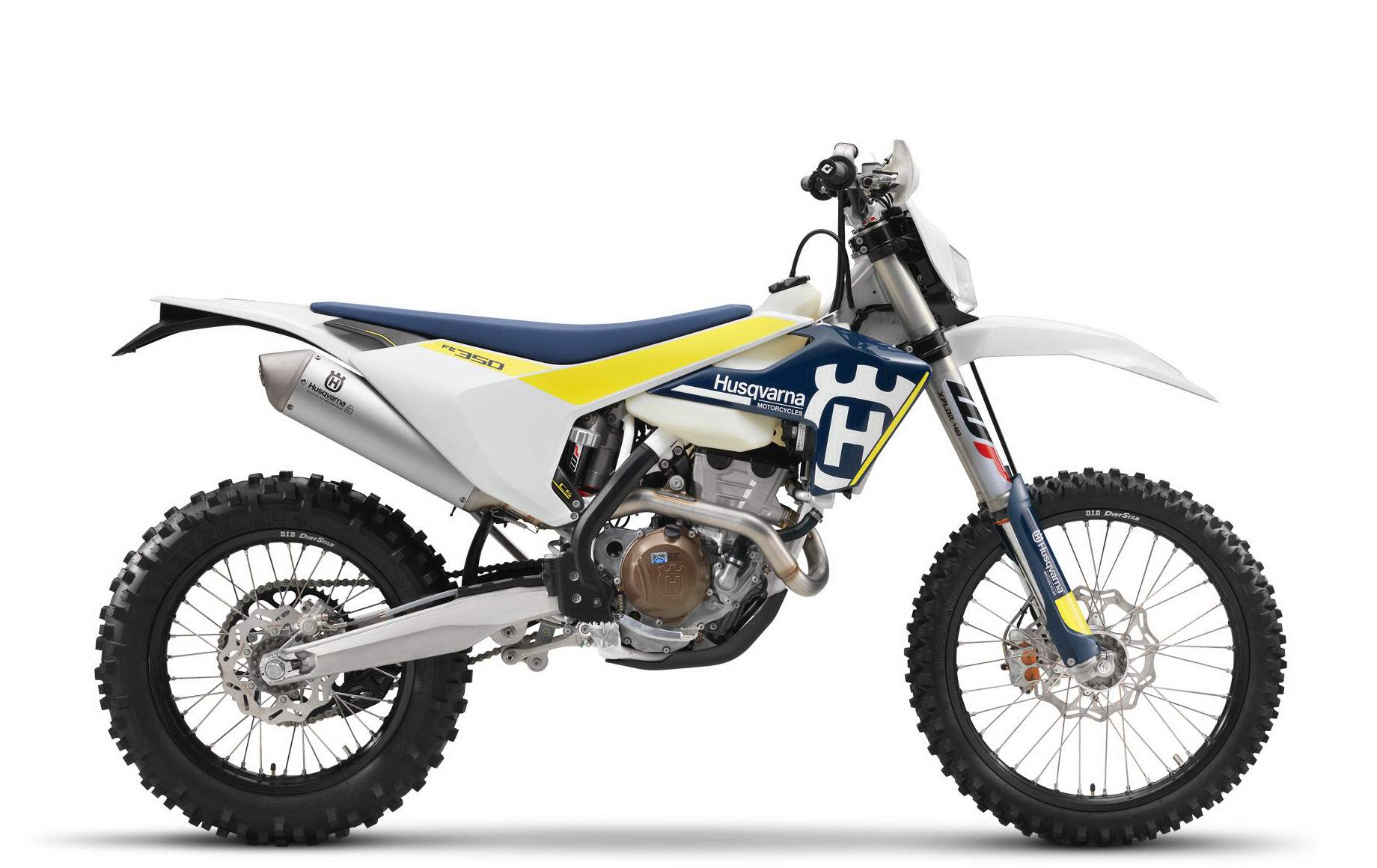

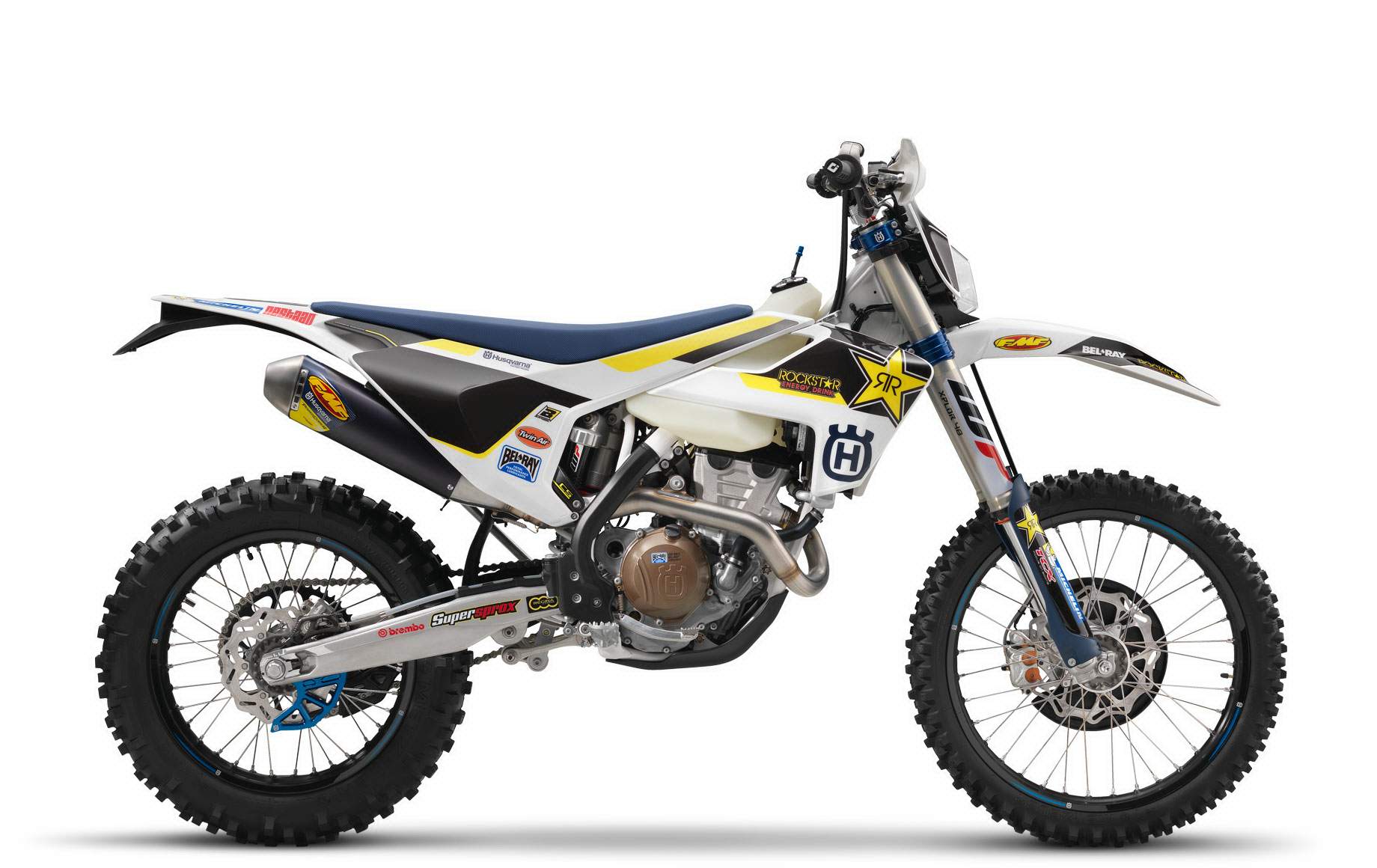

Husqvarna FE 350 is produced in 2016-17. Engine is Four stroke. single cylinder. DOHC. 4 valve, displacement 349.7 cc / 21.3 cu in , produces power 45 hp / 32.8 kW and Nm / ft-lb @ rpm. Husqvarna FE 350 weighs 109.2 kg / 240.7 lbs. Husqvarna FE 350 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: FE 350
Years: 2016-17
Engine: Four stroke. single cylinder. DOHC. 4 valve
Capacity: 349.7 cc / 21.3 cu in
Bore x Stroke: 88 x 57.5 mm
Compression Ratio: 12.8:1
Cooling System: Liquid cooling system, continuous circulation of cooling liquid with water pump
Lubrication: Forced oil lubrication with 2 Eaton pumps
Induction: Keihin electronic fuel injection and 42mm throttle body
Ignition: Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Starting: Electric
Max Power: 45 hp / 32.8 kW
Max Torque: Nm / ft-lb @ rpm
Clutch: Wet multi-disc clutch DDS / Brembo hydraulics
Transmission: 6-speed, claw shifted
Final Drive: Chain 520 X-Ring
Primary Ratio: 24:73
Secondary Ratio: 14:52 (13:52)
Frame: Central tube frame made of chrome molybdenum steel tubing
Front Suspension: WP Suspension Up Side Down 4CS forks.
Front Wheel Travel: 300 mm /11.8 in
Rear Suspension: WP Monoshock with linkage
Rear Wheel Travel: 330 mm / 13.0 in
Front Brakes: Single 260 mm with 4 pot brake caliper
Rear Brakes: Single 220 mm with 1 pot brake caliper
Front Tyre: 90/90-21
Rear Tyre: 140/90-18
Steering Head Angle: 63.5°
Trail: 107 mm / 4.2 in
Dimensions: Length 2260 mm / 89.0 in
Wheelbase: 1482±10 mm / 58.3 in
Seat Height: 970 mm / 38.2 in
Ground Clearance: 345 mm / 13.6 in
Dry Weight: 109.2 kg / 240.7 lbs
Fuel Capacity: 9.5 Litres / 2.8 US gal
