Honda XR 200R (2002-03) technical specifications

Honda XR 200R technical specifications

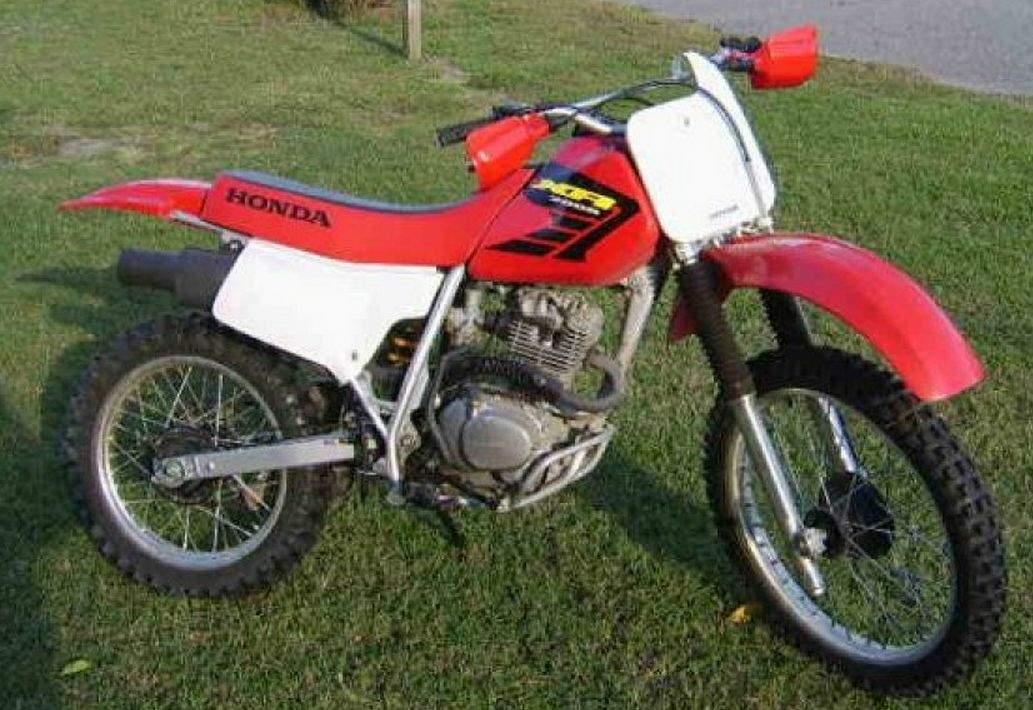

Honda XR 200R is produced in 2002-03. Engine is Four stroke, single cylinder SOHC, 2 valve, chain driven overhead camshaft, displacement 195 cc / 11.8 cu-in , produces power 23 hp / 17.1 Kw @ 9000 rpm and 19.5 Nm / 14.4 lb-ft @ 7500 rpm. Honda XR 200R weighs 102 kg / 224.8 lbs. Honda XR 200R has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XR 200R
Years: 2002-03
Engine: Four stroke, single cylinder SOHC, 2 valve, chain driven overhead camshaft
Capacity: 195 cc / 11.8 cu-in
Bore x Stroke: 67 x 56.5 mm
Compression Ratio: 10.0:1
Lubrication: Forced pressure and wet sump
Induction: 2x 20 mm piston valve Keihin carburator
Ignition: Solid state CD
Spark Plug: NGK DR8ES-L
Starting: Kick
Max Power: 23 hp / 17.1 Kw @ 9000 rpm
Max Torque: 19.5 Nm / 14.4 lb-ft @ 7500 rpm
Clutch: Wet multiplate type
Transmission: Close-ratio, 6-speed
Final Drive: Chain
Primary Reduction: 3.316
Gear Ratio: 1st 2.769:1 2nd 1.941:1 3rd 1.450:1 4th 1.130:1 5th 0.923:1 6th 0.785:1
Frame: Semi double cradle
Front Suspension: 36 mm Air-adjustable forks with dual Syntallic bushings
Front Wheel Travel: 208 mm / 8.1 in
Rear Suspension: Pro-Link, single Showa shock, adjustable
Rear Wheel Travel: 211 mm / 8.3 in
Front Brakes: Drum, swept area - 86.3 cm2 / 13.3 sq. in.
Rear Brakes: Drum, swept area - 86.3 cm2 / 13.3 sq. in
Front Tyre: 80/100-21
Rear Tyre: 100/100-17
Rake: 26°
Trail: 105 mm / 4.1 in
Dimensions: Length 2035mm / 80.1 in Width 865mm / 34.1 in Height 1180mm / 46.5 in
Wheelbase: 1360mm / 53.5 in.
Seat Height: 850mm / 33.5 in
Dry Weight: 102 kg / 224.8 lbs
Wet-Weight: 109 kg / 240 lbs
Ground Clearance: 315 mm / 12.4 in
Fuel Capacity: 9.0 Litres / 2.4 gal
