Honda NV 400 Custom (1983-) technical specifications

Honda NV 400 Custom technical specifications

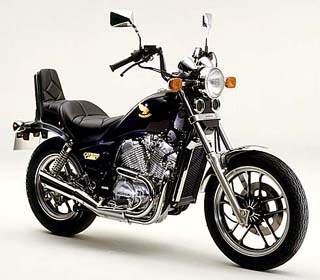

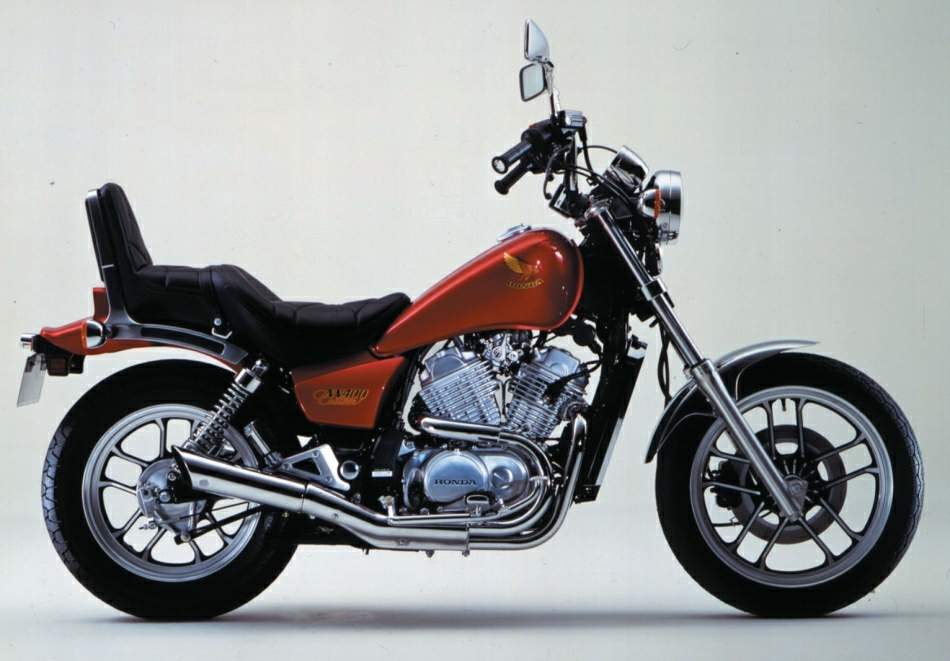

Honda NV 400 Custom is produced in 1983-. Engine is Four stroke V-twin cylinders, OHC, 3 valve per cylinder, displacement 349 cc / 21.2 cu-in , produces power 43 hp / 32 kW @ 9500 rpm and 3.5 kgf-m / 25.3 lb-ft @ 7500 rpm. Honda NV 400 Custom weighs 181 kg / 398 lbs. Honda NV 400 Custom has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: NV 400 Custom
Years: 1983-
Engine: Four stroke V-twin cylinders, OHC, 3 valve per cylinder
Capacity: 349 cc / 21.2 cu-in
Bore x Stroke: 71.0 × 50.4 mm
Cooling System: Liquid cooled
Compression Ratio: 10.5:1
Induction: VD6R carburetor
Ignition: CDI
Starting: Electric
Max Power: 43 hp / 32 kW @ 9500 rpm
Max Torque: 3.5 kgf-m / 25.3 lb-ft @ 7500 rpm
Clutch: Wet multi-plate coil spring
Transmission: 6 Speed
Final Drive: Chain
Gear Ratio: 1st 2.857 2nd 1.947 1.947 3rd 1.545 1.545 4th 1.280 1.280 5th 1.074 1.074 6th 0.866 0.866
Front Suspension: Telescopic forks
Rear Suspension: Swinging arm
Front Brakes: Single disc
Rear Brakes: Drum
Front Tyre: 3.50 -18
Rear Tyre: 130/90-16
Seat Height: 750 mm / 29.5 in
Dry Weight: 181 kg / 398 lbs
Fuel Capacity: 11 Litres / 2.9 US gal
