Honda CB 1000R (2017) technical specifications

Honda CB 1000R technical specifications

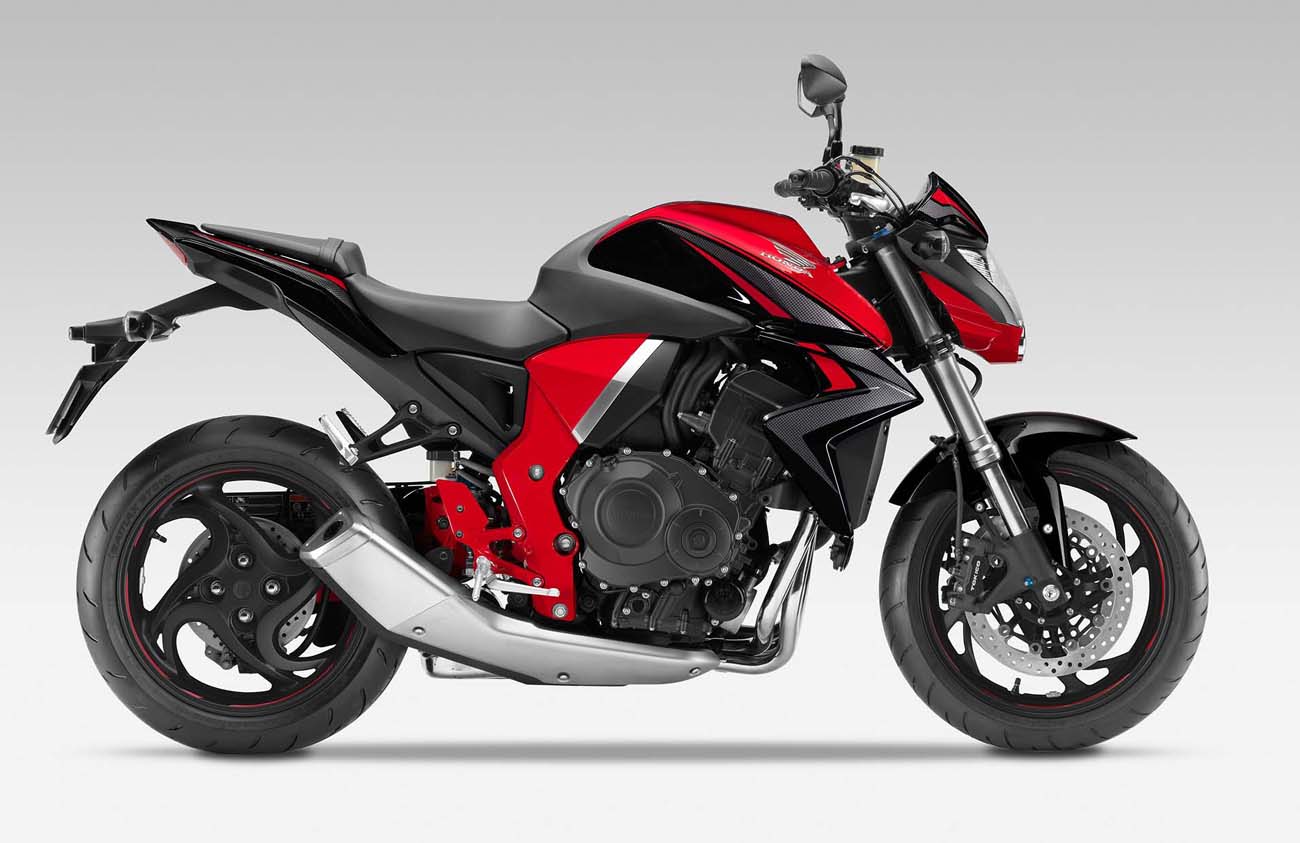

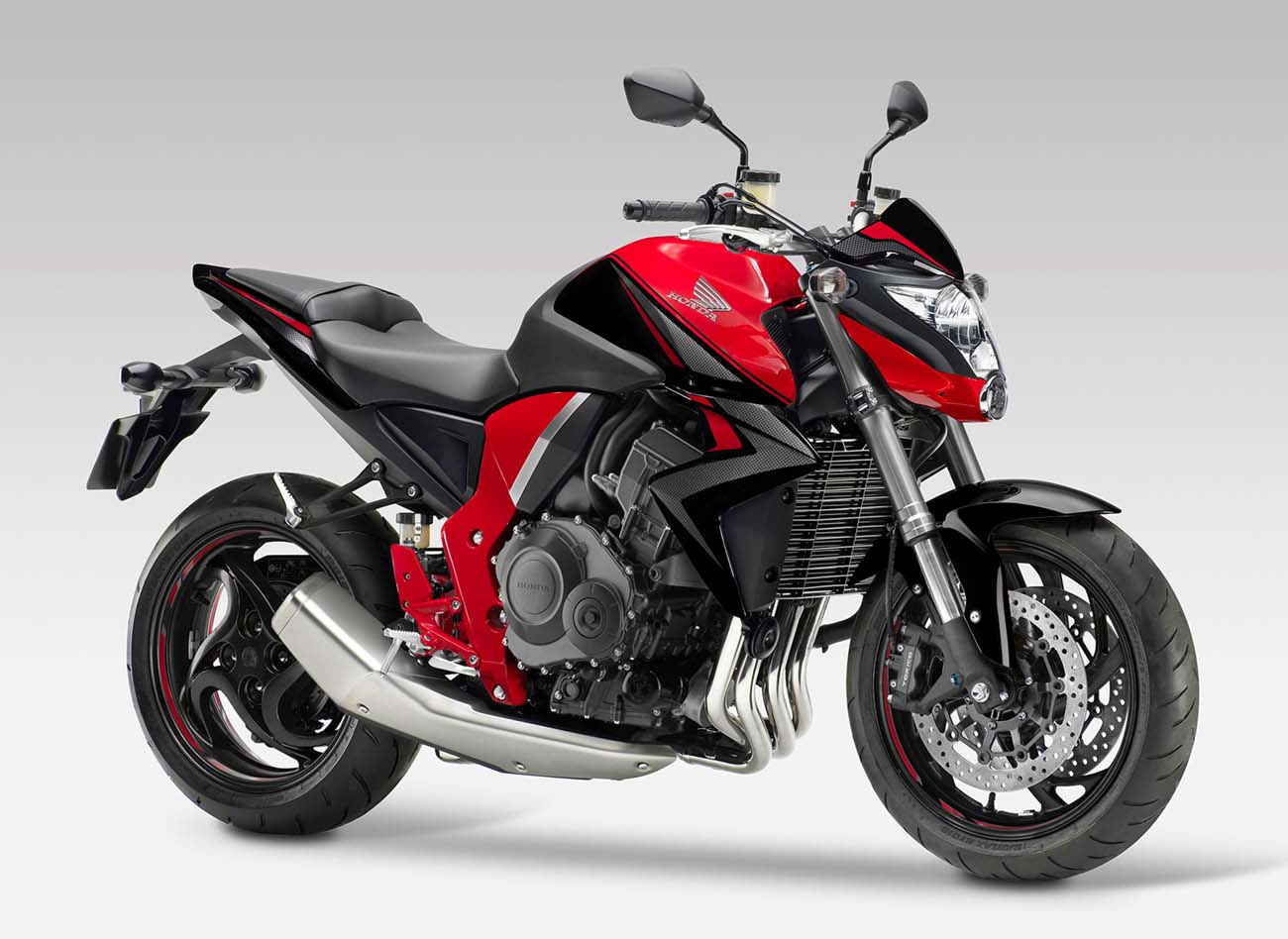

Honda CB 1000R is produced in 2017. Engine is Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder., displacement 998 cc / 60.9 cu-in , produces power 123.4 hp / 92 kW @ 10000 rpm and 100 Nm / 73.8 lb-ft @ 8000 rpm. Honda CB 1000R top speed is 228.6 km/h / 142.0 mph. Honda CB 1000R wet weight is 220 kg / 485 lbs. Honda CB 1000R has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: CB 1000R
Years: 2017
Engine: Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity: 998 cc / 60.9 cu-in
Bore x Stroke: 75 x 56.5 mm
Cooling System: Liquid cooled
Compression Ratio: 11.2:1
Lubrication: Wet sump
Induction: PGM-F1 Electronic fuel injection36mm throttle bodies
Ignition: Computer controlled digital transistorized
Battery: 12V/8.6AH
Starting: Electric
Max Power: 123.4 hp / 92 kW @ 10000 rpm
Max Torque: 100 Nm / 73.8 lb-ft @ 8000 rpm
Clutch: Wet, multiplate with coil springs.
Transmission: 6 Speed
Final Drive: #530 O-ring sealed chain
Gear Ratio: 1: 2.538 (33/13) / - 2: 1.941 (33/17) / - 3: 1.579 (30/19) / - 4: 1.363 (30/22) / - 5: 1.217 (28/23) / - 6: 1.115 (29/26)
Frame: Mono-back born coast aluminous
Front Suspension: 43mm Inverted HMAS cartridge type telescopic forks, with stepless reload, compression and rebound adjustable
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Monoshock with gas charged HMAS damper rebound adjustable
Rear Wheel Travel: 128 mm / 5.0 in
Front Brakes: 2x 310mm discs 4 piston calipers
Rear Brakes: Single 256mm disc 2 piston caliper
Front Wheel: Hollow-section 4-spoke cast aluminium
Rear Wheel: U-section 4-spoke cast aluminium
Front Tyre: 120/70 ZR17
Rear Tyre: 180/50 ZR17
Rake (Caster Angle): 25.0°
Trail: 99.0mm / 3.9 in
Wheelbase: 1445 mm / 56.8 in
Seat Height: 828 mm / 32.6 in
Ground Clearance: 130 mm / 5.1 in
Wet Weight: 220 kg / 485 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
Consumption Average: 18.3 km/lit
Standing ¼ Mile: 11.3 sec
Top Speed: 228.6 km/h / 142.0 mph
