Harley-Davidson Harley Davidson Softail Street Bob 114 (2021) technical specifications

Harley-Davidson Harley Davidson Softail Street Bob 114 technical specifications

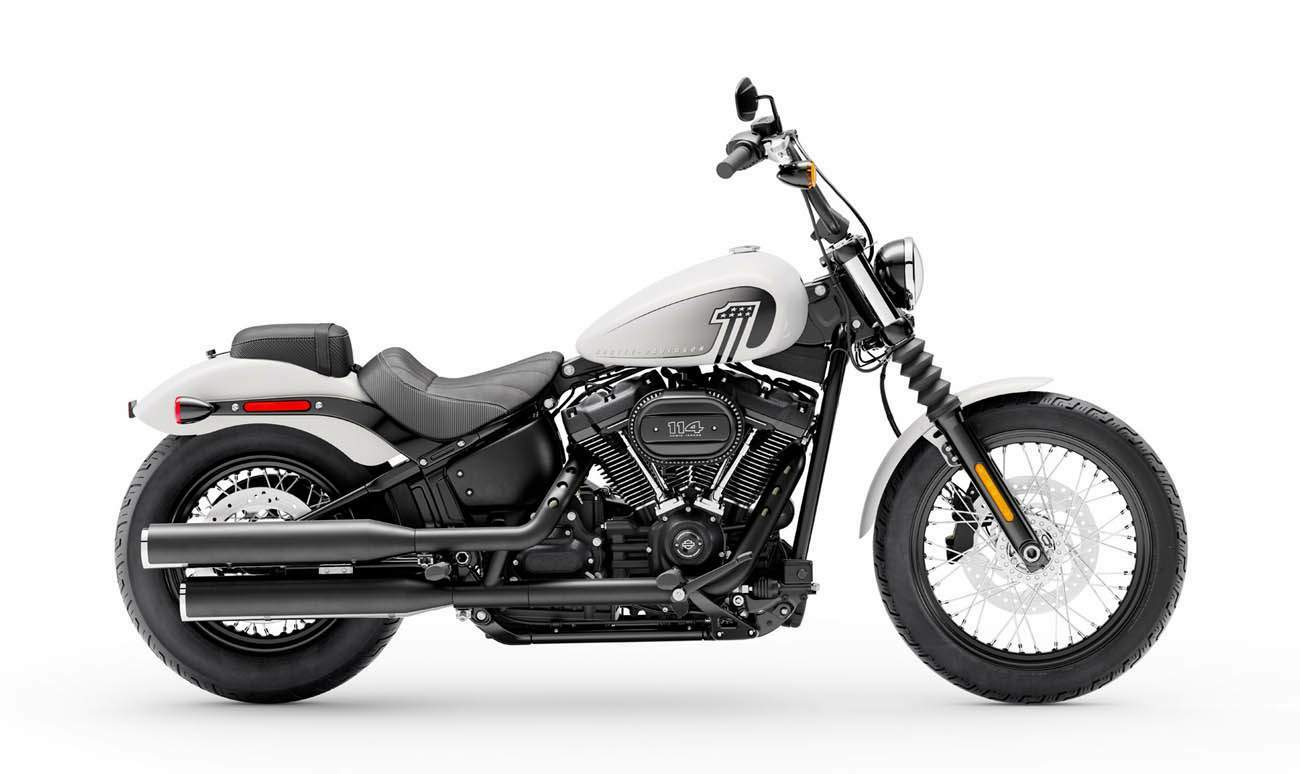

Harley-Davidson Harley Davidson Softail Street Bob 114 is produced in 2021. Engine is Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1868 cc / 114 cu in Harley-Davidson Harley Davidson Softail Street Bob 114 weighs 288 kg / 634 lbs. Harley-Davidson Harley Davidson Softail Street Bob 114 has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson Softail Street Bob 114
Years: 2021
Engine: Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity: 1868 cc / 114 cu in
Bore x Stroke: 102 x 114.3 mm
Cooling System: Air cooled
Compression Ratio: 10.5:1
Exhaust: 2-into-2 offset shotgun, catalyst in muffler
Induction: Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication: Pressurized, dry-sump with oil cooler
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starting: 1.6 kW electric with solenoid shift starter motor engagement
Max Torque: 161 Nm / 119 lb-ft @ 3000 rpm
Clutch: Mechanical, 10 plate wet, assist & conventional
Transmission: 6 Speed Cruise Drive
Final Drive: Belt, 32/66 ratio
Primary Drive: Chain, 34/46 ratio
Gear Ratio: 1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Lean Angle, Left: 28.5°
Lean Angle, Right: 28.5°
Frame: Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports
Swingarm: Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer
Front Suspension: Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
Rear Wheel Travel: 86 mm / 3.4 in
Front Brakes: Single 300mm disc, 4 piston caliper, fixed
Rear Brakes: Single 292mm disc, 2 piston floating caliper
ABS: Optional
Wheels: Gloss Black, Steel Laced
Front Tyre: 100/90B19,57H,BW
Rear Tyre: 150/80B16,77H,BW
Rake: 30°
Trail: 157 mm / 6.2 in
Dimensions: Length: 2320 mm / 91.3 in Width: 865 mm / 34.1 in Height: 1160 mm / 45.7 in
Wheelbase: 1630 mm / 64.2 in
Ground Clearance: 125 mm / 4.9 in
Seat Height: 655 mm / 25.8 in (Laden) 680 mm / 26.8 in (Unladen)
Gross Vehicle Weight Rating: 492.2 kg / 1085 lbs
Dry Weight: 288 kg / 634 lbs
Wet Weight: 299 kg / 659 lbs
Fuel Capacity: 13.2 Litres / 3.5 US gal
