Harley-Davidson Harley Davidson Softail Fat Boy 114 (2020) technical specifications

Harley-Davidson Harley Davidson Softail Fat Boy 114 technical specifications

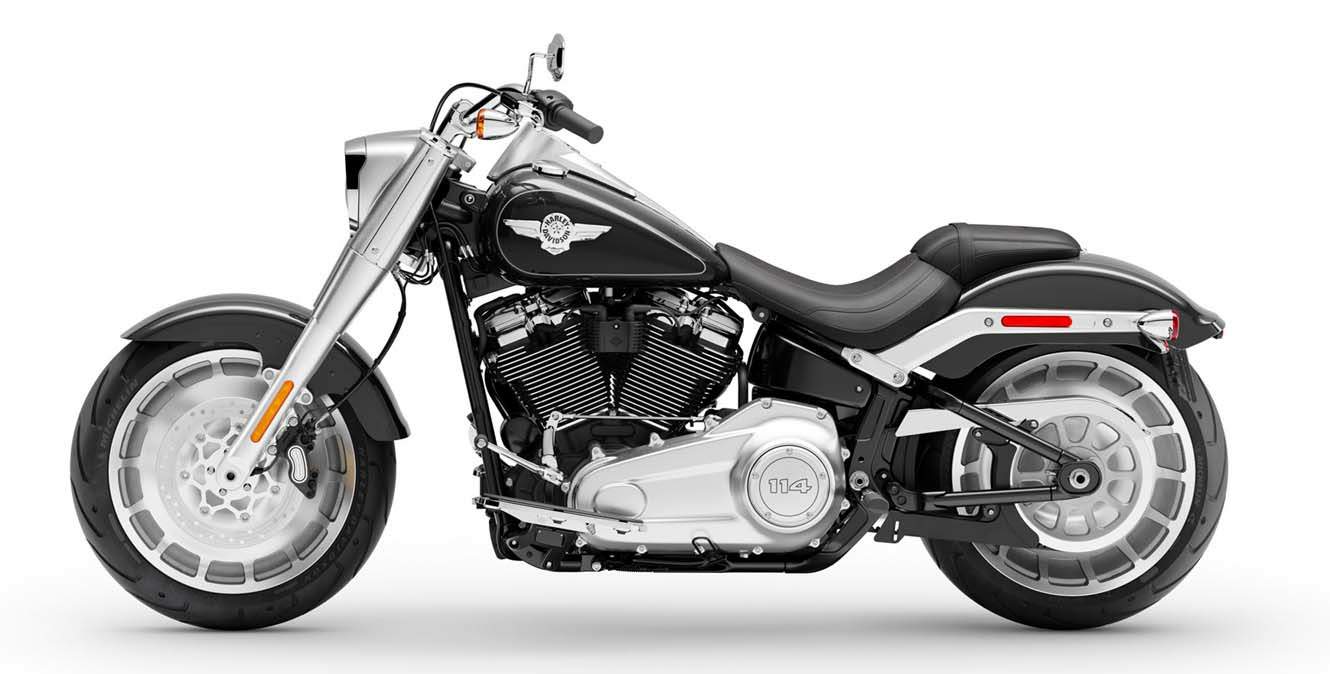

Harley-Davidson Harley Davidson Softail Fat Boy 114 is produced in 2020. Engine is Four stroke, V-Twin, 2 Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1868 cc / 114 cu-in Harley-Davidson Harley Davidson Softail Fat Boy 114 weighs 304 kg kg / 671 lbs. Harley-Davidson Harley Davidson Softail Fat Boy 114 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson Softail Fat Boy 114
Years: 2020
Engine: Four stroke, V-Twin, 2 Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity: 1868 cc / 114 cu-in
Bore x Stroke: 102 x 114.3 mm
Cooling System: Air cooled
Compression Ratio: 10.5:1
Exhaust: 2-into-2 staggered, catalyst in muffler
Induction: Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication: Pressurized, dry-sump with oil cooler
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starting: Electric
Max Torque: 161 Nm / 119 lb-ft @ 3000
Clutch: Mechanical, 10 plate wet, assist & conventional
Transmission: 6 Speed
Primary Drive: Chain, 34/46 ratio
Final Drive: Belt, 32/66 ratio
Gear Ratio: 1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79
Lean Angle, Left: 25.6º
Lean Angle, Right: 25.6º
Frame: Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Swingarm: Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer
Front Suspension: Dual bending valve 49mm telescopic with aluminum fork triple clamps, dual rate spring, "beer can" covers
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Hidden, free piston, coil-over monoshock, 43mm stroke, toolless hydraulic preload adjustment
Rear Wheel Travel: 86 mm / 3.4 in
Front Brakes: 2x 300mm discs, 4 piston fixed caliper
Rear Brakes: Single 292mm disc, 2 piston floating caliper
ABS: Standard
Front Wheel: 18 x 4,5 in
Rear Wheel: 18 x 8.0 in
Front Tyre: 160/60R18,70V,BW
Rear Tyre: 240/40R18,79V,BW
Rake (steering head): 30°
Trail: 104 mm / 4.1 in
Dimensions: Length 2370 mm / 93.3 in Width 985 mm / 38.3 in Height 1095 mm / 43.1 in
Wheelbase: 1655 mm / 65.6 in
Ground Clearance: 115 mm / 4.5 in
Seat Height: Unladen 675 mm / 26.6 in Laden 658 mm / 25.9 in
Dry Weight: 304 kg kg / 671 lbs
Wet Weight: 317 kg / 699 lbs
Fuel Capacity: 18.9 Litres / US 5.0 gal
