Harley-Davidson Harley Davidson Softail Breakout FXSB (2013) technical specifications

Harley-Davidson Harley Davidson Softail Breakout FXSB technical specifications

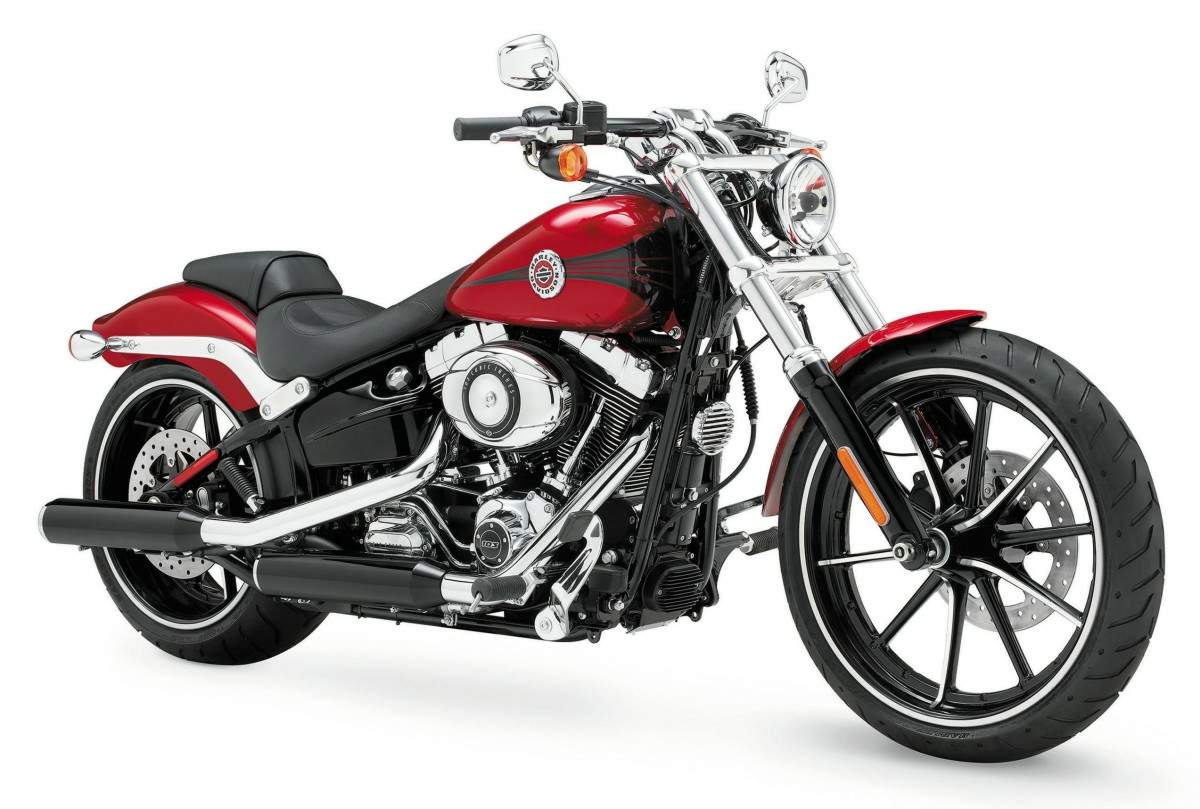

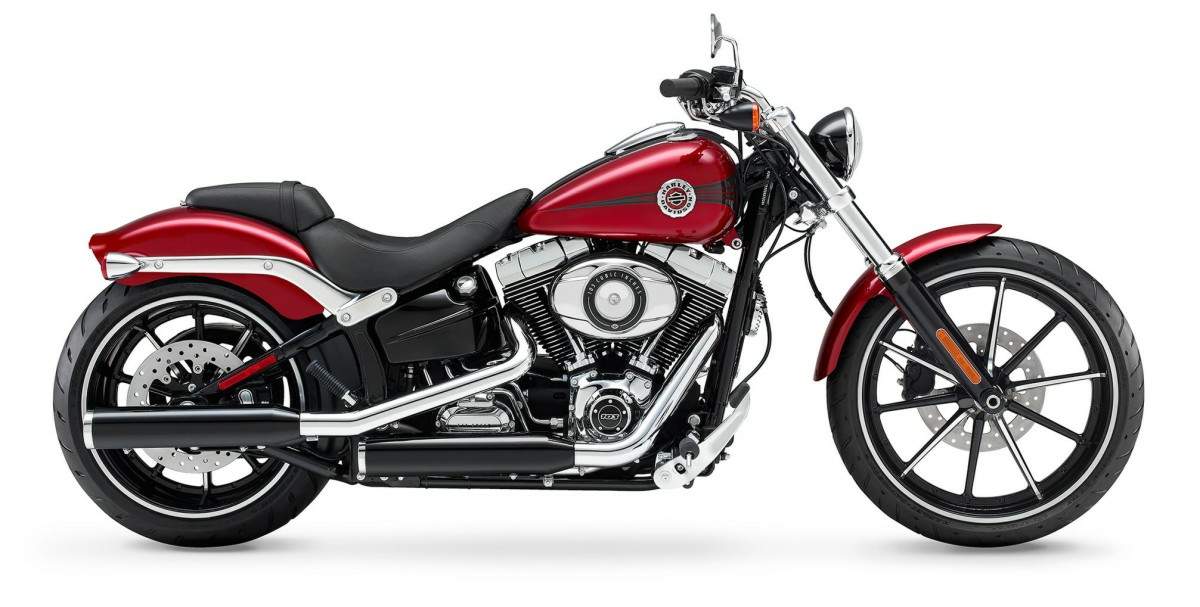

Harley-Davidson Harley Davidson Softail Breakout FXSB is produced in 2013. Engine is Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,, displacement 1690 cc / 103.1 cu in Harley-Davidson Harley Davidson Softail Breakout FXSB weighs 294 kg / 648 lbs. Harley-Davidson Harley Davidson Softail Breakout FXSB has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson Softail Breakout FXSB
Years: 2013
Engine: Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,
Capacity: 1690 cc / 103.1 cu in
Bore x Stroke: 98.4 x 111.1 mm
Cooling System: Air cooled
Compression Ratio: 9.6:1
Induction: Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starting: Electric
Max Torque: 134 Nm / 99.5 lb-ft @ 3000 rpm
Clutch: Multi-plate, wet
Transmission: 6 Speed
Final Drive: Belt
Primary Drive: Chain, 34/46 ratio
Gear Ratio: 1st.311 2nd 6.454 3r d4.793 4th 3.882 5th 3.307 6th 2.79
Frame: Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Suspension: 41.3 mm telescopic, chrome dust covers,
Front Wheel Travel: 143 mm / 5.6 in
Rear Suspension: Hidden, horizontal-mounted, coil-over,
Rear Wheel Travel: 91 mm / 3.6 in
Front Brakes: Single 292mm disc 4 piston caliper
Rear Brakes: Single 292mm disc 2 piston caliper
Front Tyre: 130/60B21 63H
Rear Tyre: 240/40R18 79V
Rake: 35°
Trail: 145 mm / 5.7 in
Dimensions: Length 2445 mm / 96.3 in.
Wheelbase: 1710 mm / 67.3 in
Seat Height: Laden2 2 610 mm / 24 in Unladen 663 mm / 26.1 in
Ground Clearance: 120 mm / 4.7 in
Dry Weight: 294 kg / 648 lbs
Wet Weight: 306 kg / 675 lbs
Oil Capacity: 3.3 Litres / 3.5 qt.
Fuel Capacity: 18.9 Litres / 5.0 US gal
